Chinese Factory Low Price With 100% Qualified Silver Nickel Clad Copper Strip
- Shenzhen Guangzhou HK
- T/T Credit Card PayPal
You May Like
-
Chinese Factory Low Price With High Quality Silver Clad Brass Strip
-
Chinese Factory Low Price With High Quality Silver Brass Bimetal Strip
-
Chinese Factory Low Price With High Quality Silver Inlay Clad Metal Strips
-
Factory Qualified Electronic Accessories Material Overlay Clad Metal Strips
-
Factory Qualified Electronic Accessories Material Copper Clad Silver Strips
-
Factory Qualified Electronic Accessories Material Inlay Silver Strips
Product Details
| Place of Origin | Guangdong, China | Brand Name | INT | |
| Model Number | INS157 |

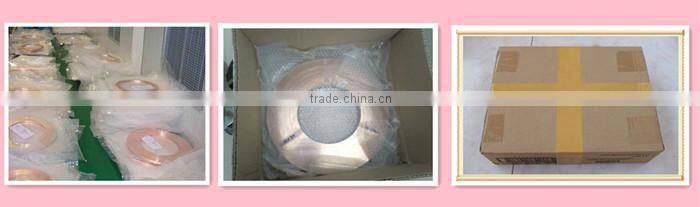

Inner packing :5-20kg per coil packing with vacuum plastic film,
Outside packing: 10-20kg in 50cm*50cm*20cm Carton or 30-50kg in 60cm*60cm*30cm wooden box
Product Description
Specifications
1. 10 years manufacturing,2. full quality guarantee
3. ISO/SGS/ROHS
4. inspection test report
silver nickel clad copper strip/ bimetal strip/silver inlay/onlay/overlay strips
Characteristic:
1. Offer flexibility of material design; being able to produce the electrical contact with high mechanical and electrical contact characteristics
2. Save silver/ precious materials with low prices, as precious metal is only used at electrical contact spots.

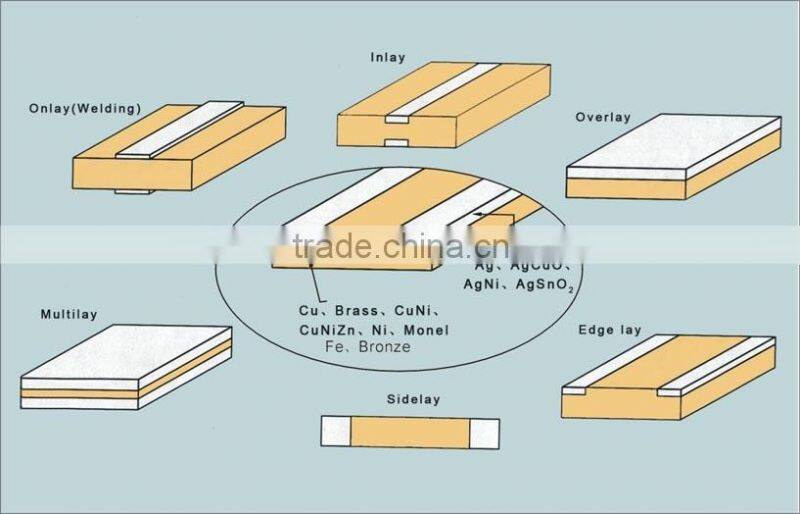

Product Types:
one layer, two layers, three layers,... Inlay
one layer, two layers, three layers... Onlay/toplay
Overlay /coverlay, edgelay,side day
onlay clad metal strips inlay clad metal strips overlay clad metal strips copper clad silver strips
Main Materials:
1.Face material : Ag, AgNi, AgCdO,AgSnO2,AgZnO, AgSnO2In2O3
2.Base material: Cu,brass,Fe, SUS,BeCu,Phosphor copper
| General technological process for inlay strips | ||||
| Order | Process | |||
| 1 | Copper strip slotting | |||
| 2 | Surface treatment | |||
| 3 | Hot composite | |||
| 4 | Diffusion annealing | |||
| 5 | Cleaning | |||
| 6 | Precision rolling, | |||
| 7 | Striping processing | |||
| 8 | Forming to rolls | |||
| 9 | Test and Inspection | |||
| 10 | Packing | |||

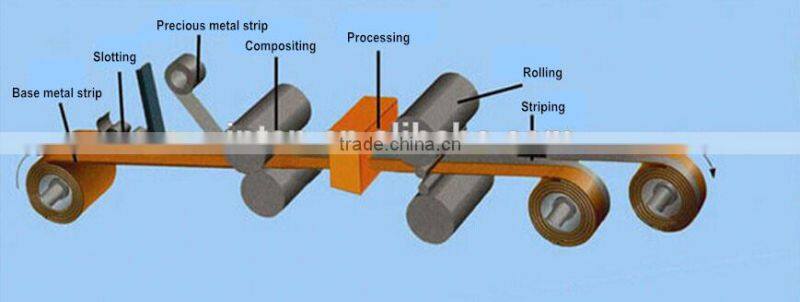

Metal inlay strip Process flow chart
Specification for clad metal strips
All dimensions are according to customers requirements.
Total Width | Silver Width | Total Thickness | Silver Thickness | Total Width Tolerance | Total Thickness Tolerance |
1.5-60 | 1.5-60 | 0.1-0.5 | 0.05-0.3 | ±0.5 | ±0.03 |
1.5-60 | 1.5-60 | 0.6-1.5 | 0.05-1.0 | ±0.1 | ±0..05 |
1.5-60 | 1.5-60 | 1.6-3.0 | 0.05-1.5 | ±0.2 | ±0..08 |

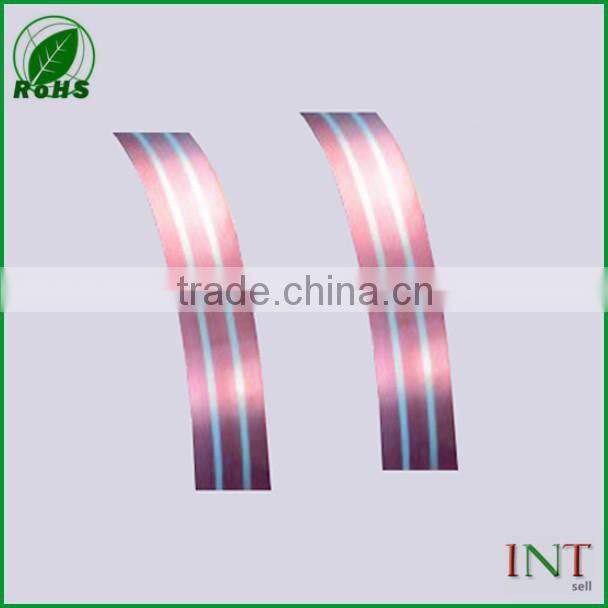

Products Pictures Show:

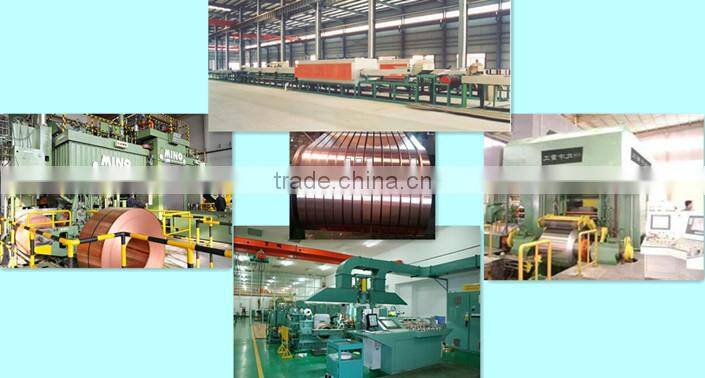

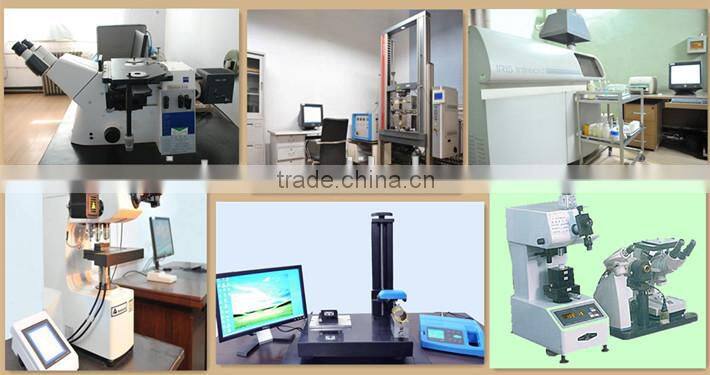

Equipment & Test Equipment:
Germany Hi-precision Roller Machine; Hi-precision Vertical Cutting Machine; Slotting Machine; Ionic Absorption Test System AAS; Light Processor & Metallographic Microscope; Digital Light Processor; Strength Tester; Hardness Tester.
| Payment & Delivery Terms | |||||
| Minimun Qrder Quantity | 50 Kilogram | ||||
| Packing Details | In reel packed with vacuum plastic film, then in carton or wooden box | ||||
| Delivery time | 20 days | ||||
| Payment Terms | T/T, L/C, ESCROW, West Union, MoneyGram | ||||
| Supply Ability | 10 tons per Month | ||||
About shipment
1. By sea, by air, by door to door express (FedEx, UPS, DHL, TNT, EMS).
2. For Air Shipment, Please choose your favorite, shipping method according your detail requirement
3. The shipping discount is different because of different weight and destination, we will choose the cheapest and safest way according to your detailed requirement.
4. Normally, it will take around 3-7days from China to destination country
Company Profile
Dongguan INT Metal Products Factory is located in the biggest fabrication city--Dongguan, 50 minutes to Shenzhen international airport. 10 years experience in manufacturing and trading for Electrical contacts, Rivets, Clad metal strips, Silver wires, copper strips and CNC parts. With a wide range, our products are extensively used in switches, relays, contactors, circuit breakers, thermostats, leakage protectors and other low & middle voltage appliances. We have exported 80% of our products to abroad; our customers are come from all over the world, With the main market is North America and West Europe, ISO9001 certificate is obtained. Dedicated to strict quality control, wonderful after sales service, reasonable prices and stable delivery time, we get full and high reputation and satisfaction among all of our customers. Welcome customers, business partners and friends from all over the world to contact us for seeking mutual benefits cooperation.
