CONCRETE BATCHING PLANT
Negotiable
/ Set
1 Set(Min. Order)
- ANY PORT
- T/T PayPal
You May Like
Product Details
| Condition | New | Production Capacity | 100 m3/h Fixed Concrete Batching Plant ( MES - 100 ) | |
| Place of Origin | Ankara, Turkey | Brand Name | MESAS Muhendislik | |
| Model Number | MES - 100 ( Wet system ) | Voltage | 220V | |
| Power(W) | 18.5-125kw | Dimension(L*W*H) | 2.2*50-4.8*70 | |
| Weight | 47.5 | Certification | CE AND ISO | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

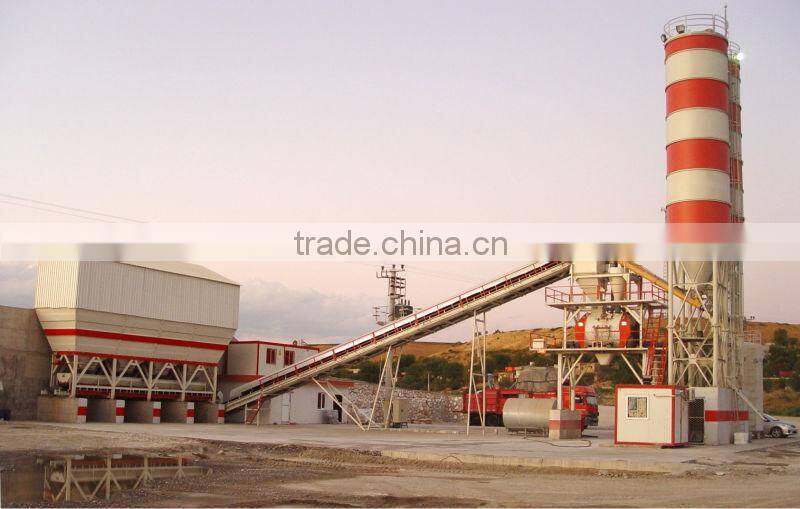

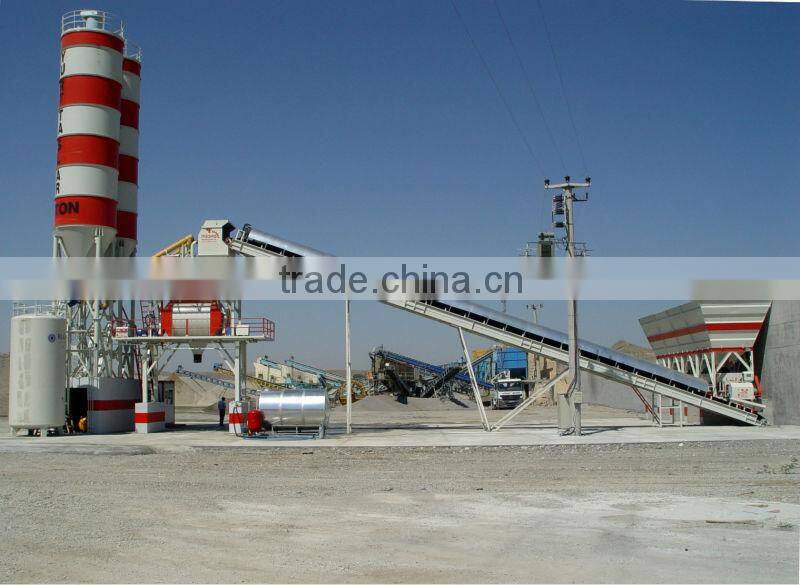

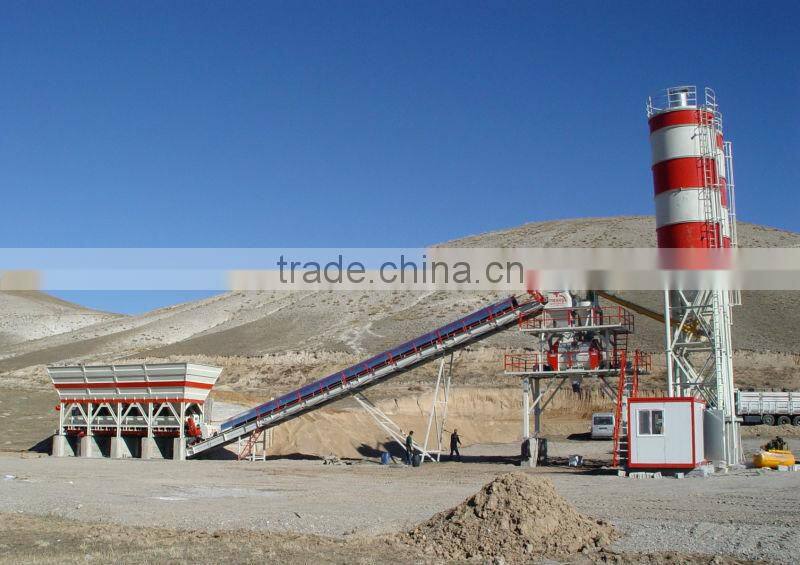

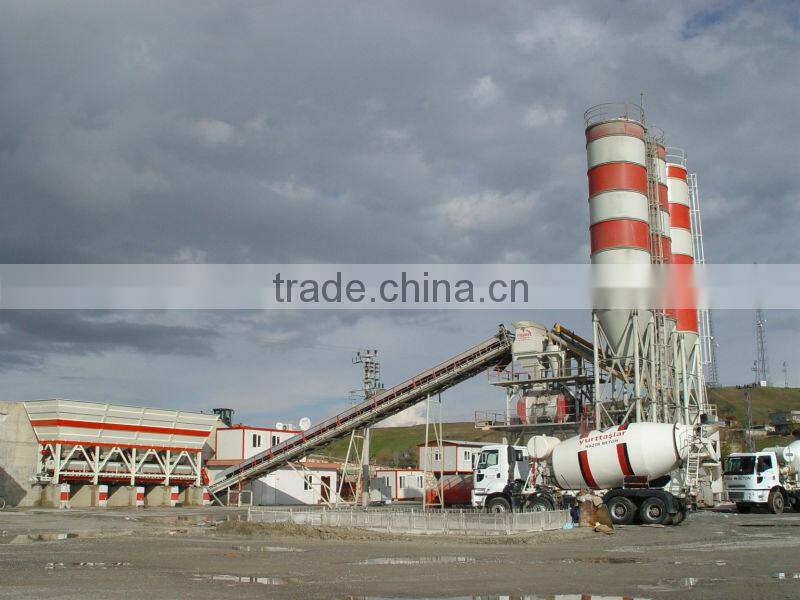

100 m3/h Fixed Concrete Batching Plant ( MES - 100 )

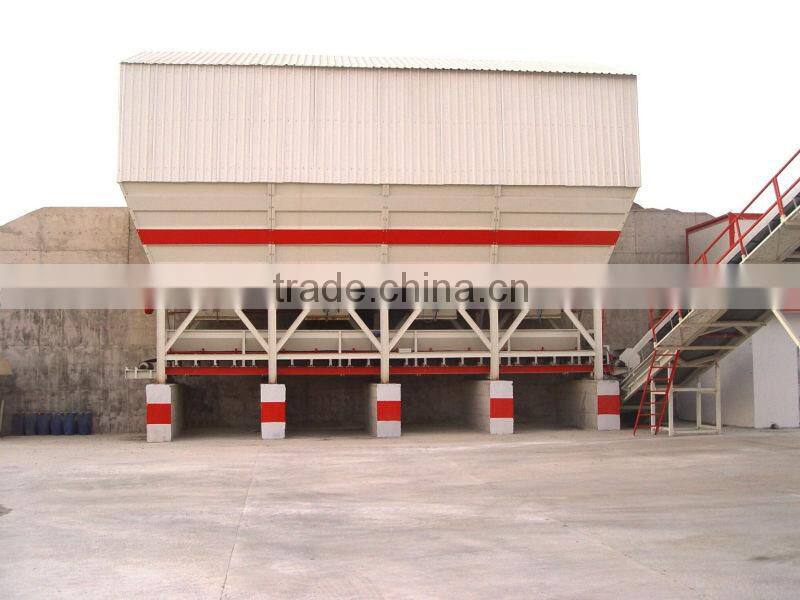

| 120 m3 AGGREGATE BUNKER | |||||||
| Capacity | 4 x 30 m3 = 120 m3 | ||||||
| Discharge Gates | 2 electro-pneumatically controlled gate per compartment | ||||||
| Pneumatic Pistons | 8 units ( FMS ) | ||||||
| Vibrator | 2 unit ( OLI ) | ||||||
| Load cell | 4 units ( ESIT - ZEMIC ) | ||||||
| Air preparation unit | 1 unit | ||||||
| Grid iron over the Bunker | 4 units | ||||||
| Aggregate Weighing Conveyor | |||||||
| Type | 4 - coat linen conveyor rubber and 10 mm ( DERBY - KALE ) | ||||||
| Dimensions | Width=1000 mm Height=12.000 mm | ||||||
| Vibrator | 1 unit ( OLI ) | ||||||
| Electric Motor | 15 kw 1500 rpm ( GAMAK - ELSAN ) | ||||||
| Gear reducer | F55 – dual step | ||||||
| Drums | Drive drum covered with 10 mm rubber | ||||||
| Bearings | SNH series bearings with lubrication greasers | ||||||
| AGGREGATE FEEDING CONVEYOR | |||||||
| Type | 4 - coat linen conveyor rubber and 10 mm ( DERBY - KALE ) | ||||||
| Dimensions | Width=1000 mm Height=28.000 mm | ||||||
| Electric Motor | 22 kw 1500 rpm ( GAMAK - ELSAN ) | ||||||
| Gear reducer | F55 – dual step | ||||||
| Drums | Drive drum covered with 10 mm rubber | ||||||
| Bearings | SNH series bearings with lubrication greasers | ||||||
| Walking Platform | Covered with galvanized plates and one side having traveling platform | ||||||

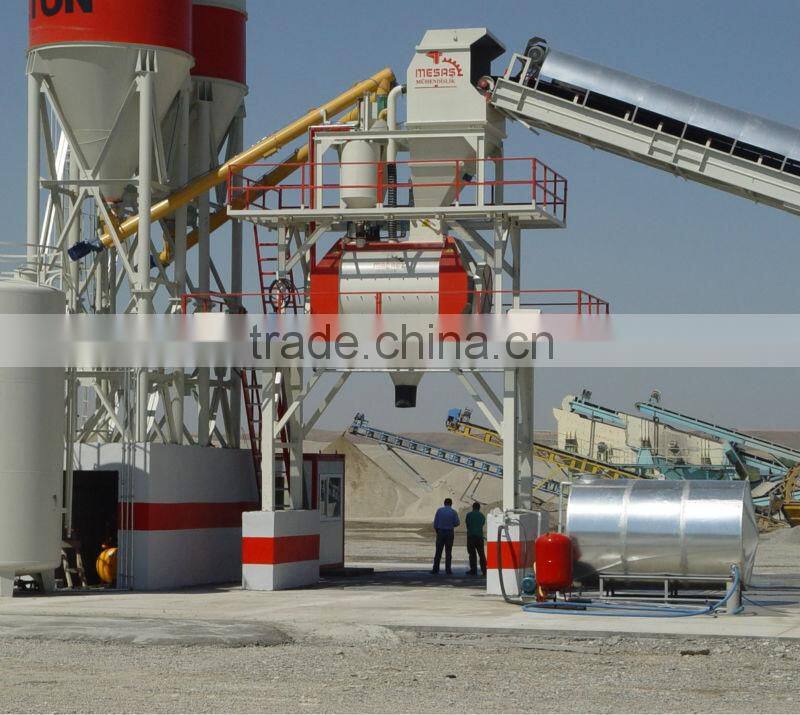

| CONCRETE MIXER ( 2 m³ ) | |||||||
| Origin | TURKEY | ||||||
| Brand | MESAS Engineering ( MES - 2000 ) | ||||||
| Mixer Capacity | 2 m3 | ||||||
| Mixer Type | Single - Shaft | ||||||
| Motors | 2 x 37 Kw ( Gamak - Yilmaz Reducer ) | ||||||
| Mixing Levers type | HELICAL | ||||||
| Rotating Speed | 12-14 rpm | ||||||
| Main body wearing plates | 16-18 double Chrome Coated MANGAN ( 15 mm ) | ||||||
| Mixing arm wearing plates | 16-18 double Chrome Coated MANGAN | ||||||
| Side body wearing plates | Hardox 400 | ||||||
| Discharching type | Pneumatic waste gate | ||||||
| Automatic lubrication system | 1 unit ( ALFETT - LUBRIMAC ) | ||||||
| Safety Sensor | 2 unit | ||||||
| Safety Switch | 1 unit | ||||||
| Cement Weighing Capacity | 1000 kg - With vibrator - Load Cell : 3 x 1000 kg ( ESIT-ZEMIC) | ||||||
| Water Weighing Capacity | 600 Lt -- Load Cell : 1 x 1000 kg ( ESIT - ZEMIC ) | ||||||
| Additive Weighing Capacity | 30 kg -- Load Cell : 1 x 100 kg ( ESIT - ZEMIC ) | ||||||
| Aggregate Waiting Capacity | 2.5 m3 - Sliding valve with pneumatic operated + VIBRATOR | ||||||
| CEMENT SILO | 2 UNIT | ||||||
| Capacity | 100 Ton | ||||||
| Iron plate thickness | 4 - 6 mm | ||||||
| Filling pipe | 4 inch | ||||||
| Spacing Sleeves | 3 mt | ||||||
| Flap Station | 300 SN valve And CM4 Manuel lever ( Wam - Ozbekoglu ) | ||||||
| Equipments Of Cement Silo | |||||||
| Brand | Wam - Ozbekoglu | ||||||
| Equipments | Silo top Filter ( 24 m2 ) | ||||||
| Pressure safety valve | |||||||
| Min-Max Level indicator | |||||||
| Jetpulse-Pressurized air | |||||||
| CEMENT SPIRAL | 2 UNIT | ||||||
| Brand | Wam - Ozbekoglu | ||||||
| Type | Universal Input type ( Wam - Ozbekoglu ) | ||||||
| Dimensions | Q 273 x 6000 mm | ||||||
| Motor | 11 Kw | ||||||
| Capacity | 90 Tons/h | ||||||
| CONCRETE PLANT AUTOMATION | |||||||
| Type | Computer (SCADA) and Touch-screen Controlled | ||||||
| Supplier | SIMKOL AUTOMATION | ||||||
| Technical Properties | The plant is fully automated.The system is controlled on an 8 | ||||||
| coloured touch-screen with PC | |||||||
| The operator is able to set up all parameters , enter receipts and | |||||||
| perform calibration operations on the touch-screen. | |||||||
| The operator may chose between automatic or manuel operations on | |||||||
| the illuminated mimic diagram.Digital indicators enable the operator | |||||||
| to follow voltage and current values on the screen. | |||||||
| All Electrical parts are SIEMENS or Telemecanique branded. | |||||||
| CONTROL CABINET + AIR CONDITIONER | |||||||
| Air Conditioner | 7000 btu | ||||||
| Dimensions | 2400 mm x 4000 mm | ||||||
| Outer wall | 0.5 mm galvanized material,painted | ||||||
| Inner wall | 12 mm laminated chipboard | ||||||
| Side walls | 50 mm polyestrene hard blister,insulated | ||||||
| Ceilling | 80 mm glasswool | ||||||
| Windows | PVC frame and heat insulated double glass | ||||||
| COMPRESSOR | |||||||
| Brand | AYDIN Compressor | ||||||
| By volume | 500 lt | ||||||
| Motor | 5.5 Kw | ||||||
| Flow | 1880 lt/minute | ||||||
| Pistons | 3 unit | ||||||
| Pressure | 8 kg/ cm2 | ||||||
| WATER PUMP AND PRESSURE TANK | |||||||
| Brand | DOMAK Hydrophore | ||||||
| Capacity | 25 m3/h | ||||||
| Motor | 7.5 Kw | ||||||
| Pressure Tank | 300 lt | ||||||
| Working pressure | 4 - 6 bar | ||||||
| |||||||
| Responsibilities of the Consignee | Shipping cost | ||||||
| |||||||
| Assembly for the crew transportation and accommodation expenses | |||||||
| Preparation of concrete needed for concrete plant | |||||||
| provision of anchor plates | |||||||
| Bring electricity to the control cabinet | |||||||
| Water tank for concrete plant | |||||||
| Payment Schedule | %50 After Contract | ||||||
| %50 Before the shipment | |||||||
| Place of Delivery |
| ||||||
| Time of Delivery | READY | ||||||
| Warranty | MESAS plant and all equipment are under warranty for a period of 1 Year following the date of delivery. | ||||||
| Warranty does not include electric motors and corroded parts. | |||||||
