Home > Products > Plastic Conveyor Chains > Straight Welded Link Chain Code 146

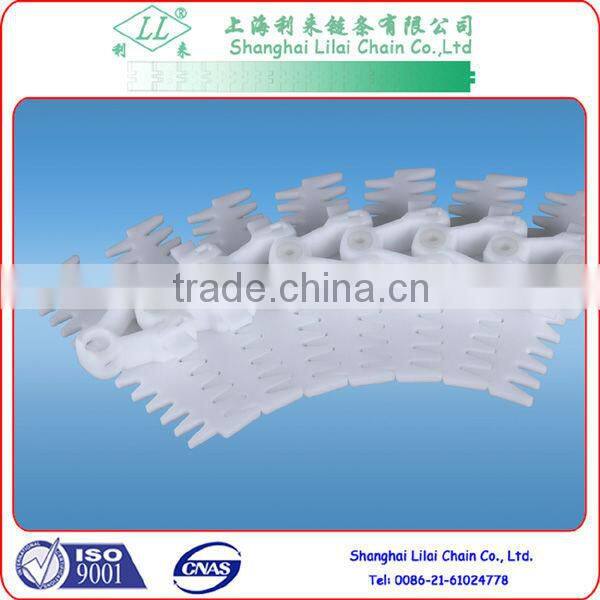

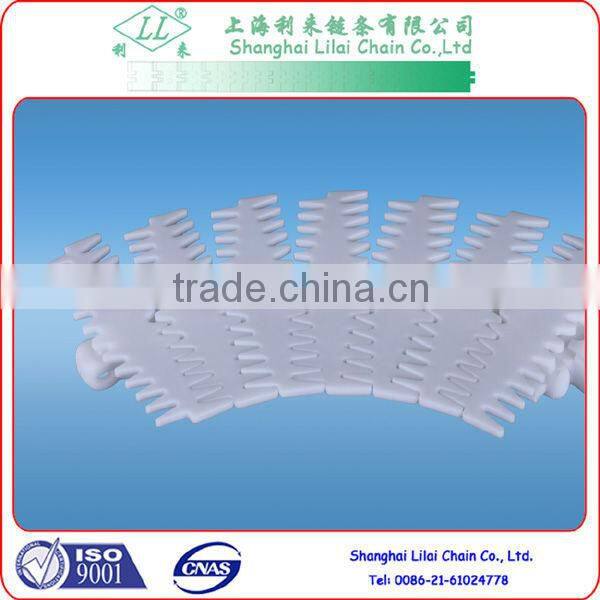

Straight Welded Link Chain Code 146
- Shanghai
 - T/T Credit Card

You May Like
Product Details
| Standard or Nonstandard | Standard | Type | Other, Flexible Chain | |
| Material | Plastic | Tensile Strength | 2100N | |
| Place of Origin | Shanghai, China | Brand Name | LL | |
| Model Number | Code 146 |
Product Description
Specifications
Straight Welded Link Chain Code 146Brand: LL
Material: POM
Color: White
Certificate:ISO9001:2000

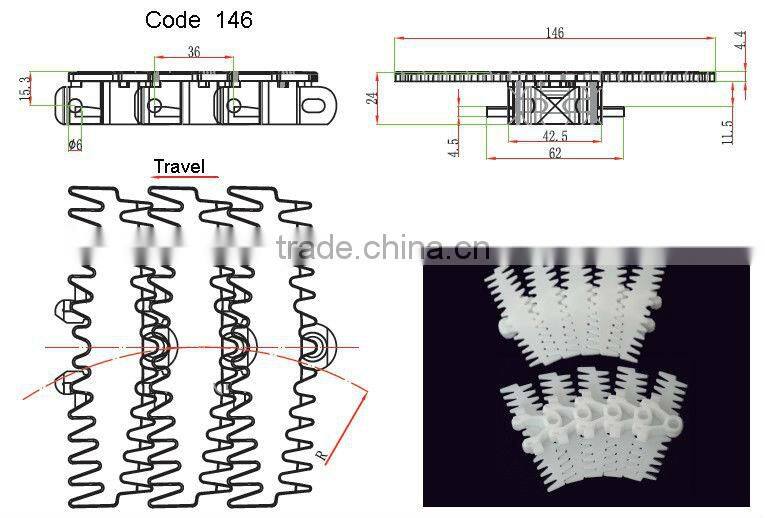

Straight Welded Link Chain Code 146
Mat: POM Max length: 12m
Pin mat: Stainless steel Work temp: -40°c to +90°c
Working load(25°c): 2100N Max speed: 80m/min lubrication, 50m/min dry
Main application: light items transportation and 360°circular transport .
Sideflex radius: 63/83 --R150mm, 103/146--R250mm .

Other Products:

Introduction of our company:
| Shanghai Lilai Chain Co.,LTD | ||||||
| Shanghai Lilai Chain Co., Ltd. specialized in manufacturing conveyor chains, modular belts, sprockets and conveyor components. Since 1998 we have been supplying products to customers in Italy, Germany, Spain, etc. Now we have business all over the world. | ||||||
| Main application: | Food,beverage and Pharmaceutical industry etc,such as transportations of bottles. | |||||
| Certification: | ISO9001:2000 | |||||
| Note: | For the fast results, when requesting a quote: 1.Please inform quantities , material , sketches, drawings, lead time , etc. 2.We will reply you ASAP. 3. If you want to know more , please feel free to contact us.  | |||||
Factory site and workshop:
Exhibitions:
Certification:
Packaging:
• Inner packing :pack in paper box
• Out packing: Cartons or wooden pallet
• Suitable for sea and inland shipment
• As customers request
Payment Terms:
• Loading Port: Shanghai China
• Samples Leading Time: 3-7 days
• Delivery Time: Within 7-15 days after ur payment
• Payment: L/C, T/T, Western Union
After sales service:
• Please contact us in time after you receiving the goods
• Tel: 0086-021-61024778 Fax:0086-021-67613190
