Home > Products > Silicon carbide(SiC) heating elements > High Temperature Industrial Heating Elements(SiC Heating Parters)

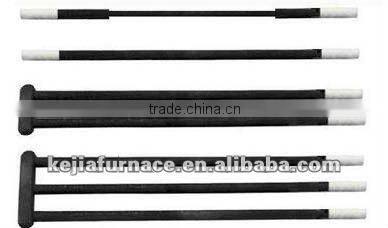

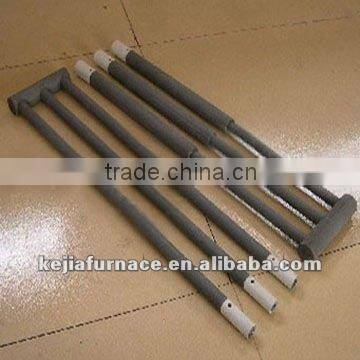

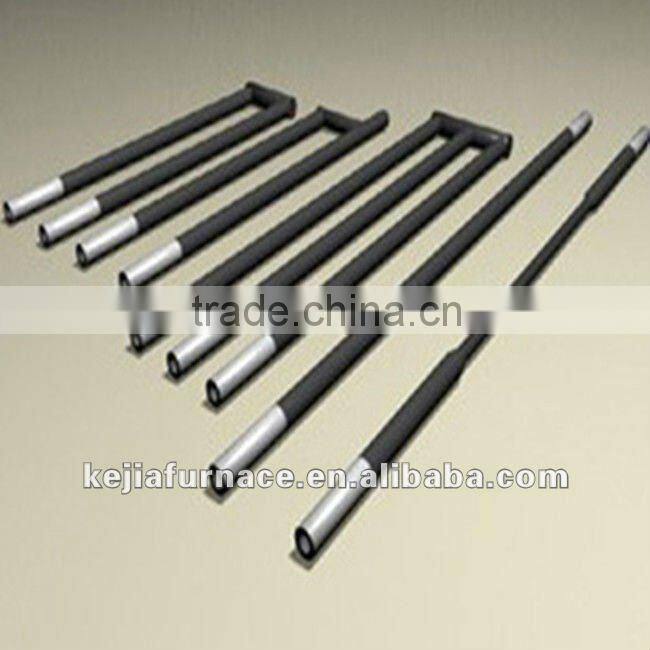

High Temperature Industrial Heating Elements(SiC Heating Parters)
- Zhengzhou Tianjin etc
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Henan, China | Brand Name | Kejia | |
| Model Number | KJ- high temperature industrial elements | Type | Heating Tube | |
| Application | Heater Parts | Certification | CE |
Product Description
Specifications
1. SiC heating element2. Diameter, 8-54mm,
3. Length, 240-4000mm.
4.Withstands as high as 1500C(surface temperature)

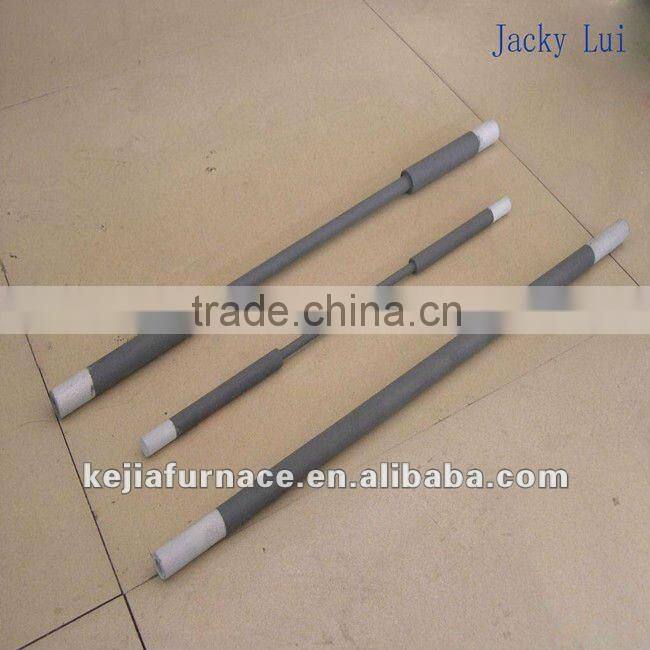

Model: Straight Silicon Carbide rod
Features:
1. Withstands as high as 1500°C (surface temperature),
2. Generates high heat output per unit surface area, approximately 5-10 times than the output of Nichrome wire,
3. High strength and excellent shock resistance,
4. Heat source is free of noise and air pollution.
Descriptions
OD: Outer Diameter;
HZ: Length Of Hot Zone,
CZ: Length Of Cold Zone,
OL: Total Length.
Order Sample
Straight, OD-20mm, HZ-150mm, CZ-100mm, OL-350mm, Resistance-2.24Ω
Specify as: KJ-SiC-Str., 20/150/100/2.24Ω
Specification
Diameter (OD, mm) | Hot zone (HZ, mm) | Cold zone (CZ, mm) | Overall length (OL, mm) | Range of resistance (ohms) |
8 | 100-300 | 60-200 | 240-700 | 2.1-8.6 |
12 | 100-400 | 100-350 | 300-1100 | 0.8-5.8 |
14 | 100-500 | 150-350 | 400-1200 | 0.7-5.6 |
16 | 200-600 | 200-350 | 600-1300 | 0.7-4.4 |
18 | 200-800 | 200-400 | 600-1600 | 0.7-5.8 |
20 | 200-800 | 250-600 | 700-2000 | 0.6-6.0 |
25 | 200-1200 | 250-700 | 700-2600 | 0.4-5.0 |
30 | 300-2000 | 250-800 | 800-3600 | 0.4-4.0 |
35 | 400-2000 | 250-800 | 900-3600 | 0.5-3.6 |
40 | 500-2700 | 250-800 | 1000-4300 | 0.5-3.4 |
45 | 500-3000 | 250-750 | 1000-4500 | 0.3-3.0 |
50 | 600-2500 | 300-750 | 1200-4000 | 0.3-2.5 |
54 | 600-2500 | 300-750 | 1200-4000 | 0.3-3.0 |
Package: Plastic paper inside, Polyfoam filled, Wooden box outside.
Payment: T/T, West union, etc.
Shipping and Delivery: by air/sea, in 15 days after receiving the payment
Warranty: 1 year limited
