Home > Products > Silicon carbide(SiC) heating elements > w SiC Rod/silicon Carbide Heating Element

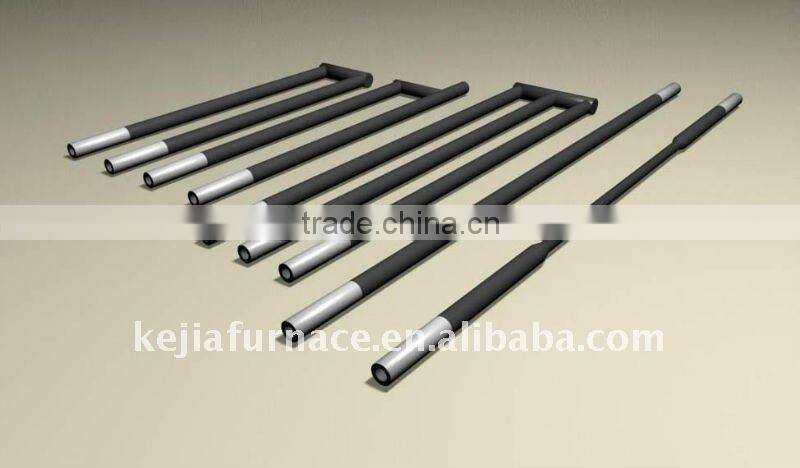

w SiC Rod/silicon Carbide Heating Element
US$ 3 - 300
/ Piece
10 Pieces(Min. Order)
- Chian Port
- T/T D/P D/A Credit Card PayPal
You May Like
-
High Quality and Temperature Double Spiral SiC Rod
-
KJ Single Spiral SiC Rod Heating Element
-
KJ Slot/rotary SiC Rod Heating Element
-
High Quality Plot/U/W/many-bending SiC Rod Heating Element
-
Silicion Carbided Rod Heater Used for Oven Furnaces(1400C)
-
Silicion Carbided Rod Heater Used for Oven Furnaces(1400C)
Product Details
| Place of Origin | Henan, China | Brand Name | KJ-SiC | |
| Model Number | KJ-SiCrod |
Product Description
Specifications
w SiC rod1. high quality
2. competitive price
3. sincere and perfect service
w SiC rod

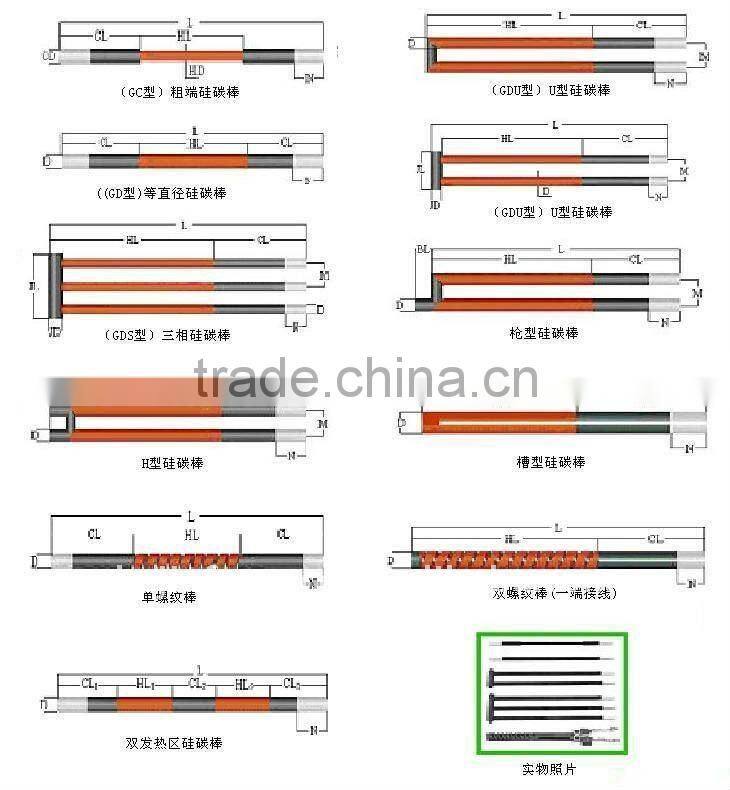

Descriptions
A: Shank Spacing.
Order Sample
1) U Shape, OD-20mm, HZ-300mm, CZ-350mm, OL-650mm, A-60mm, Resistance-2.24Ω
Specify As: KJ-SiC-U, 20/300/350/60/2.24Ω
2) W Shape, OD-16mm, HZ-200mm, CZ-250mm, OL-450mm, A-40mm, Resistance-2.24Ω
Specify As: KJ-SiC-W, 16/200/320/40/2.24Ω
w SiC rod
DescriptionsSilicon carbide heating rod
| Diameter (OD, mm) | Hot zone (HZ, mm) | Cold zone (CZ, mm) | Overall length (OL, mm) | Range of resistance (ohms) |
| 14 | 200 | 250 | 40 | 2.4-4.6 |
| 14 | 250 | 300 | 50 | 3.0-6.0 |
| 14 | 300 | 350 | 60 | 3.6-7.0 |
| 16 | 200 | 250 | 40 | 1.4-2.8 |
| 16 | 250 | 300 | 50 | 1.8-3.6 |
| 16 | 300 | 350 | 60 | 2.0-5.0 |
| 18 | 300 | 350 | 60 | 2.0-5.0 |
| 18 | 400 | 400 | 70 | 2.8-5.8 |
| 18 | 500 | 450 | 75 | 3.6-7.2 |
| 20 | 230 | 300 | 50 | 1.8-3.6 |
| 20 | 300 | 350 | 60 | 2.0-5.0 |
| 20 | 400 | 400 | 70 | 2.8-5.8 |
| 25 | 400 | 400 | 70 | 1.6-3.4 |
| 25 | 500 | 450 | 75 | 2.2-4.4 |
| 25 | 600 | 500 | 80 | 2.6-5.2 |
| 30 | 600 | 400 | 70 | 1.4-2.8 |
| 30 | 700 | 450 | 75 | 1.6-3.2 |
| 30 | 800 | 500 | 80 | 1.8-3.6 |
Welcome to pay close attation to our other furnace: Tube furnaces, (Vacuum) Crucible furnaces, Vacuum Box furnace, Double(Multi) zones Tube furnaces, Multi-position Rotary Tube furnace, Bottom Loading furnace, MoSi2 heating elements, SiC heating elements, etc.
