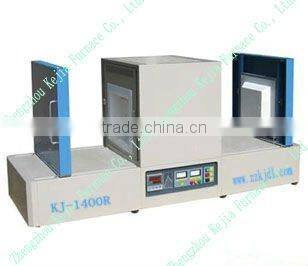

1400C Double Doors Rail Muffle Furnace

FOB Price

US$ 2,000 - 15,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1. KJ-1400R Rail Muffle furnace,
2. Heated by SiC rods,
3. Max. temp., 1400C; Working temp., 1300C.

Model: KJ-1400R Rail Muffle furnace

Size: 250x250x300mm (10”x10”x12”), (WxHxD).

Features:

1. Two doors muffle furnace with sliding rails on each door, which makes load samples easy.

2. Operation Temperature: 1300deg C ( 1400deg C for short time).

3. Maximum energy efficiency is achieved by surrounding the chamber with thermal-efficient alumina fiber ceramic insulation.

4. Heavy duty double layer structure with cooling fan. Lower teperature in outside case.

5. PID automatic control via current limiting phase angle fired the resistor, e.g. SCR(Silicon Controlled Rectifier).

6. Power control with 51 segments programmable.

Descriptions:

Chamber Size (WxHxD)	250x250x300mm (10”x10”x12”)
Working Temperature	1300deg C (continuous)
Maximum Temperature	1400deg C
Temperature Control	51 steps programmable and PID automatic control
Heating Rate	0~15deg C/min (suggestion: ≤10deg C)
Temperature Accuracy	+/-1deg C
Heating Element	Silicon Carbide (SiC)
Working Voltage	AC 220V, Single Phase, 60/50 Hz (or according to your requirement)
Max. Power	5 KW
Outside Size	1800 x 600 x 840 mm
Net Weight	120 Kg

Note: there are different chamber sizes for your choice.

Package: Plastic paper inside, Polyfoam filled, Wooden box outside.

Payment: T/T, West union, etc.

Shipping and Delivery: by air/sea, in 15 days after receiving the payment

Warranty: 1 year limited warranty on all electronic parts.
