Specifications

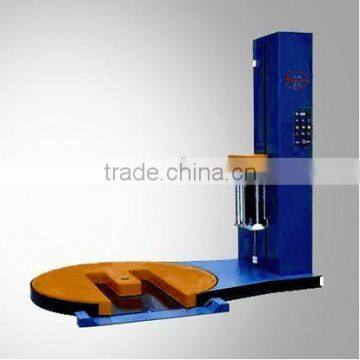

YK-1650FM Turntable Pre-Stretch Pallet Wrapping Machine

( Stretch Wrapping Machine,Pallet Wrapper Machine)

Turntable Pre-Stretch Pallet Wrapping Machine are used to wrap stretch film
around a loaded pallet. Film provides extra support while the products are being
transported & storage to protect them from tip, spill from being damaged.

Additionally, wrapping loads can easily be separated and identified. Stretch
pallet wrapping machine is widely used in chemical industry electronic industry
building materials home appliances papermaking foodstuff & drink etc.

Technology Parameters

      Model                                                 YK-1650FM
      Wrapping Size(L×W)(mm)           (500-1100) ×(500-1200)
      Wrapping Height(mm)L Type:          (800-1800) / H Type:(800-2400)
      Wrapping Efficiency loads/hour)               20-40
      Turntable Speed(rpm/min)                     3 - 12
      Turntable Diameter(mm)                  Φ1650 / H:98
      Turntable Loading(max)(kg)                      1500
      Electrical Requirement                     Single Phase220V/50HZ/20A
      Power(kw)Turntable:               0.75; Film Carriage:0.4; Steel Tower:0.37
      Control System                                           PLC
      Machine Weight(kg)                                   720Kg
      Machine Dimension(mm)L Type:2573×1650×2290 / H Type: 2573×1650×2890
