Pallet Machine, Stretch Wrapping Machine,Stretch Wrap Machine
US$ 2,300 - 2,650
/ Set
1 Set(Min. Order)
- Shanghai
- T/T
You May Like
-
Stretch Wrapping Machine,Pallet Stretch Wrapper Machine,
-
Conveying pallet wrapping machine,pallet stretch wrapping machine,mechanical arm rotary wrap
-
Pallet Stretch Wrapper,Stretch Wrapping Machine,Wrapping Machines
-
stretch pallet wrapper,Manual handle wrapping machine, semi automatic stretch palleting wrapper, stretch wrapping pallet
-
YK2000FZ-PL Pallet Wrapping Machine Stretch Film Pallet Strapping Machine
-
Automatic carton erector
Product Details
| Condition | New | Packaging Material | Plastic | |
| Automatic Grade | Automatic | Driven Type | Mechanical | |
| Place of Origin | Shanghai, China | Brand Name | YUANXU,OEM | |
| Model Number | YK-1650F |
Product Description
Specifications
your pallet sizewrapping height
weight of pallet
need automatic film tail attach & cut
single use or in production line

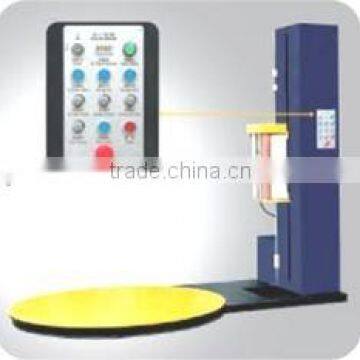

YK-1650F Pallet Stretch Wrapper Machine,Pallet Machine, Stretch Wrapping Machine,Stretch Wrap Machine
Machine Performance:
Control System
OMRON PLC control system
Photo-eye pallet height sensor
0-9 separate top, bottom & up-down wrap count selectors
Photo eye sensing delay
Reinforce wrap allow more wrap on same location
Film Tension Control adjustment on the panel
015RPM variable arm speed by frequency changer
Separate variable carriage up/down speed
Separate start, reset and emergency stop buttons
Manual carriage up/down switch
Turntable
*1650mm Diameter Structural steel plate
*85mm Height (floor to top of turntable)
Turntable Drive
*0-12rpm variable turntable speed by frequency changer
*Position turntable alignment
*works under speed 1.5 kw motor with reduction gearbox, Soft start
Film Carriage System
*Powered pre-stretch system up to 250% to min film consumption
*Carriage door opens for effortless roll change and thread film
*Film delivery variable speed by separate DC Drive Motor
*Electronic film tension control adjustment on panel
*Film dancer-bar with variable speed output
Film carriage Drive
*Heavy duty double-chain carriage lift, calm and safety
*Film carriage variable speed by frequency changer
*Works under 0.23kw motor with reduction gear box
Technical Parameter
Wrapping Size L500~1200mm ×W500~1200mm
Wrapping Height L 1800mm-H 2400mm
Working Capability 20-40 Loads
Turntable Size φ1650mm ,Height 85mm
Loadable Weight max2000Kg
Rotary Speed 0~12rpm
Film Carriage System Pre-stretch Carriage System
Film Material LLDPE FILM Thickness17~35um
Width500mm Core Roller3
Up-down Frame Double Chains, Top Presser
Power/voltage Ac220v,1.5kw
Weight 750kg
