Home > Products > Sealing And Shrinking Wrapping Machine > YK-L5545D+YK-LS5030W full-automatic L-bar sealing shrink wrapping machine&packing machine

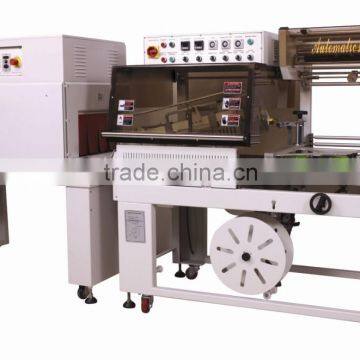

YK-L5545D+YK-LS5030W full-automatic L-bar sealing shrink wrapping machine&packing machine
- shanghai
- T/T
You May Like
-
Adhisive Tape Products Tape Roll zipper roll Automatic Sleeve Sealing Shrink Packing Machine bottle sleeve shrink wrapping
-
Medicine Bottles Tetra Packs Automatic Sleeve Sealing & Shrink Packing Machine
-
Tape Roll caster wheel ball bearing Shrink Sleeve Sealing Packing Machine bottle sleeve
-
Automatic Sleeve Sealing & Shrink Packing Machine for Caster Wheel
-
YK-07/07 Semi-automatic carton sealing machine for food and beverage
-
YK-05 Semi-Automatic carton case sealing machine
Product Details
| Condition | New | Application | Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles | |
| Packaging Type | Film | Packaging Material | Plastic, Wood | |
| Automatic Grade | Automatic | Driven Type | Pneumatic | |
| Voltage | 220/38V | Power | 16KW | |
| Place of Origin | Shanghai, China | Brand Name | Yuanxu | |
| Model Number | FL-5545TBA+SM5030 | Dimension(L*W*H) | 1685*828*1480 | |
| Weight | 500kg | Certification | CE | |
| After-sales Service Provided | No overseas service provided |
Product Description
Features
l Suitable shrink film: PE, POF, PVC;
l Application: Hardware, daily used products, pharmaceutical etc;
l The sealing blade adopts continuous heating system;
l Waste materials treatment system: Coiling method and speed is 16.2m/min.;
l Packaging style: L type sealing makes three side sealing packing;
l The blade retracts while cutting objects;
l The advanced technology of cold cutting reduces the consumption of electrical power;
l Conveyors adopt high frequency step less speed regulation technology.
l Hot air cycling system in the shrinking chamber makes products shrink more compact and beautiful;
l The tunnel conveyor uses frequency inverter to adjust the speed which is much better than the speed controller;
l There is roller type conveyor & Teflon mesh conveyor for your option.
ΔHot Knife sealing system with center sealing
ΔMulti pin perforator wheel for air evacuation
ΔTeflon coated sealing blade
ΔFilm rack-cradle roller style or film cores and shafts
ΔFilm rack side adjustable for perfect alignment of film rack and inverting head
ΔPower film unwind
ΔFilm inverter for inline product feed wutg gabd hweel for product adjustment
ΔOmron digital temperature controller with PID function
ΔSafety shut down switches
ΔAble to pack single or multiple packages
ΔHorizontal and vertical photocell for package detection
ΔSeal head height Max130mm
| MODEL | FL-5545TBA/TBB | FL-6560TBA/TBB | SM-4525 |
| Machine DimensionL*W*H(mm) | 1685*828*1480 | 1940*1000*1480 | 1300*700*1465 |
| Max Packaging size L+H(mm)<130 | <500 | < 600 | 700*350*200 |
| W+H(mm)<130 | < 420 | < 550 | |
| Max sealing size(mm) | 550*450 | 650*600 | / |
| Packing Speed(pcs/min) | 15-25 | 15-25 | 0-15M |
| Net weight(kg) | 225 | 300 | 260 |
| Power(kw) | 2.5 | 3 | 9 |
| Power Supply | 1PH 110/220V 50/60Hz | 1PH 110/220V 50/60Hz | 1PH 110/220V 50/60Hz |
| Air Pressure(kg/cm2) | 6-8 | 6-8 | / |
| Applicable film | POF | POF | POF |
Packing Process for 5545TBA+4525
