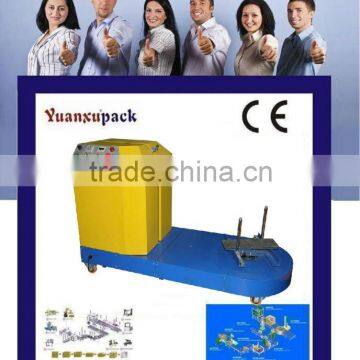

XL-01 Luggage wrapper

Specifications

machinery feature

1. Designation: Baggage wrapper XL-01 is a machine for packing luggage and

baggage at the airports site – passenger terminals or any other transport hubs. It is

designated to increase the security of the luggage during the transportation by

protection against: pilferage, smuggling, damages, accidental openings, dust and

humidity, scratches and any other accidents which can happened during the

movement of the luggage over the conveyer belt system

2. Electrical power supply: 220V ,/50HZ installed power 0,5 ÊW

(single phases).

Recommendations for airport fuse (circuit breaker) power supply: For smooth

operation of the machine during the starting period, a fuse with 100 mA (0.1 A)

protection coil is required (63 Amp or less). Also “Si” type of fuse can be utilized

made in Schneider Electric (Merlin Geren),

3. Material usage: Machine is using a standard type of stretch film packaging

material for creating a hard to tear, resistance, waterproof cover over the baggage.

The film is recyclable. Specifications: wide 50 sm., thickness 20-23 microns, length

1500 meters, weight max 16 kg, stretchable, one side sticky, transparent or colored.

4. Main technical data of the machine:

4.1. Powered pre-stretch mechanism inside (up to250 %), meaning material savings;

4.2. Usage of standard (normal) size of stretch-film material.Most of the

machines of the competitors are using non-standard 76 sm. in wide film, which is not

available on the market.

4.3. Capability to wrap almost any size of luggage in just one step by adjustable metal

pins. Max baggage weight 50 kg, max dimensions of the luggage – 1300 mm to 1300

mm (W/H).

4.4. Entirely automatic functions (auto mode). Also manual mode is available from the

front panel for easy and comprehensive wrapping of non-standard (fragile) items.

4.5 Fast wrapping speed, rotary speed adjustments (0-20r/min), vertical folio

movement speed adjustment, smooth start and soft stop functions.

4.6 Up/Down movement of the film in auto mode, helping for the smooth wrapping of

big suitcases.

machine data

Wrapping size(L*W*H)               400-800mm*180-350mm*300-600mm

Turntable Capability                    20r/min

Turntable Loading                       100kg

Wrapping Effeciancy                    20-40psc/hour

Film carriage                                Pre-stretch

Machine weight                            220kg

Shape dimension                          1320mmL*600mmW*1114mmH

Power/Votage                              0.6kw,AC220V/50HZ

Optional                                      1000mm wrapping height
