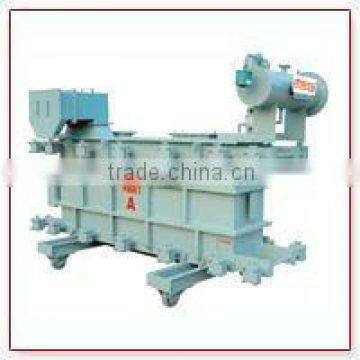

Transformer 1500 KVA
- MUMBAI
- T/T D/P D/A
You May Like
Product Details
Place of Origin | Gujarat, India | Brand Name | PEC | |
Model Number | 2500 KVA | Usage | Power | |
Phase | Three | Coil Structure | Other, LINEAR | |
Coil Number | Other, DOUBLE WOUND |
Product Description
Specifications
Transformer 1500 KVA1.High quality
2.Reasonable price
3.Delivery on time
4.Quality Assurance
- Transformer 1500KVA
- (Epoxy Cast Resin Construction, Dry Type, Oil Cooled) low and medium voltage.
- OIL COOLED DISTRIBUTION TRANSFORMER 800 KVA
- POWER is an ISO 9001:2000, IEC, FGI, DIC , EEPC & NSIC registered company engaged in the manufacture of Industrial Automatic Voltage Controller ranging upto 7000 KVA capacity (U.K. based Brentford type), H.T. Two-in-one Automatic Voltage Controller (with transformer), Distribution transformers 11 KV, 22 KV, 33 KV and 66 KV class, Variable voltage supply (0 – 1000 V, 11000 V, 66000 Volts), Special Purpose Transformers (step up/step down, auto transformers, Ultra Isolation Transformers), Rectifier Equipments from 0-1500 Volts and up to 25,000 Amps. for industrial applications. Technology incorporated in the equipments is the best. We provide you the finest products designed and engineered by the people & professionals who have the experience and expertise in each sphere of activity right from testing, Quality control, MANUFACTURING & DESIGNING OF THESE PRODUCTS FOR LAST 35 YEARS. We have with us the state of art infrastructure with excellent and advanced capabilities to manufacture world-class Equipment with quality standards. We also have a strong and reputed presence in the overseas market and have supplied more than 1500 Nos. AVC/Transformers in the overseas market of various countries viz. U.S.A., South Africa, Kenya, Ghana, Angola, Sri Lanka, Nepal, Abu Dhabi, Nigeria etc.
FITTINGS FOR POWER TRANSFORMER
The following fittings shall be provided on the transformer:
- Monogram plate.
- Rating & diagram plate.
- Earthing terminals – 2 Nos.
- Lifting lugs for complete transformer.
- Thermometer pocket.
- Air release hole with plug.
- Dehydrating breather (1 No.) sillicagel type with oil seal & connecting pipe.
- Prismatic oil level indicator – 1 No.
- Drain valve with plug – 1 No.
- Drain cum bottom filter valve with plug.
- Inspection cover.
- Externally operated off circuit tap changing switch.
- Jacking lugs.
- Under base with flat bi-directional treaded rollers.
- Tank with Radiators.
- Pressure relief valve without electrical contacts.
- Filter valve with plug.
- Sampling valve.
- LV additional neutral- out door bushing – 1 No.
- H.V.TERMINALS: Bare bushing.
- L.V.TERMINALS: Bare bushing / Cable Box.
Power Engineers Company is Manufacturer, Exporter & Supplier of a wide range of electrical equipment. The company was established in 1998 and is owned and managed by Mr. Prem. The company has soared to enviable heights in the domain, under his able leadership. Our range of products includes Power Distribution Transformer, Ultra Isolation Transformer, Special Purpose Transformer, Servo Voltage Stabilizers, Variable Voltage Regulator, and Electroplating Rectifiers.
TECHNICAL PARTICULARS DESCRIPTION | UNIT | PARTICULARS | ||||||||||
Continuous rating | KVA | 100 | 200 | 315 | 500 | 630 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 |
Supply voltage | KV | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 |
Normal voltage ratio at normal tap | KV | 11 / 0.433 | 11 / 0.433 | 11 / 0.433 | 11 / 0.433 | 11 / 0.433 | 11 / 0.433 | 11 / 0.433 | 11 / 0.433 | 11 / 0.433 | 11 / 0.433 | 11 / 0.433 |
BSS vector Group | - | D y n 11 | D y n 11 | D y n 11 | D y n 11 | D y n 11 | D y n 11 | D y n 11 | D y n 11 | D y n 11 | D y n 11 | D y n 11 |
Method of cooling | - | ONAN | ONAN | ONAN | ONAN | ONAN | ONAN | ONAN | ONAN | ONAN | ONAN | ONAN |
Maximum temperature rise at normal loading | Deg. C. | |||||||||||
40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | ||
a) Oil | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |
b) Winding | ||||||||||||
Impulse level | KVp | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
a) 1/50 full wave | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
b) 1/50 chopped wave | ||||||||||||
Max. flux density at normal voltage and frequency | Tesla | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
Max current density | A / mm | |||||||||||
2.95 | 2.95 | 2.8 | 2.8 | 2.8 | 2.8 | 2.8 | 2.8 | 2.8 | 2.8 | 2.8 | ||
a) Primary winding | 2.85 | 2.9 | 2.9 | 2.9 | 2.9 | 2.9 | 2.9 | 2.9 | 2.9 | 2.9 | 2.9 | |
b) Secondary winding | ||||||||||||
Iron loss at normal voltage & tapping | W | 220 | 460 | 650 | 850 | 950 | 1200 | 1250 | 1650 | 2000 | 2300 | 3000 |
Copper loss at rated load & 75 deg. C. | KW | 1.8 | 3.1 | 4.2 | 6.1 | 7.2 | 8.2 | 11.5 | 13 | 19 | 23 | 25.5 |
Magnetizing current % of full load current | % | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
Total oil required | Ltrs | 201 | 276 | 385 | 490 | 610 | 675 | 800 | 900 | 1050 | 1250 | 1500 |
a) Height | 1420 | 1535 | 1650 | 1975 | 1975 | 1975 | 2100 | 2200 | 2200 | 2300 | 2300 | |
b) Length | 1080 | 1235 | 1450 | 1630 | 1630 | 1630 | 1700 | 1700 | 1700 | 1800 | 2000 | |
c) Width | 1055 | 1065 | 1130 | 1560 | 1560 | 1560 | 1700 | 1900 | 2100 | 2500 | 3000 |
- Vision and Mission :Our Vision is to become a technology based Indian Engineering Company & to emerge out as a leading manufacturer in the domestic & international market."It's our mission to strive for synergy between technology, systems and human resources, to produce products and services that meet the quality, performance and price aspirations of our customers. While doing so, we maintain the highest standards of ethics and social responsibilities."
