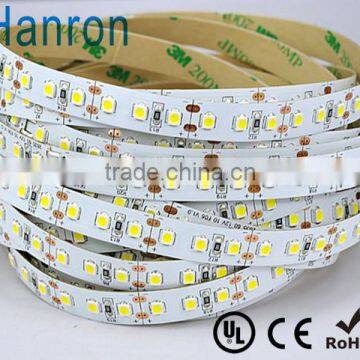

High quality LED Strip lumen DC12V smd 3528 120 leds thin LED flexible strip light lighting
US$ 1 - 10
/ Meter
200 Meters(Min. Order)
- Shenzhen
- T/T
You May Like
-
Waterproof High lumen smd 3528 LED Strip Cold White 120leds LED flexible strip
-
Epistar Cuttable White LED Strip DC24V smd 2835 60leds LED strips lights 5M
-
Chinese manufacture flex led strips suppliers 2835 5meter/rell
-
High quality led strips suppliers bendable smd 3528 60 leds LED rope strips light lighting
-
Best LED Strip light 3014 SMD striplights
-
Hot sale LED Strip 3014 striplighting blue led striplight
Product Details
| LED Light Source | Epistar SMD 3528 LED | Type | Flex LED Strips | |
| Input Voltage(V) | DC12V Lighs Tape LED | Lamp Power | 9.6W Per Meter | |
| Lamp Luminous Flux(lm) | 7-8lm Per LED | Color Temperature(CCT) | 2400K-12000K | |
| Working Temperature(℃) | -40, 50 | Working Lifetime(Hour) | 30000 | |
| Lamp Body Material | Copper | Certification | CE | |
| Emitting Color | White | Place of Origin | Guangdong, China | |
| Brand Name | Hanron Lighting | Model Number | HR00-A12ANW120PA |
Product Description
High quality LED Strip lumen DC12V smd 3528 120 leds thin LED flexible strip light lighting
SMD3528 LED Strip Specification:
| Item NO. | HR00-A12ANW120PA |
| Voltage | 12V |
| Power | 9.6W/Meter |
| Led number | 120leds/Meter |
| CCT | 4000-4500K |
| Color | Nature White |
| IP Grade | IP20 |
| Certificate | CE&RoHS |
| Warranty | 5Year |
Features:
TOP SMD3528 chip, high brightness, wide beam angle, low decay.
Low power consumption, long life span, free maintenance
Easy to install for any bending
Storage temperature:-50℃ - 60℃
Working temperature: -40℃ - 50℃
Certification: CE & RoHs
Application:
- Cove lighting
- Backlight or edge lighting for signage
- Path and contour marking
- Architectural lights for canopy, corridor, window, archway
- Special light effect for art gallery and glass-made items
- Path and contour marking
- DIY lights for home use
Parameter
| Item NO. | Description | Color | Wave Length/C. T. | Luminous Flux/M | Beam | Protect Level | Size |
| Angle | (mm) | ||||||
| HR00-A12AWW120PA | Non-Waterproof SMD3528 120LED/M | WW | 2800-3200K | 900LM±10% | 120° | IP20 | 5000*10*2mm |
| HR00-A12ANW120PA | NW | 4000-4500K | 900LM±10% | ||||
| HR00-A12AW120PA | W | 5500-6500K | 900LM±10% | ||||
| HR00-A12AR120PA | Red | 620-630nm | 272LM±10% | ||||
| HR00-A12AY120PA | Yellow | 585-595nm | 272LM±10% | ||||
| HR00-A12AB120PA | Blue | 465-475nm | 168LM±10% | ||||
| HR00-A12AG120PA | Green | 520-530nm | 484LM±10% | ||||
| HR00-A12DWW120PA | Silicone Waterproof SMD3528 120LED/M | WW | 2800-3200K | 900LM±10% | 120° | IP65 | 5000*10*2.2mm |
| HR00-A12DNW120PA | NW | 4000-4500K | 900LM±10% | ||||
| HR00-A12DW120PA | W | 5500-6500K | 900LM±10% | ||||
| HR00-A12DR120PA | Red | 620-630nm | 272LM±10% | ||||
| HR00-A12DY120PA | Yellow | 585-595nm | 272LM±10% | ||||
| HR00-A12DB120PA | Blue | 465-475nm | 168LM±10% | ||||
| HR00-A12DG120PA | Green | 520-530nm | 484LM±10% | ||||
| HR00-A12EWW120PA | Silicone Tube Waterproof SMD3528 120LED/M | WW | 2800-3200K | 900LM±10% | 120° | IP67 | 5000*10*3.8mm |
| HR00-A12ENW120PA | NW | 4000-4500K | 900LM±10% | ||||
| HR00-A12EW120PA | W | 5500-6500K | 900LM±10% | ||||
| HR00-A12ER120PA | Red | 620-630nm | 272LM±10% | ||||
| HR00-A12EY120PA | Yellow | 585-595nm | 272LM±10% | ||||
| HR00-A12EB120PA | Blue | 465-475nm | 168LM±10% | ||||
| HR00-A12EG120PA | Green | 520-530nm | 484LM±10% | ||||
| HR00-A12FWW120PA | Glue Filling Waterproof SMD3528 120LED/M | WW | 2800-3200K | 900LM±10% | 120° | IP68 | 5000*10*3.8mm |
| HR00-A12FNW120PA | NW | 4000-4500K | 900LM±10% | ||||
| HR00-A12FW120PA | W | 5500-6500K | 900LM±10% | ||||
| HR00-A12FR120PA | Red | 620-630nm | 272LM±10% | ||||
| HR00-A12FY120PA | Yellow | 585-595nm | 272LM±10% | ||||
| HR00-A12FB120PA | Blue | 465-475nm | 168LM±10% | ||||
| HR00-A12FG120PA | Green | 520-530nm | 484LM±10% |
Dimension
Connect Drawing
Installation
1. The black of strip stick with 3M tape. Only need to rive the face paper on 3M tape when use.
2. Stick the strip anywhere 3M tape easy to fix.
3. When install strips, it can be cut at the marks of scissors according to length.
4. Fix the strips with screw of clip lock.
Certificate
Factory Tour 1
Factory Tour 2
Our Advantage
Quality Control
