Home > Products > High Brightness LED Strip > High End LED Light Rope Strip Epistar Blue RGB Smd 3528 120 Led LED Flexible Strip Light Lighting Led
High End LED Light Rope Strip Epistar Blue RGB Smd 3528 120 Led LED Flexible Strip Light Lighting Led
- Shenzhen
 - T/T

You May Like
-


Full Tube Waterproof 12V Smd 2835 Led Strip Light Bar 60led/m for Outdoor
 -


ShenzhenLED Silicone Tube RGB Blue Strip 120 Led SMD3528 Flex Led Strip Tape Light
 -


IP65 Epoxy Waterproof 14.4W/M SMD 2835 LED Flexible Strip Light Tape Rope Ribbon 12V 60led/m
 -


Epistar LED Tape Strip Light Green RGB Smd 3528 120 Led LED Strip Light
 -


Epistar LED Light Strip SMD5050 Led Light Strip Wholesale Flexible Led Strip Light With CE Rohs
 -


Epistar LED Light Strip SMD 2835 Led Light Strip Wholesale Flexible Led Strip Light With CE Rohs

Product Details
| LED Light Source | Epistar SMD 3528 LED | Type | Flex LED Strips | |
| Input Voltage(V) | DC12V LED light strip | Lamp Power | 9.6W Per Meter LED light strip | |
| Lamp Luminous Flux(lm) | 7-8lm Per LED | Color Temperature(CCT) | 465-475nm | |
| Working Temperature(℃) | -40, 50 | Working Lifetime(Hour) | 30000 | |
| Lamp Body Material | Copper | Certification | CE | |
| Emitting Color | Blue | Place of Origin | Guangdong, China | |
| Brand Name | Hanron | Model Number | HR00-A12AB120PA |
Product Description
High end LED rope Strip Epistar Blue RGB smd 3528 120 led LED flexible strip light lighting
SMD3528LED Strip Specification:
| Item NO. | HR00-A12AB120PA |
| Voltage | 12V |
| Power | 9.6W/Meter |
| Led number | 120leds/Meter |
| CCT | 465-475nm |
| Color | Blue |
| IP Grade | IP20 |
| Certificate | CE&RoHS |
| Warranty | 5Year |
Features:
- TOP SMD3528 chip, high brightness, wide beam angle, low decay.
 - Easy to install for any bending
 - Low power consumption, long life span, free maintenance
 - Working temperature: -40℃ - 50℃
 - Storage temperature:-50℃ - 60℃
 - Certification: CE & RoHs

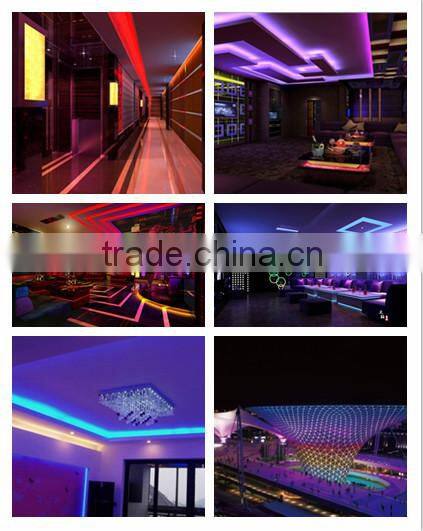

Application:
- Cove lighting
 - Architectural lights for canopy, corridor, window, archway
 - Backlight or edge lighting for signage
 - DIY lights for home use
 - Path and contour marking
 - Decorative lights for holiday, event, show, exhibition
 - Special light effect for art gallery and glass-made items


| Item NO. | Description | Color | Wave Length/C. T. | Luminous Flux/M | Beam | Protect Level | Size |
| Angle | (mm) | ||||||
| HR00-A12AWW120PA | Non-Waterproof SMD3528 120LED/M  | WW | 2800-3200K | 900LM±10% | 120° | IP20 | 5000*10*2mm |
| HR00-A12ANW120PA | NW | 4000-4500K | 900LM±10% | ||||
| HR00-A12AW120PA | W | 5500-6500K | 900LM±10% | ||||
| HR00-A12AR120PA | Red | 620-630nm | 272LM±10% | ||||
| HR00-A12AY120PA | Yellow | 585-595nm | 272LM±10% | ||||
| HR00-A12AB120PA | Blue | 465-475nm | 168LM±10% | ||||
| HR00-A12AG120PA | Green | 520-530nm | 484LM±10% | ||||
| HR00-A12DWW120PA | Silicone Waterproof SMD3528 120LED/M  | WW | 2800-3200K | 900LM±10% | 120° | IP65 | 5000*10*2.2mm |
| HR00-A12DNW120PA | NW | 4000-4500K | 900LM±10% | ||||
| HR00-A12DW120PA | W | 5500-6500K | 900LM±10% | ||||
| HR00-A12DR120PA | Red | 620-630nm | 272LM±10% | ||||
| HR00-A12DY120PA | Yellow | 585-595nm | 272LM±10% | ||||
| HR00-A12DB120PA | Blue | 465-475nm | 168LM±10% | ||||
| HR00-A12DG120PA | Green | 520-530nm | 484LM±10% | ||||
| HR00-A12EWW120PA | Silicone Tube Waterproof SMD3528 120LED/M  | WW | 2800-3200K | 900LM±10% | 120° | IP67 | 5000*10*3.8mm |
| HR00-A12ENW120PA | NW | 4000-4500K | 900LM±10% | ||||
| HR00-A12EW120PA | W | 5500-6500K | 900LM±10% | ||||
| HR00-A12ER120PA | Red | 620-630nm | 272LM±10% | ||||
| HR00-A12EY120PA | Yellow | 585-595nm | 272LM±10% | ||||
| HR00-A12EB120PA | Blue | 465-475nm | 168LM±10% | ||||
| HR00-A12EG120PA | Green | 520-530nm | 484LM±10% | ||||
| HR00-A12FWW120PA | Glue Filling Waterproof SMD3528 120LED/M  | WW | 2800-3200K | 900LM±10% | 120° | IP68 | 5000*10*3.8mm |
| HR00-A12FNW120PA | NW | 4000-4500K | 900LM±10% | ||||
| HR00-A12FW120PA | W | 5500-6500K | 900LM±10% | ||||
| HR00-A12FR120PA | Red | 620-630nm | 272LM±10% | ||||
| HR00-A12FY120PA | Yellow | 585-595nm | 272LM±10% | ||||
| HR00-A12FB120PA | Blue | 465-475nm | 168LM±10% | ||||
| HR00-A12FG120PA | Green | 520-530nm | 484LM±10% |


Installation
1. The black of strip stick with 3M tape. Only need to rive the face paper on 3M tape when use.
2. Stick the strip anywhere 3M tape easy to fix.
3. When install strips, it can be cut at the marks of scissors according to length.
4. Fix the strips with screw of clip lock.
Certificate







Contact Us
                - Shenzhen Hanron Lighting Co., Limited
 - Contact nameIvan Huang Chat Now
 - Phone86-0755-23595836
 - AddressBuilding 1, Hongfa Jiateli High-Tech Park,Shiyan Town, Baoan District, Shenzhen, Guangdong
