A VSI series artificial sand making vertical shaft impact crusher

Specifications

A VSI series artificial sand making vertical shaft impact crusher

 Application
    Vertical shaft impact crusher also know as sand making machine is applied widely for the powder process of mineral product including mental and non-metal ore, fireproof material, bauxite, diamond dust, glass raw materials, architectural materials, artificial sand and all kinds of metal ore materials, especially which has more advantages than any other machines in processing the more and most hard materials.

Features and Benefits
* Simple structure, low cost
* High efficiency and low consumption
* Primary and second crushing capacity
* More and most hard materials can be crushed
* Cubic shaped final product
* Little noise and dust pollution
* Convenient performance, maintenance, installation

Working Principle
The Whole vertical shaft impact crusher including feed hopper, sifter, vortex crushing cavity, the impeller and the bearing, the shaft parts, transmission device and motor etc.

Operating principle is as follows:

  The materials enter the crusher through feeder hopper, which is divided into two parts, one part through the middle of classifier entering into the rotating impeller at high speed, then accelerated, whose speed can reach hundreds of acceleration, then is shot through the tunnels around the impeller by the speed of 60-75 meter/second. First the materials will impact with some materials fallen around classifier, then impact on the whirlpool cavity's scaleboard together, then will be rebounded and impact on the top of the whirlpool cavity, then changes its direction and goes down, forms continual material layers with the materials shot from the impeller. Therefore some materials will be impacted, crusher, milled twice or more times in the whirlpool cavity, then crushed materials will be excluded through the bottom discharging hole. This can from a closed circulation through the circular classifier system; in general, materials can be crushed into 20 mesh through thrice circulation. Airflow self-circulation in the whirlpool cavity can eliminate the dust pollution well.

specification of sand making machine (vertical shaft impact crusher)

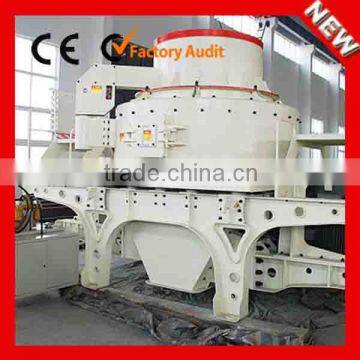

Appearance of sand making machine

sand making machine(vertical shaft impact crusher) used in the sand making plant

After-Sale Service of sand making machine

Erection and Commissioning

Operator Training

Spare Parts Supply

Warranty Terms: More than 12 months

Delivery Time: 20~30 days after receiving advanced payment .

Products Certificate: TUVRheinland CE , ISO9001:2000

Introduction of our company:

  Zhengzhou Zoonyee Mining machinery Co.,Ltd has been specialized in this field of stone crushing equipment for decade years.We have many experts and professional technical personnels.We also do technical communication and cooperation with large construction waste treatment equipment manufacturers in Europe.The company insists to innovate and continues to develop products with international leading technology and independent intellectual property rights.Zoonyee company pays attention to the development of new products and new technology,so far the company has won more than 10 invention patents and new national utility patents.
  Besides expansion on domestic market,our products have also been exported to Canada, Russia, India,Mongolia,South Africa,Central Asia,Western Asia and other countries and regions.
  Our eternal objective is to create the biggest value for our customers.

Our production scope:

Mobile Crusher: portable jaw crusher, portable impact crusher, portable cone crusher, portable construction waste crushing plant

Stone Crusher: jaw crusher, impact crusher, Symons cone crusher, spring cone crusher, sand making machine, hammer crusher, ball mill etc.
Auxiliary equipment: vibrating feeder, vibrating screen, belt conveyor, crawler rock drill
