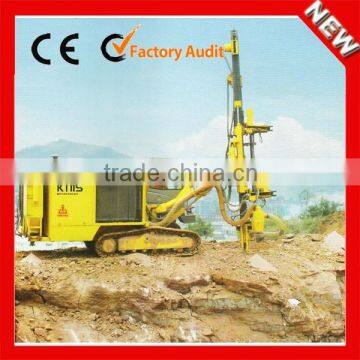

KT11S high wind pressure open-air DTH drill rig

KT11S high wind pressure open-air DTH drill rig

1.Brief introduction of KT11S

   KT11S is a type of high wind pressure open-air DTH drill car,which uses one power to drive the Hydraulic system and the high wind pressure screw compressed system at the same time,with compact structure,high efficiency,automaticly meeting and discharging bar and the cabin air-conditioning and heating, dry dust collection and many other function modules.

   Drill car has the characteristics of good entirety, environmental protection and energy saving,high automation,favourable effect of rock drilling,easy and flexibale operation and safe walking which is widely used in open-pit mine, the quarry, highway, railway, water conservancy, electric power, building and engineering project, deep hole drilling operations and ect.

2.Advantages of New KT11S:

1.  Safety and stability of the mobile mechanism

• low gravity, ground clearance achieved great, make drill car can easily go through bumpy road.

• advanced automatic balance system, make not only drill garage walk stable, and greatly reduced drill

car wallop, guarantee the safe driving.

• high-power motor drive, and their climbing ability, with large traction.

• brakes and walk manipulated mechanism choi linkage mode, use parking brake, thus safeguarding

namely for drilling in slope rock and car driving with stability and security.

• often buy braking street maneuvering valve respectively controlled movement, realized the caterpillar around move forward, backward, and steering, convenient and flexible.
• unique resistance from chain device, which greatly improves the reliability of the drill car.

      2.Centralized control operation

•  drill car design has the advanced hydraulic system and a complete function pneumatic system, all movements are centralized control, convenient operated.

• operating hydraulic maneuvering valve, which can realize the lift, swinging arm drill and drill frame of pitch, angular, translation (back) and crawler adjustment function, guarantee the equality of intersectorial drill hole drilling and drill car stability.
• operating pneumatic maneuverings valve, which can realize oil pump is open and drill car propulsion (increased), slewing, impact and dust collector of dust collection, counter blowing function to guarantee a efficient rock drill car.

      3.Strong propulsion, rotary organization

• propulsion reducer worm-gear, worm transmission, big push pull, and can realize the lock, By adjusting the advanced of the pressure reducing valve pressure, making push pull and push (increased) speed can be arbitrarily regulate according to need.
• Rotary gear reducer, using the planet round transmission, speed, low torque force. By adjusting the rotary valve pressure makes speed and torque according to need to arbitrarily regulate, and to ensure the best DTH drilling efficiency.

       4.Flexible drill arm

• use mobile drilling of arm, by controlling the oil cylinder telescopic can dip and level of drilling hole high-speed height, expanded the scope of drilling, improve the product adaptability.

3.Specification of KT11S Crawler Rig

4.Pictures of KT11S Crawler Rig

 After sale service of KT11S Crawler drill rig

1.more than 12 months' warranty period
2.Erection and Commissioning
3.Operator Training
4.Spare Parts Supply

    Zhengzhou Zoonyee mining machinery Co.,Ltd has been specialized in this field of stone crushing equipment for decade years.We have many experts and professional technical personnels.We also do technical communication and cooperation with large construction waste treatment equipment manufacturers in Europe.The company insists to innovate and continues to develop products with international leading technology and independent intellectual property rights.Zoonyee company pays attention to the development of new products and new technology,so far the company has won more than 10 invention patents and new national utility patents.
   Besides expansion on domestic market,our products have also been exported to Canada, Russia, India,Mongolia,South Africa,Central Asia,Western Asia and other countries and regions.
  Our eternal objective is to create the biggest value for our customers.

Q1. I are not sure whether your production information on alibaba is true,

A: You can click our company website. Our website is

Q2.I are not sure whether the quality of your production is good.

A:Welcome to visit our company. I will lead you to see the process of production in our workshop.

Q3.If I can not use your production, how will I do it?

A: We can send engineers to your site to help you.

Any other questions ,please tell us freely.
