Home > Products > hot airflow type dryer > Professional Sawdust Drying Plant
Professional Sawdust Drying Plant
- any port in China
- T/T D/P D/A Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Henan, China | |
| Brand Name | sanjin | Model Number | QLH series | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Professional Drying Plant
Introduction:
Drying is important before briquetting process. To get the superior quality of biomass briquettes with high density, it is necessary to control the moisture of material at 8-12% exactly. The selection of drying plant models depends on the original moisture content of raw materials.
Wood dryer is suitable for drying materials like sawdust, rice hull, milling wheat straw, and corn stalks and so on.
The moisture of wet materials is at <=50%.
The moisture after drying is at 8%-12%.
Raw materials diameter: <1mm & < 5mm
Advantages:
- Automatic feeder
- Drying strength high
- Little dust
- Heat efficiency high
Unique design:
- The pipe is very thick, long and large diameter.
- Contain with the duster
Note:
Our capacity all are checked and proved. Absolutely accurate.
Technical parameter:
Model | QLH-1 | QLH-2 | QLH-3 | QLH-3-1 | QLH-4 |
Power(kw) | 4 | 7.5 | 7.5 | 18.5 | 18.5 |
Capacity(kg/h) | 200-300 | 400-500 | 600-700 | 800-900 | 900-1000 |
Pipe diameter(mm) | 200 | 300 | 300 | 400 | 400 |
Pipe total length (m) | 16 | 29 | 39 | 41.5 | 51 |
Install length(m) | 9.5 | 15 | 18 | 22 | 25 |
Install width(m) | 2 | 1.8 | 1.8 | 2.5 | 2.5 |
High of duster (m) | 3.3 | 3.3 | 4 | 4.2 | 4.2 |
Feeder size(mm) | 400*500 | 400-500 | 400*500 | 400*500 | 400*500 |
Weight (kg) | 1500 | 1700 | 2000 | 3000 | 3500 |

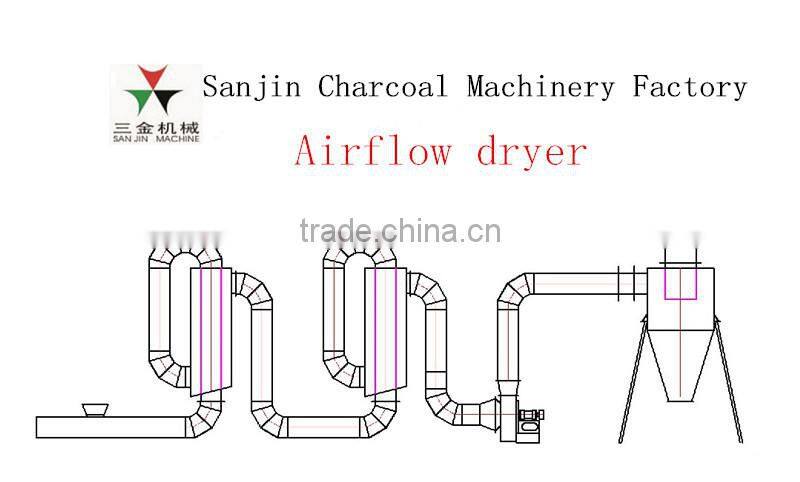

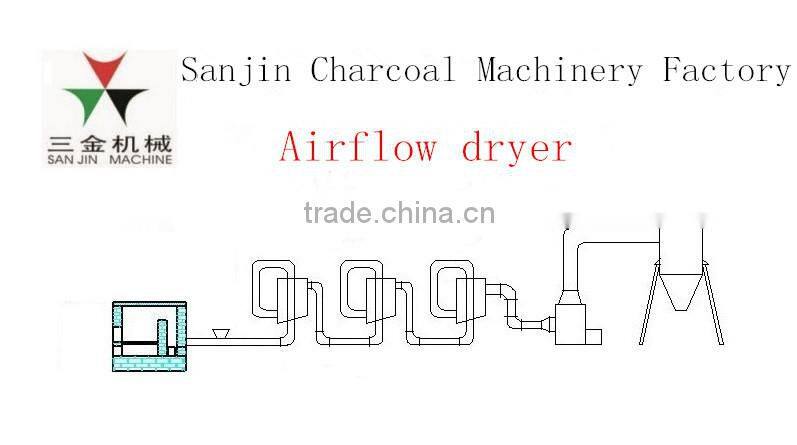

Drying plant:
