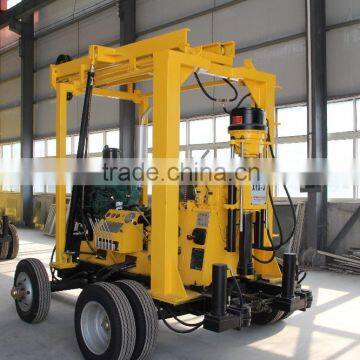

China 600 m depth Good Quality XYX-3 Water Well Drilling Rig Low Price
- 800 Set / Sets per Month
- Shanghai Tianjin Qingdao etc.
- T/T
You May Like
-
New Design 150 m Drilling Depth Good Quality XYX-3 Water Well Drilling Rig for Selling from Zoonyee Manufacture
-
Water Well Drilling Rigs,Used Borehole Drilling Machine for Sale XYX-3 100m, 250m ,350m,600m Deep
-
2016 New Design 200m drilling depth Pneumatic Water Well Drilling Rigs for Sale
-
China mobile hydraulic geotechnical investigation drill rig
-
China Portable Soil investigation drilling rig for sale
-
Good quality trailer mounted water well drilling rig
Product Details
| Condition | New | Type | Rotary Drilling Rig | |
| Power Type | Diesel | Place of Origin | Henan, China | |
| Brand Name | ZOONYEE | Model Number | XYX-3 | |
| Usage | Water Well | Voltage | 380V | |
| Power(W) | 51hp | Dimension(L*W*H) | 4.5*2*2.8m | |
| Weight | 4500kg | Certification | CE, ISO9001:2000 | |
| Warranty | 15Months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
China 600 m depth Good Quality XYX-3 Water Well Drilling Rig Low Price
1. 600m water well drilling rig
2. wheel mounted .
3. portable hydraulic controlled rig
4. training free
Drilling depth | m | 100 | 250 | 300 | 600 | ||||||
Drilling DI | mm | 300 | 200 | 150 | 75 | ||||||
Open hole DI | mm | 300 | |||||||||
End hole DI | mm | 75 | |||||||||
Drilling rod | mm | Φ60 | |||||||||
Drilling angle |
| 90°-65° | |||||||||
Rotary Spindle | |||||||||||
Spindle forward speed | r/min | 30-1050 | |||||||||
Spindle reverse speed | r/min | 29-137 | |||||||||
Spindle stroke | mm | 560 | |||||||||
Spindle inner diameter | mm | 96 | |||||||||
Spindle lifting capacity | KN | 60 | |||||||||
Main Winch ( drive hydraulic system) | |||||||||||
Single line lifting speed | m/min | 0-45 | |||||||||
Hug floodgate belt width | mm | 90 | |||||||||
Tightrope diameter | mm | 14 | |||||||||
Hoist single line lifting capacity | KN | 40 | |||||||||
Roller diameter | mm | 200 | |||||||||
Roller cubic measure | m | 30 | |||||||||
Mud pump | |||||||||||
Horizontal Triplex BW-200 mud pump | |||||||||||
Displacement | L/min | 200 | |||||||||
Work pressure | Mpa | 4-6 | |||||||||
Water inlet caliber | mm | 65 | |||||||||
Water to exit caliber | mm | 37 | |||||||||
Gear Oil pump | |||||||||||
Duplex gear oil pump CBF-F63/25 | |||||||||||
Front displacement,pressure |
| 63mL/r 20Mpa | |||||||||
Behind displacement,pressure |
| 25mL/r 20Mpa | |||||||||
Drilling rig Power | |||||||||||
Diesel engine | Hp | 4100# 50HP | |||||||||
Electric motor | KW | Y180L-4 22KW | |||||||||
Pre-sale support
Select equipment model;
Design and manufacture products according to clients' special requirement;
Train technical personnel for clients.
Services during the sale
Pre-check and accept products ahead of delivery;
help clients to draft solving plans.
After-sales service support
After we signed the purchase contract and have a certain reputation guarantee, we will contact the professional group that responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the perfect goods trading services, until the product you purchased properly to your hands.
We will send a professional and high levels installation engineer team at the same time the product properly to the destination, in order to supply you a full range of products installation services. For some typical problems, our rigorous installed engineers also will do some certain installation debugging training, etc.
About Us
Zhengzhou Zoonyee Mining Machinery Co., Ltd are specialized in the research, production and sale of mining crushing equipment,sand making equipment and constuction waste recycling equipment.
Our company always committed to providing the highgrade aggregate solution and advanced compete equipment for highway, railway, water and electricity engineering project.
Photo of our factory
Crushers: jaw crusher, cone crusher, impact crusher,hammer crusher etc.
Sand-making machine: VSI crusher, PCL crusher, PL crusher;
Accessory equipment: vibrating feeder, vibrating screen, belt conveyors,
Stone crushing plant: from 50 -500t/h;
Sand production line: from 50 -500t/h;
Mobile crushing plant: from 50-200t/h;
Mobile Construction waste recycling plant 50-200t/h:
Q1. I m not sure whether your production information on alibaba is true,
A: You can click our company website. Our website is
Q2.I m not sure whether the quality of your production is good.
A:Welcome to visit our company. I will lead you to see the process of production in our workshop.
Any questions please contact us freely.
