Home > Products > Feeder & Screen & Conveyor > YK Series Circular Stone Vibrating Screen Machine For Sale

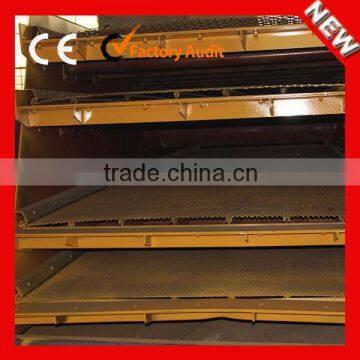

YK Series Circular Stone Vibrating Screen Machine For Sale
- 50 Unit / Units per Month
- Qingdao China
- T/T
You May Like
-
China Leading Best Quality Vibrating Feeder ZSW-420X110 Factory
-
New Design Rock Vibrating Feeder Machinery ZSW490*96 Supplier
-
High Quality GZG Series Stone Vibrating Feeder Machinery Factory
-
China Best GZT Series Small Vibrating Feeder For Sale
-
ZSW Series Different Vibrating Feeder Model With Best Price
-
China High Efficiency Durable Small Vibrating Crusher Feeder
Product Details
| Condition | New | Type | Circular | |
| Application | Other, screening equipment | Place of Origin | Henan, China | |
| Brand Name | ZOONYEE | Model Number | 4YK1545 | |
| Power(W) | 18.5kw | Certification | ISO | |
| Warranty | more than 12 months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
YK Series Circular Stone Vibrating Screen Machine For SaleISO certificated
Large capacity,strong excitation force,cheap price
YK Series Circular Stone Vibrating Screen Machine For Sale
Brief Introduction of Stone Vibrating Screen
Circular Stone Vibrating Screen is a new type screening equipment, and the vibration trajectory is ellipse. It has the advantages of advanced structures, strong excitation, and it is also used for coal, beneficiation, building material, and chemical. The vibrating screen is advanced structure, strong excitation force, low vibration noise, and easy maintenance, etc. The capacity of the vibrating screen produced by our company can reach the national standard, and the equipment has high reputation from customers.
Features of Stone Vibrating Screen
1. High exciting force, produced by eccentric block (YK Series) or eccentric shaft (YA Series);
2. The sieve beam and sieve box adopt the high strength spiral, simple structure, easy maintenance;
3. Adopt coupling with rubber type element and flexible connection, it can be operated smoothly;
4. Large capacity, long service life, low power consumption and low noise.
Technical Parameters of Stone Vibrating Screen
Model | Layers | Sieve obliquity (°C) | Sieve area(m2) | Vibrating frequency(r/min) | Double amplitude(mm) | Capacity(m3/h) | Power(kw) |
2YK1224 | 2 | 15 | 2.88 | 970 | 6-8 | 20-120 | 5.5 |
2YK1235 | 2 | 15 | 4.2 | 970 | 6-8 | 20-150 | 5.5 |
| 3YK1235 | 3 | 15 | 4.2 | 970 | 6-8 | 20-150 | 7.5 |
| 4YK1235 | 4 | 15 | 4.2 | 970 | 6-8 | 20-150 | 11 |
| YK1545 | 1 | 15 | 6.75 | 970 | 6-8 | 20-150 | 11 |
| 2 YK1545 | 2 | 17.5 | 6.75 | 970 | 6-8 | 22-150 | 15 |
| 3 YK1545 | 3 | 17.5 | 6.75 | 970 | 6-8 | 22-150 | 15 |
| 4 YK1545 | 4 | 17.5 | 6.75 | 970 | 6-8 | 22-150 | 18.5 |
| YK1848 | 1 | 20 | 8.64 | 970 | 6-8 | 56-330 | 15 |
| 2 YK1848 | 2 | 20 | 8.64 | 970 | 6-8 | 56-330 | 15 |
| 3 YK1848 | 3 | 20 | 8.64 | 970 | 6-8 | 56-330 | 15 |
4 YK1848 | 4 | 20 | 8.64 | 970 | 6-8 | 56-330 | 22 |
YK1854 | 1 | 20 | 9.7 | 970 | 6-8 | 50-400 | 18.5 |
2 YK1854 | 2 | 20 | 9.7 | 970 | 6-8 | 50-400 | 18.5 |
3 YK1854 | 3 | 20 | 9.7 | 970 | 6-8 | 50-400 | 22 |
4 YK1854 | 4 | 20 | 9.7 | 970 | 6-8 | 50-400 | 30 |
| YK1860 | 1 | 20 | 10.8 | 970 | 6-8 | 32-350 | 15 |
| 2YK1860 | 2 | 20 | 10.8 | 970 | 6-8 | 32-350 | 18.5 |
| 3 YK1860 | 3 | 20 | 10.8 | 970 | 6-8 | 32-350 | 18.5 |
| 4 YK1860 | 4 | 20 | 10.8 | 970 | 6-8 | 32-350 | 22 |
| YK2160 | 1 | 20 | 12.6 | 970 | 6-8 | 66-720 | 18.5 |
| 2YK2160 | 2 | 20 | 12.6 | 970 | 6-8 | 66-720 | 22 |
| 3 YK2160 | 3 | 20 | 12.6 | 970 | 6-8 | 66-720 | 30 |
| 4 YK2160 | 4 | 20 | 12.6 | 970 | 6-8 | 66-720 | 30 |
| YK2460 | 1 | 20 | 14.4 | 740 | 6-8 | 75-750 | 22 |
| 2 YK2460 | 2 | 20 | 14.4 | 740 | 6-8 | 75-750 | 30 |
| 3 YK2460 | 3 | 20 | 14.4 | 740 | 6-8 | 75-750 | 30 |
| 4 YK2460 | 4 | 20 | 14.4 | 740 | 6-8 | 75-750 | 30 |
| YK3060 | 1 | 20 | 17.4 | 740 | 6-8 | 200-900 | 30 |
| 2 YK3060 | 2 | 20 | 17.4 | 740 | 6-8 | 200-900 | 37 |
| 3 YK3060 | 3 | 20 | 17.4 | 740 | 6-8 | 200-900 | 45 |
| 4 YK3060 | 4 | 20 | 17.4 | 740 | 6-8 | 200-900 | 45 |
