LL Type Aluminum 1060, Wound Steel Tube, Spiral Fin Tube, Application Heat Exchange

Air cooler pipe, LL type aluminum 1060, wound steel tube, spiral fin tube, application heat exchange

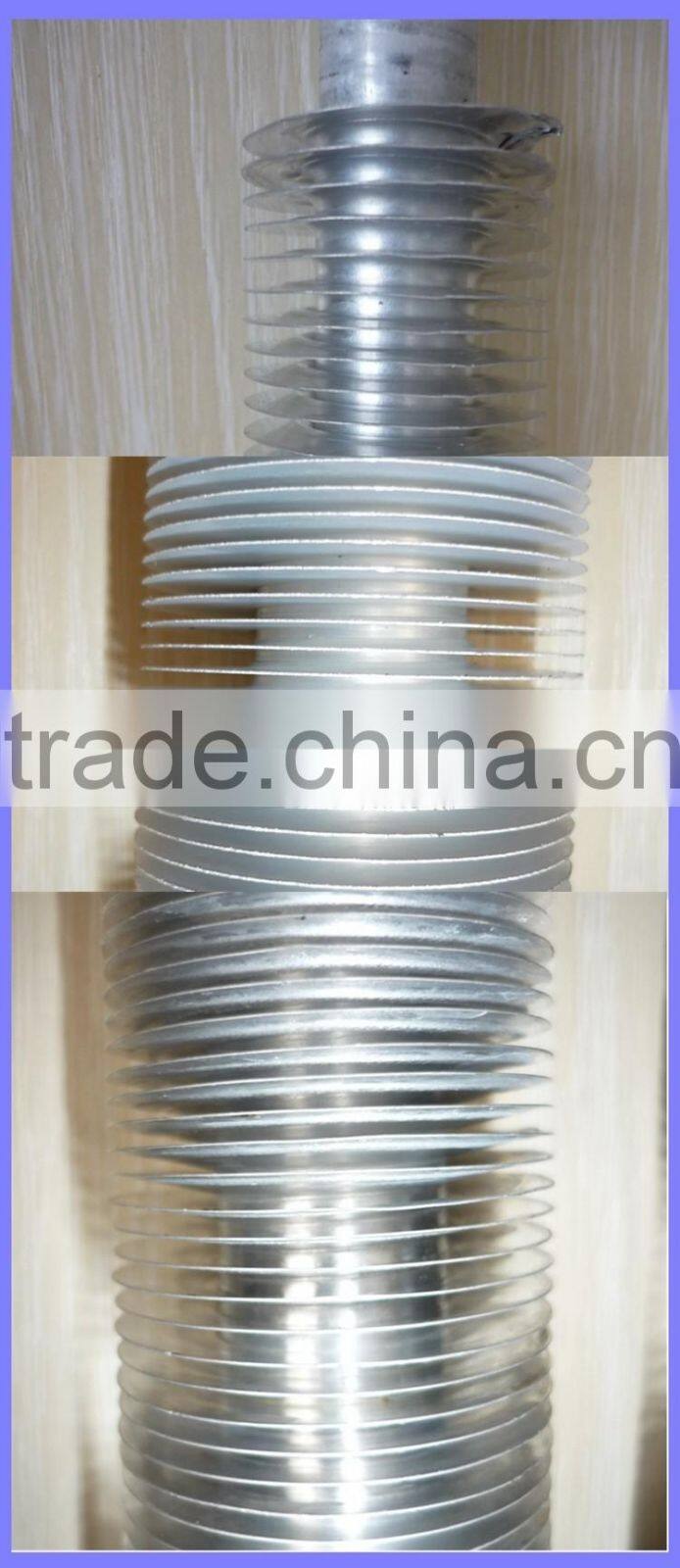

LL-type finned tube
LL-type finned tube makes the trapezoidal cross-section forming by rolling combine closely with the heat flux density distribution size. The fins combine tightly with the tube,which makes the thermal efficiency higher and put an end to thermal resistance that brings by the non eliminate contact from segment gap of the string type finned tube.
Working temperature: 230 ℃
1 Features:
The winding technology improves production efficiency and heat transfer, makes the average fin pitch and higher proportion between fins and tube. At the same time, the base tube can be protected from air erosion.
2 Application:
LL-type finned tube mainly used in petrochemical, electric power, paper making, tobacco, building heating and other industry such as air cooler, air heater and air heater of food industry, plant starch spray drying system.

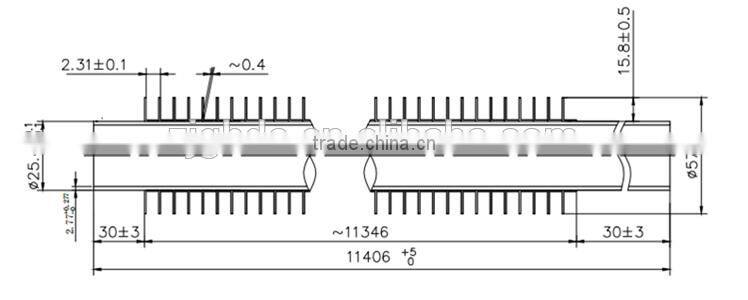

One Of Reference Drawing

BARE TUBE

MATERIAL

FIN TUBE

MATERIAL

BARE TUBE

DIAMETER

(MM)

CARBON STEEL

COPPER,STAINLESS STEEL,ALLOY

Protection from compressional deformation for Fin Tube itself

Dimension:5mm(Thick)*100mm(Width)

For packing wall

8mm(Thick)

For packing frame

2.7mm(Thick)*80mm(Width)*40mm(Height)

2.7mm(Thick)*30mm(Width)*60mm(Height)

    Zhangjiagang Bedel Heat Exchanger Equipment Technology Co., Ltd. is located in Yangtze River Delta, bordering the international metropolis Shanghai in the east, transportation here is very convenient. Shanghai port, Zhangjiagang port and Changshu port offer us an easy way of exporting worldwide.

     Our company is a professional manufacturer of various fin tubes for air cooler and heat exchanger and also provides heat exchanger equipments & parts and technical solutions.We have established long-term cooperation with the Taiwan Fengding industrial Co., Ltd.,and Hangzhou Boiler Group Co., Ltd. and we have maintained a stable and cooperative relations with many companies. Some products export Southeast Asia, Middle East, South America and North America etc. Our products are widely used in Sinopec, Petrochina, CNOOC, electric power, metallurgy and other industries. Due to the high quality of our products, fast and punctual delivery, reasonable price and good after-sales service, our company has acquired the recognition of the industry and the trust of our clients.

    Our company has passed the ISO9001:2008 Quality System Certification with advanced equipments, strong R&D strength, professional skill, perfect quality guarantee system and strict test.

    With our excellent team, we will always do our best to provide clients with the highest quality, most competitive products and first-class services. To satisfy clients' requirements will always be our goals!

Q1:Are you a factory or trade company?
A1: A Factory and A subsidiary international trade company for export.

Q2: What can you provide?
A2: Our company is a professional manufacturer for Radiator and  Heat Exchanger Equipment and various Fin Tubes.

Q3:Where is your factory?
A3:Our company’s processing center is located in Zhangjiagang city, Suzhou, Jiangsu province, China, which is well equipped with kinds of machines.

Q4: How do you control quality?
A4: Inspection & Guarantee Certificate is supplied with shipment, and the Third Party Inspection is available.

Q5: What are the advantages of your company?
A5: We have many professional and technical personnel, more competitive prices and  better after-dales service than other companies.

Q6: Can you arrange the shipment?
A6: Sure, we can help you with the shipment.
      We have forwarders who have cooperated with us for many years.

Q7: How about the delivery time?
A7: It is based on the order, normally within 30 days after receiving your advance payment.

Q8: Can you provide sample?
A8: Small samples in store can be provided for free.
