Home > Products > Yagi Antenna > High Quality Reasonable Price Big Directional Yagi Antenna
High Quality Reasonable Price Big Directional Yagi Antenna
- SHANGHAI
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | jiashan JINCHANG | |
| Model Number | JCY-2400-16 |
Product Description
Specifications
Size: 590*88*44mmFrequency: 2400-2483MHz
Gain: 16dBi
Connector: SMA female or others
High Gain
Quick Details
- Place of Origin: Zhejiang, China (Mainland)
- Brand Name: Jinchang
- Model Number: JCY-2400-16
- White: Gain 16dB
Features
High Gain
Aluminum Alloy frame
Full day for working
Optimized dimension
Optional installation H or V
Application
2.4GHZ WLAN System
Point to point/multipoint transmission system
Wireless bridge ,Terminal antenna
Wireless AP , wireless adapter
Model NO | JCY-2400-16 |
Electric Specification | |
Frequency rang-MHz | 2400-2483 |
Bandwidth -MHz | 83 |
Gain -dBi | 16 |
element | 16 |
beam width -° | H 30 V 28 |
-dB | ≥16 |
VSWR | ≤1.5 |
Input Impedance-Ω | 50 |
Polarization | Horizontal or Vertical |
Max power -W | 100 |
Lightning protection | DC ground |
Connector model | SMA female or others |
Mechanical Specification | |
Size -mm | 590*88*44 |
Cable length-m | 1 |
Antenna weight-kg | 0.33 |
Working Temperature -°c | -40~60 |
Rated Wind Velocity-m/s | 60 |
Clamp | U type |
Pole diameter -mm | Φ40~Φ50 |
| Delivery Detail: | 7days |
|---|

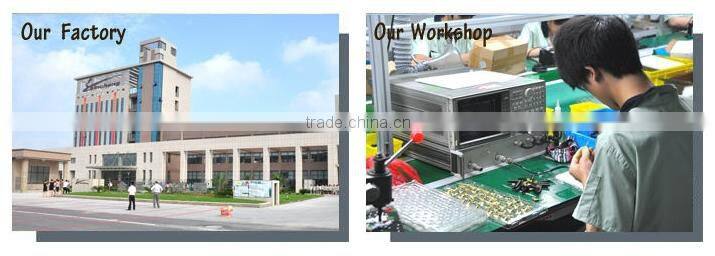

1.We have our own factory, offering dozens of antenna lines and over 20 R&D personnel.
2.We can make your own bespoke designs and samples to order.
3.We have an impressively quick reaction time to all your orders and requests, pre-production.
4.In Jinchang's R&D office, the Technical personnel to meet various requirements for you.
