Product Details
| Products Status | Stock | Type | Wireless | |
| Application | Enterprise | Function | QoS, VPN | |
| LAN Ports | 2 | WAN Ports | 1 | |
| Certification | FCC,CE,ROHS | Brand Name | TopDoss | |
| Model Number | TD-AP300 | Place of Origin | Guangdong, China |
Product Description
Specifications
1.Brand name:TopDoss2.Model:TD-AP300
3.Chipset:RT3052
4.Speed:300Mbps
5.Frequency:2.4GHz
Specification
Ceiling Mount Wireless Access Point
1.2.4GHZ 300Mbps Wireless AP
2.WAN/LAN/POE Port
3.AP/Repeater/WDS/WISP/Gateway mode
4.Omni antenna,500meter
5.Ralink3052
Chipset | RT3052 |
Memory | 32MB DDR RAM (May extend to 64MB) |
Flash | 4MB(May extend to 8MB) |

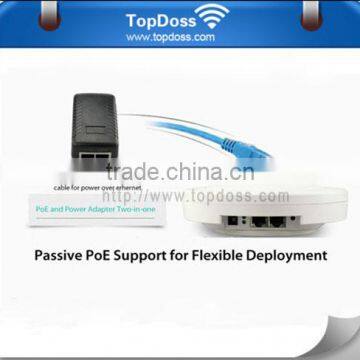

Interface | 2 x RJ-45 for 10/100 Mbps WAN/LAN Port (Support 12V/24V POE) |
1 x Reset button(Reset & Factory Defaults) | |
1 x Power DC Jack | |
Power | 12V(POE 12V/24V)/1A;110V/220V |
Antenna | Build in 2PCS MIMO 5dbi antenna |
Frequency | 802.11b/g/n |
2.4~2.4835GHz | |
Modulation | OFDM = BPSK,QPSK, 16-QAM, 64-QAM |
DSSS = DBPSK, DQPSK, CCK | |
Throughput | 300Mbps |
Operation Mode | Gateway/ AP/ Repeater/ WDS / WISP |
Protocol/Standard | IEEE 802.3(Ethernet) |
IEEE 802.3u(Fast Ethernet) | |
IEEE 802.11b/g/n(2.4G WLAN) | |
Wireless | Auto-Channel selection |
Distance Control (802.1x Ack timeout) | |
Multiple SSID (4 SSID) | |
BSSID | |
Security | WEP Encryption-64/128/152 bit |
WPA/WPA2 Personal (WPA-PSK using TKIP or AES) | |
WPA/WPA2 Enterprise (WPA-EAP using TKIP) | |
Hide SSID | |
System Settings | Web-based configuration (HTTP/Telnet) |
Firmware Upgrade | Upgrade firmware via web browser or TFTP |
Administration | Admin Password can be configured |
System monitoring | Status in hand , useful statistic and Event log |
Reset | Reset or factory defaults |
Backup | Restore settings & configuration of the device to local file |
Temperature | Working: 0°C~55°C |
Storage: -20°C to 70°C | |
Humidity | 5%~95% (typical) |
