preload with OPEN-WRT system wireless wifi outdoor access point
- Shenzhen
- Credit Card
You May Like
-
2.4g 200mw wireless wifi outdoor access point
-
2.4g 200mw wireless wifi access point
-
AR9344 300Mbps Outdoor 5.8ghz 16dBi wireless outdoor bridge, WDS, AP, CPE
-
2.4G 300M Access Point outdoor wireless ethernet wifi Bridge high power wireless outdoor CPE
-
2.4ghz antenna wireless ap outdoor ap wifi repeater and transmitter
-
2.4G 300Mbps wireless outdoor cpe -- CPE EC-WB2
Product Details
| Place of Origin | Guangdong, China | Brand Name | Elifecosy | |
| Model Number | EC-WB2 |
Product Description

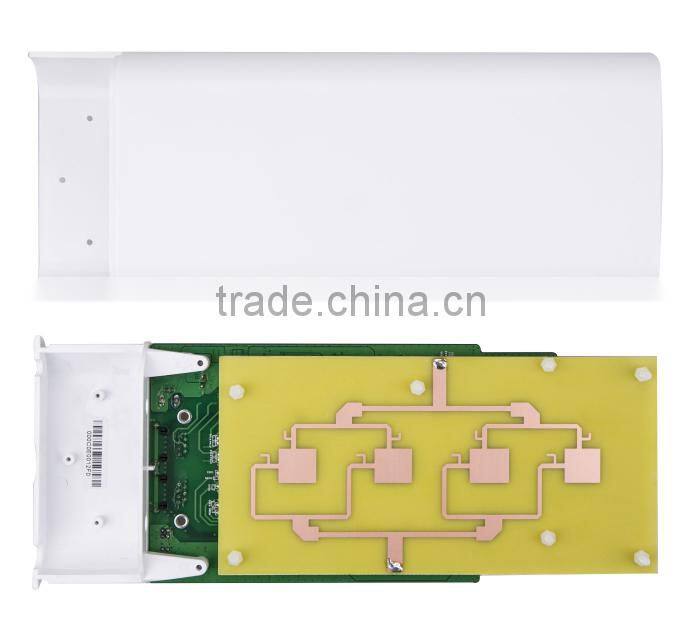

preload with OPEN-WRT system wireless wifi outdoor access point
2.4GHz 300Mbps Atheros9341 Chipset
200mw Built-in 14 dBi MIMO2x2 Antenna
120 Users,Cover3~5km without Block
Support 12~15V Passive POE
Water/Lightning/Snow -proof,Sun Protection
2*10/100 Mbps Adaptive LAN/WAN RJ45 Port
1*Reset Button;4*Led;1*DC Port
2*SMA Holes for External Antenna Interface
1.Complies with IEEE 802.11b /g/n standards
2.Support 2.4GHz WLAN/LAN networks.
3.Provide up to 300Mbps transmission rates
4.Support wireless Auto-channel selection
5.High security ,Support 64/128/152Bit WEP Encryption;WPA / WPA2,WPA-PSK / WPA2-PSK Security Mechanism;SSID Hiding;MAC Address Filtering
6.2* Directional Built-in14dBi antenna
7.Supports AP Bridge/Client Bridge/WAN Gateway modes,adjustable modes according your needs.
8.Adjustable transmit power,you can control your wireless cover range according different requirement.
9.2*10/100 Mbps Adaptive Wired Network Interface (Supports 12V POE Power Supply)
Hardware | |||
Model | EC-WB2 | ||
Chipset | Atheros AR9341 | ||
RAM/Flash | DDR2 64MB/8MB | ||
Interface | 2*10/100 Mbps Adaptive LAN/WAN Port,Supports 12-15V Passive POE | ||
2*SMA Holes for External Antenna Interface | |||
1*Reset Button;4*Led;1*DC Port | |||
Antenna | Built-in14dBi Directional Antenna MIMO2x2 | ||
Power | 12V(POE)/1A;110V/220V | ||
RF Parameters | |||
Standards | IEEE802.11b/g/n | ||
Speed | 300Mpbs | ||
Modulation Mode | OFDM=BPSK,QPSK,16-QAM,64-QAM | ||
DSSS=SBPSK,DQPSK,CCK | |||
Frequency | 2.4~2.4835GHz | ||
Sensitivity | 802.11n(2.4GHz) | 802.11g | 802.11b |
-90dBm*MCSO | -90dBm*6Mbps | -95dBm*1Mbps | |
-70dBm*MCS7 | -72dBm*54Mbps | -90dBm*11Mbps | |
-90dBm*MCS8 |
|
| |
-68dBm*MCS15 |
|
| |
Transmit power | 23dBm±1.5dBm 200mw | Radio1(WLAN1) |
|
802.11n(2.4Hz)(±1.5dBm) | 802.11g(±1.5dBm) | 802.11g(±1.5dBm) | |
25dBm*MCS0~2/MCS8~10 | 25dBm*6~24/Mbps | 25dBm*1~11/Mbps | |
24dBm*MCS3/MCS11 | 25dBm*36Mbps |
| |
23dBm*MCS4/MCS12 | 22dBm*48Mbps |
| |
23dBm*MCS5/MCS13 | 22dBm*54Mbps |
| |
22dBm*MCS6/MCS14 |
|
| |
22dBm*MCS7/MCS15 |
|
| |
Software | |||
Mode | AP Bridge/Client Bridge/WAN Gateway | ||
Standards | IEEE 802.3(Ethernet) | ||
IEEE 802.3u(Fast Ethernet) | |||
IEEE 802.11b/g/n(2.4G WLAN) | |||
Wireless Setup | Support Multi SSID Channel Selection(1-14 Channel) | ||
Switch of SSID Broadcasting | |||
Support Multi-country Channel | |||
Security | Support 64/128/152Bit WEP Encryption | ||
WPA / WPA2,WPA-PSK / WPA2-PSK Security Mechanism | |||
SSID Hiding;MAC Address Filtering | |||
Physical Characteristics | |||
Temperature Characteristics | Working Temperature: 0 ℃ ~ 55 ℃ | ||
Storage Temperature: -20 ℃ to70 ℃ | |||
Humidity | 5%~95%(Typical) | ||

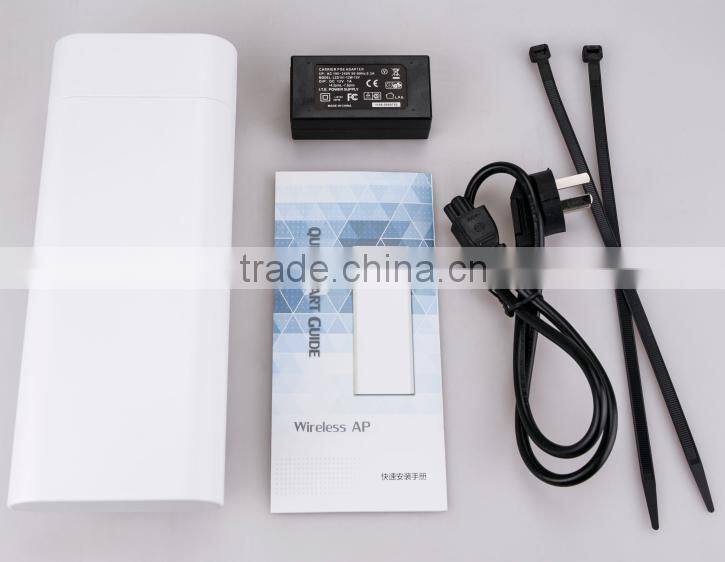

Package | 1*Unit 1*Cable&POE 1*User Manual 2*Tapes | ||
wireless wifi outdoor acess point Application
wireless wifi outdoor access point Certificate
Order wireless wifi outdoor access point now !
Ms Anna Skype ID: Topdoss9 Whatsapp & Phone :0086-15815561656
Ms Sweetly Skype ID: Topdoss6 Whatsapp & Phone :0086-15815561003
Mr Eric Skype ID: Topdoss66 Whatsapp & Phone :0086-13631563050 Tel:0086-755-23284958
