32bit Mini Pixhawk FCB for 4-Axia M8N GPS &3DR Telemetry/OSD/LED/PPM/PM/I2C for FPV Mulicopter

        Mini Pixhawk + Ulbox M8N GPS +PM/I2C + 3DR Radio Telemetry + Micro Mini OSD/ Mini OSD + Power Module + Shock Absorption Board FPV Combo Kit

Features:

32bit Mini Pixhawk V2.4.6 Flight Control with M8N GPS & 433Mhz Telemetry/OSD/LED/PPM/PM/I2C for FPV Mulicopter

Comparing with the standard version, The revisions made on Pixhawk mini are as follows:
- SD card base adopts deadlock function. SD card will not be easily taken out unless press the SIM
- The front jacks all adopts imported the gilded needle, has better contact resistance, more stable and reliable
- N-E-C original tantalum capacitor is added in back compass and main power supply, making each sensor has stable power supplying and lesser possibility of aircraft crashing
- The same matte black gold plate as the original version, high quality
- PIXHAWK intergrated the newest 32 bit chip technology and sensor technology, get rid of the dilemma of having only 8 bit CPU of APM, and CPU occupancy being too high
- Size: from 81.5*50*15.5 to 60*38*14MM
- Weight: from 38g to 27g
- All interfaces are changed to 2.5.4 dupont interfaces both front and behind, convenient for cable connection
- The internal power supply mode is changede, adopting TI power supply plan, external input voltage can reach to 3-15V wide input
- The part of IMU is modue group , maximize to reduce the inteferences, more stable state

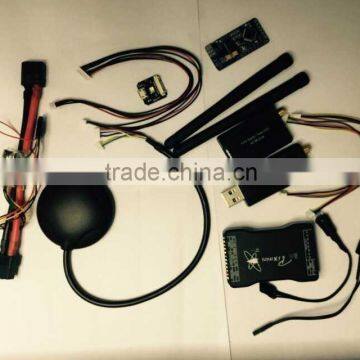

The one combo kit include items is below:

• - Mini Pixhawk 2.4.6 Flight Controller  x  1
  - Original Shell  x 1
  - Buzzer  x  1
  - PWM Dupont Cable x 2
  - TF 8G Card  x 1
  - Power Supply Module x 1
  - Ublox NEO-M8N GPS(Dupont interface)  x 1
  - Mini OSD Module for Mini Pixhawk/APM/APM Pro  x  1
  - Pixhawk-I2C Splitter Expand Module x 1
  - PPM module  x  1
  - External LED light board x 1
  - V2 433Mhz 3DR Radio Telemetry  x 1
  - GPS Folding Holder x 1
  - Shock Absorber x 1
  - USB Data Cable x 1

The most luxurious configuration send to the best players!!!
