8S High Voltage Lithium Battery Checker With Balance Discharger Function With Best Factory Price

8S High Voltage Lithium Battery Checker with Balance Discharger function with best factory price

Specifications:

Function:

Item Name: CellMeter 8
Discharge Current: 1A
Balance Current: 1A
Battery Voltage Test Precision: 0.001V
Battery Type: Can test Li-Po/Li-lon/Li-Fe/Li-HV(2-8S),NiCd/NiMH(4-8S) battery
Servo Test Range: 1000-2000us or 500-2500us
Support Battery Type; Lipo, LiFe, Li-ion, LiHV, NiCd, NiMH
Servo Test Mode; Manual Adjustment, Automatic, Neutral
Servo Test Frequency:50Hz,60Hz,100Hz,125Hz,200Hz,250Hz,300Hz
Balance Discharge Current:90Ma x 8 Cell,(MAX@ Cell, Voltage=4.2V)
Display Mode; Battery Cell Voltage, Total voltage, Lowest cell voltage. Highest cell voltage, Voltage gap between highest cell voltage and lowest cell voltage, Remaining Battery Capacity(%)

1.   Instruction

Cellmeter8 is a clever device that can show you the condition of your battery packs,

It can be used with the most common battery types used for the rc modeling namely

LiLon( Lithium lon)

LiPo(Lithium Polymer)

LiFe(Lithium Ferrite)

LiHV(High Voltage Lithium Battery)

NiCd( Nickel Cadmium)

NiMH(Nickel Metal Hydrate)

Lithium Battery Types( Lipo.Li-Ion,LiFe, LiHV ) without the need for the additional power supply, CellMeter 8 can support 2S-8S,Test 1S Lithium battery, you need to access more than 3S of Nickel Batteries, or 5V UBEC to NiCd/MH port for the Cellmeter8 to provide working power

Nickel Battery type ( NiCd or NiMH) without the need for additional power supply of cellmeter8 can support 4-8S , such as the need to test less than 4S of Nickel Batteries, you need to access2-8S Lithium Battery to the Lithium port for CellMeter8 to provide working power

Lithium Battery And Nickel Battery Connection Diagram
(Can simultaneously connect Lithium battery and Nickel battery)



3. PARAMETERS SETTING









4. LITHIUM BATTERY DETECTION MODE



5. NICKEL BATTERY DETECTION MODE

Will need to detect the nickel battery NICD and NIMH, positive and negative pole plug correctly inserted into cellmeter8, NiCD, NIMH  3 pin port, When there is no lithium battery connected to the Lithium port of cellmeter8, it can start work after obtaining power from nickel battery, LCD screen will display the cell of nickel battery, total voltage, battery type and battery remaining capacity as a percentage of the remaining capacity of the strip pattern
(if there is a lithium battery connected to cellmeter8 to provide power supply, need a short Press Type button to switch to the Nickel Battery detection Mode)

6. LITHIUM BATTERY BALANCE DISCHARGE/FAST DISHCARGE

(Fast discharge module need to be selected independently 50W, or 150W)
Balance Discharge







Fast Discharge (50W or 150W )

The Signal line of the fast discharge module is connected to the test PPM OUT servo port on the left corner of the cellmeter8, correct insertion of the positive and negative poles and the direction of  the signal to the port, And the plug the lithium battery into the 9 pin Lithium port of cellmeter8, The T Dean of the main power supply from the lithium battery is connected with the T Dean port of fast discharge mode, Long Press Discharge button, CellMeter8 enter into the fast discharge mode, and all spec data setting, and operation will be same with balance discharge mode,

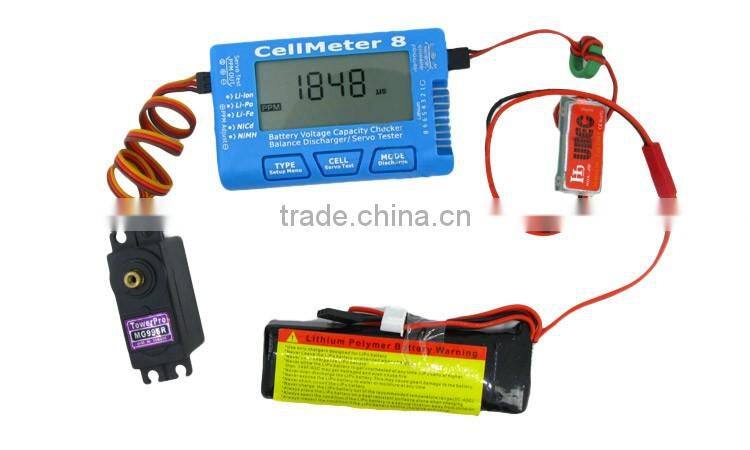

SERVO/ESC TEST MODE

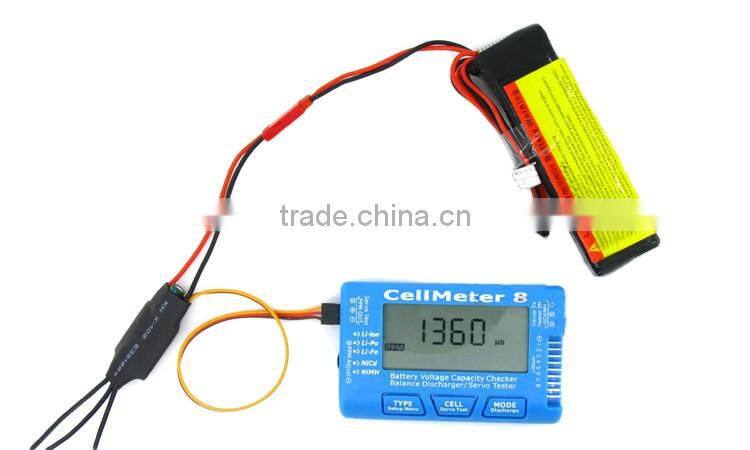

ESC TEST MODE


FUCTIONAL  INTERFACE DISPLAY GRAPH
