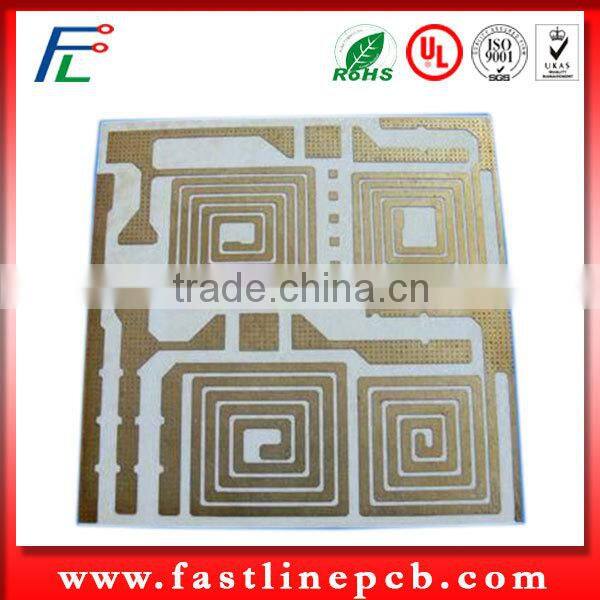

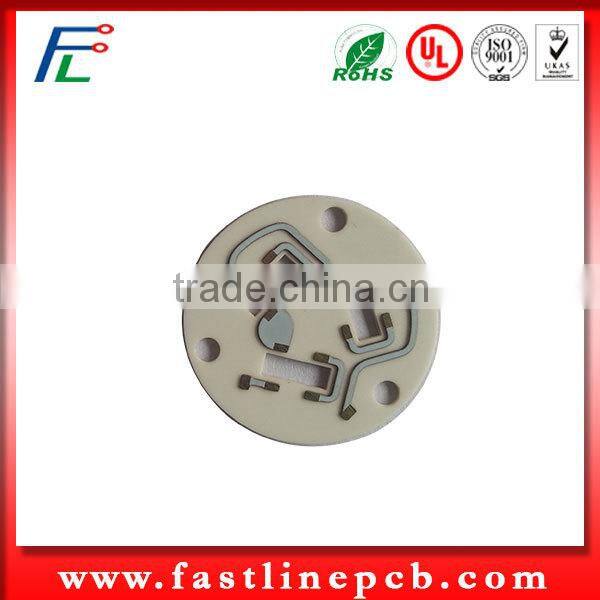

Ceramic Pcb /Double Side Power Supply Gold Plating Ceramic Pcb,Double Side for Ceramic Pcb
- Shenzhen Guangdong
- T/T Credit Card
You May Like
-
Double Side for Ceramic Pcb/ Ceramic Pcb
-
Ceramic Circuit Board With Professional Pcb Manufacturer
-
Multilayer Circuit Board PCB Manufacturing
-
Metalized Ceramics/Alumina Electronic Printed Circuit Boards
-
Hot Sell Sound System Module Ceramic Pcb Board
-
High Resistance 99% Alumina PCB Substrate /Insulating Ceramic PCB Board
Product Details
| Place of Origin | Guangdong, China | Brand Name | fastline | |
| Base Material | Ceramic | Copper Thickness | 1oz | |
| Board Thickness | 1.6mm | Min. Hole Size | 0.15mm | |
| Min. Line Width | 0.075um(3mil) | Min. Line Spacing | 0.08mm | |
| Surface Finishing | HASL |
Inner packing : Vacuum packing,Plastic bag
Outer packing : Standard carton packing
Product Description
* Layer: 1 to 28 layers
* Material type: FR-4, CEM-1, CEM-3, High TG, FR4 Halogen Free, Rogers
* Board thickness: 0.21mm to 7.0mm
* Copper thickness: 0.5 OZ to 7.0 OZ
* Copper thickness in hole: >25.0 um (>1mil)
* Size:
- Max. Board Size: 23 × 25 (580mm×900mm)
- Min. Drilled Hole Size: 3mil (0.075mm)
- Min. Line Width: 3mil (0.075mm)
- Min. Line Spacing: 3mil (0.075mm)
* Surface finishing: HASL / HASL lead free, HAL, Chemical tin, Chemical Gold, Immersion Silver/Gold, OSP, Gold plating
* Solder Mask Color: Green/Yellow/Black/White/Red/Blue
* Tolerance
- Shape tolerance: ±0.13
- Hole tolerance: PTH: ±0.076 NPTH: ±0.05
Material : 95%-99% (AL2O3) Alumina Ceramics
Item: High resistance 99% Alumina PCB Substrate /Insulating ceramic PCB
Producing Method: Hot pressing /Dry pressing
Color : White
Packing : Carton /Pallet/Wooden case (According to clients requirement )
Delivery time : Standard Product-Within 3 days
New developed items :--15days
Items Design: According to client’s drawing or samples
Can we know your factory manufacture capability?
Sure , please check the sheet below :
layer | 1-50 layer |
Material type | FR-4, CEM-1, CEM-3, High TG, FR4 Halogen Free, Rogers |
Board thickness | 0.21mm to 7.0mm |
Copper thickness | 0.5 OZ to 6 oz |
Size | Max. Board Size: 580mm×1100mm |
Min. Drilled Hole Size: 0.2 mm (8 mil) | |
Min. Line Width: 4mil (0.1mm) | |
Min. Line Spacing: 4mil (0.1mm) | |
Surface finishing | HASL / HASL lead free, HAL, Chemical tin, Immersion Silver/Gold, OSP, Gold plating |
Solder Mask Color | Green/Yellow/Black/White/Red/Blue |
Tolerance | Shape tolerance: ±0.13 |
Hole tolerance: PTH: ±0.076 NPTH: ±0.05 | |
Certificate | UL, ISO 9001, ISO 14001 |
Special requirements | Buried and blind vias+controlled impedance +BGA |
Profiling | Punching, Routing, V-CUT, Beveling |
Can You Show Me some Picture of the factory?
What's your products application ?
Why Choose you ?
1) We have professional research team.
2) No MOQ,samall order are aslo welcome,From Prototype to Mass production.
3) All products are 100% tested working before sent to you.
4) One stop PCB solution (PCB , PCB Assembly and SMT stencil)
5) We have professional sales team, so please do not hesitate to contact us if you have any question!
Company Profile
Fastline is a Leading PCB manufacturer in China.serving customers in over 40 countries from various electronic industries, Over 70% of products are exported to America, Europe and other Asia Pacific countries. Fastline could meet all your PCB manufacturing needs, including High multilayer PCB, Aluminum based PCB, HDI PCB, Rigid-flex PCB, heavy copper PCB, and PCB assembly as well. Our products are widely applied in telecom, industrial control, power electronics, medical instrument , security electronics, aerospace and so on. And Provides "PCB One-stop PCB solution" to meet customers' diverse demands. Our factories with a facility area of more than 40,000 square meters with 1000 professional staff,And we have got the approval of ISO9001 certificates. UL Certification and all Products Meet RoHS compliance. Fastline Circuits is commited to provide superior quality products and services that consistently meet and exceed our customers requirements on time, every time!
