Proofread Technical 30W Online Foodstuff Package Laser Date Code Machine Price

It adopts imported shoot power metal-sealed CO₂ laser and high speed scanner system for this series product, equipped with the professional flying marking control software. It can be suitable for the on-line mass production under the working methods of online flying marking (continued and dynamic working), and formed the character, figures, symbol, images anti-faked auto coding and serial number, etc. Automation marking process, no touch, no polluted, lower running cost (not other consumables), lower failure rate(without maintenance). It can be made the better function for anti-faked and indicated the area code.

Stable integrate capability of the machine, high repeated precision and orientate precision, long life the laser, continuous working 24 hours with high speed, It can be satisfied for the demand of the on-line mass production.

Application and materials:

Industrials: spirits, tobacco, medication, foodstuff & drink, individual nursed materials, electron wares, cards, arts and crafts, building materials and leather etc.

Materials: paper, plastics, pellicle, tin foil, wood, glass, PVC, ABS and EP etc.

Advantage:

1. No touched laser marking for environmental protection, not any injurant, no contaminated, there is not any changed when through the test for medicament, milling and high temperature.
2. Once investment, not need anaphase consumables, lower cost for not more than 1kilowatt-hour.
3. Automatic working on line for packing through the computer, it can mark for a few thousand or ten thousand products per 1 hour, the cost lower than normal printing, higher speed and easier operating.
4. Can on-line mark the dynamic series code, anti-faked code, equipped with

Logistics Management Information Services System for anti-faked and indicated area code, stop the counterfeit and wrong area selling, improve the enterprises level for sales and logistics management.

Technical Data:

Max. laser power:30W

Wavelength:   10.64μm

Repeat frequency: 20kHz

Marking scope: 60mmX60mm and 100mmX100mm (optional)

Marking contents: character, symbol, logo, barcode, two-dimension code, graphics, image, full automatism serial number, batch number, real time clock, automatism date of manufacture and encrypt number at will.

Marking speed: 0-90M/min. (optional)

Min. line width: 0.1mm

Repeat accuracy: ±0.01mm

Min. character: 0.3mm-60mm (optional)

Marking lines: from one to ten

Type of character: Chinese, English, figure

Image direction: 0^o-360^o (optional)

Scanner direction: 0^o-90^o (optional)

Information memory: absoluteness

Character height: absoluteness within marking scope

Laser deflexion system: high speed scanner

Control system: standard computer, true color LCD, Windows XP editor interface, operation in Chinese, can editor figure, character and images.

Input port: input interface of production inductor, non normal working input of on-line production

Output port: alarm signal output for laser fault and environment exceed standard

Working method: Using equipped with customer’s product line or customized at the customer’s option

Input power: 500W

Electrical source: 220V/single-phase/50Hz / 3.5A

Cooling system: Air cooling.

Dimension of main machine: 250X550X220mm

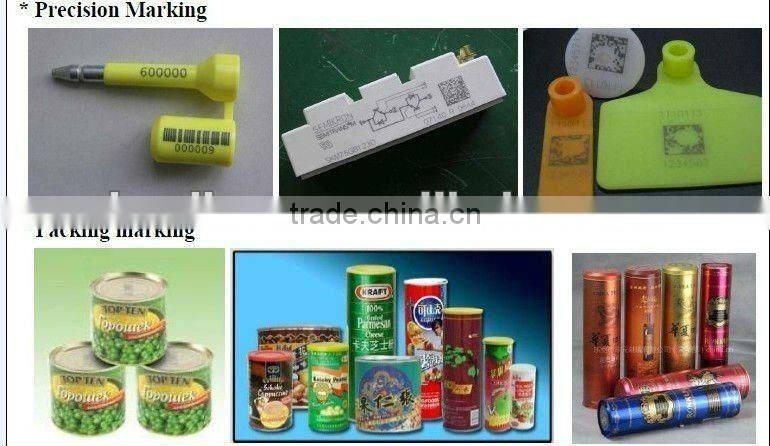

Samples Chart:
