Home > Products > LED Power Supply > 360W Dual Output Switching Power Supply;88 ~ 264VAC Input;12V/350W Output, CE and ROHS Approved

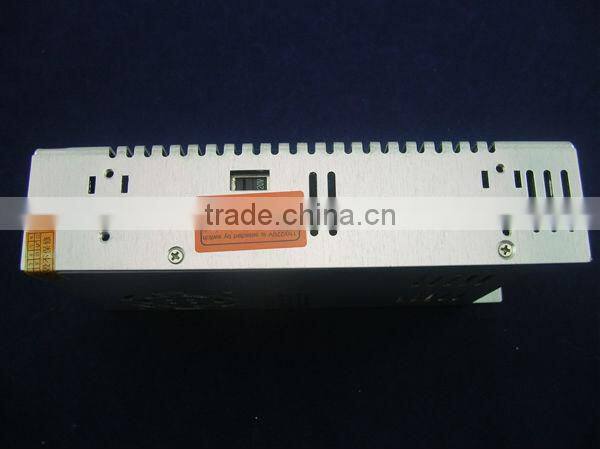

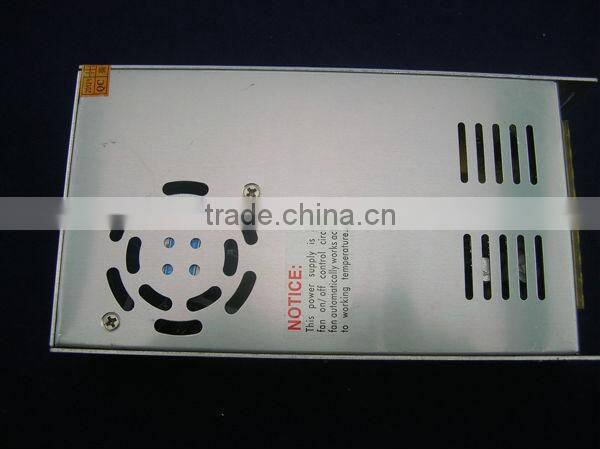

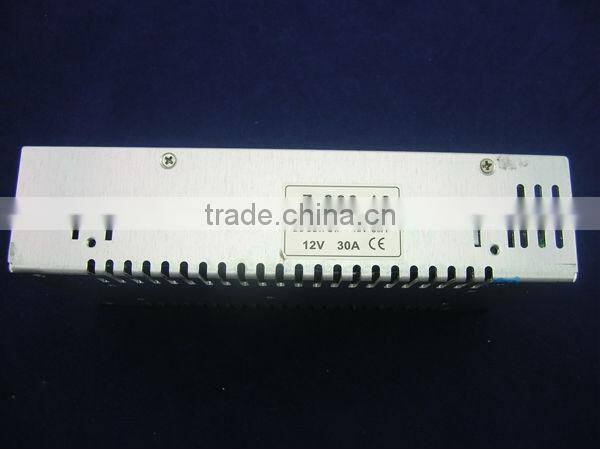

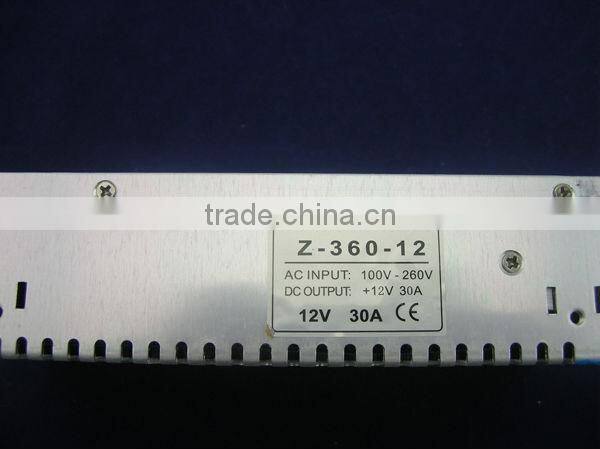

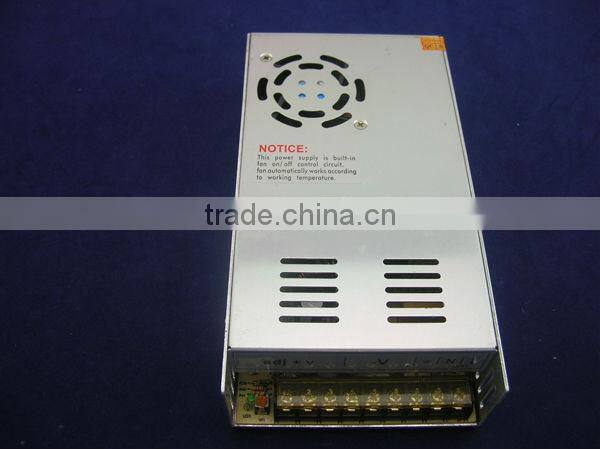

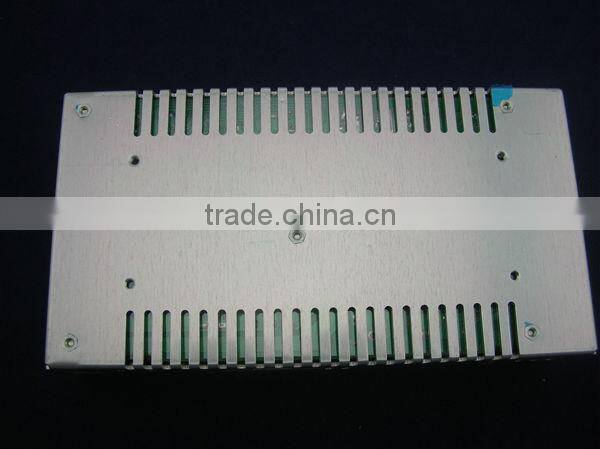

360W Dual Output Switching Power Supply;88 ~ 264VAC Input;12V/350W Output, CE and ROHS Approved

FOB Price

US$ 14.43 - 14.52 / Piece

1 Piece(Min. Order)

Port Shenzhen
Payment TermsCredit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	SCOTT
Model Number	SC-360W-12V-30A	Output Power	301 - 400W
Input Voltage	Other, 110V or 220V	Output Voltage	12V
Output Current	30A

Product Description

Specifications

360W Dual Output Switching Power Supply,
1. CE,ROHS approved
2. 2 years warranty
350W switch mode power supply
CE, ROHS CER

360W Dual Output Switching Power Supply

Quick Details

Place of Origin: Guangdong, China (Mainland)
Brand Name: SCOTT
Model Number: SC-350W-M
Output Power: 301 - 400W
Output Type: Single
Input Voltage: AC85-265V
Output Voltage: 5-48V
Output Current: 0-50A

Packaging & Delivery

Packaging Details:	1pc/white box, 20pcs/ctn
Delivery Detail:	2 days

<:article id=richTextContainer>

Specifications

350W switch mode power supply
1. CE,ROHS approved
2. 2 years warranty

350W switch mode power supply

CE, ROHS CERTIFICATE

size: 215*115*50mm or 199*110*50mm

Model	S-350-5	S-350-7.5	S-350-12	S-350-13.5	S-350-15	S-350-24	S-350-27	S-350-48
Specification
DC output voltage	5V	7.5V	12V	13.5V	15V	24V	27V	48V
Output voltage error(Note2)	±2%	±2%	±1%	±1%	±1%	±1%	±1%	±1%
Rated output current	50A	40A	29A	25.8A	23.2A	14.6A	13A	7.3A
Output current rage	0-50A	0-40A	0-29A	0-25.8A	0-23.2A	0-14.6A	0-13A	0-7.3A
Wave and noise(Note 3)	150mVp-p	150mVp-p	150mVp-p	150mVp-p	150mVp-p	150mVp-p	200mVp-p	240mVp-p
Inlet stability(Note 4)	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
Load stablity (Note 5)	±1%	±1%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
DC output power	250W	300W	348W	348.3W	348W	350.4W	351W	350.4W
Efficiency	73%	76%	74%	79%	78%	81%	82%	83%
Adjustable range for DC voltage	4.5-5.6V	6-9V	10-13.2V	12-15V	13.5-18V	20-26.4V	26-32V	41-56V
AC input voltage range	85~132VAC/180-264VAC 47-63Hz;254-370VDC
Input current	6.5A/115V 4A/230V
AC INnrush current	25A/115V 50A/230V
Leakage current	<3.5mA/240VAC
Overload proctection	105%~150% Tpye:pulsing hiccp shutdown Reset:auto recovery
Over-voltage protection	5.75~6.75V	9.4~10.9V	13.8~16.2V	15.5~18.2V	18~21V	27.6~32.4V	33.7~39.2V	57.6~67.2V
High-temperature protection	ERH3>=65°C~70°C Fan on,<=55°C~60°CFan off,>=80°C~85°C,Cut orr output(5~15V)Cut off ortput(5~15)~(24~48V)
Temperature coefficient	±0.03%/°C(0~50%)
Setup rise hold up time	200ms,100ms,20ms
Vibration	10~500Hz,2G 10min,/1cycle,Period for 60min,each axes
Withstand voltage	Input and output internal;1.5KVAC,Input and enclosure;1.5KVAC,Output and enclosure0.5KVAC
Isolation resistance	Input and output internal:Input and enclosure,Output and enclosure;500VDC/100MΩ
Working temperature and humidity	-10°C~+60°C(Refer to output derating curve),20%~90%RH
Store temperature and humidity	-20°C~+85°C,10%~95%RH
Overall dimension	215×115×50mm
Weight	1.15Kgs
Safety standards	Design refer to UL1950
EMC standards	Design refer FCC PART15 J Conduction class A
Note 1.The testing condition for the paramenter above is :230VAC input,rated load,25°C70% RH.Humidity. 2.Error.include the setting error,line stability and load stability.(Note:5). 3.Wave test:adopting "A12"double wire for 20MHz,and 0.1UF&47UF capacitor short-circuit for interrupting. 4.Inlet voltage stability test:when is over load,the lowest voltage of inlet is up to the highest voltage. 5.Load stability test:the load is from 0% to 100%.
