Home > Products > Gaskets > Asme b16.20 spiral wound gasket

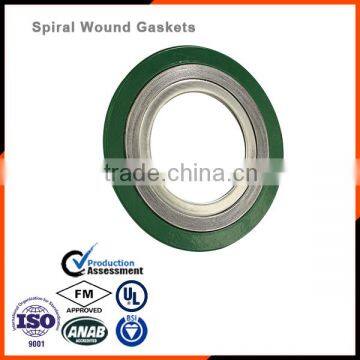

Asme b16.20 spiral wound gasket

FOB Price

USD $0.10 - $0.10 / Piece

1 Piece(Min.Order)

Supply Ability 100000 Piece / Pieces per Month
Port XINGANG PORT CHINA
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanxi, China	Brand Name	HIG-01
Model Number	Seals Gasket	Material	Metal
Shape	Ring Gasket	Standard or Nonstandard	Standard

Product Description

Specification:

1.Products are manufactured in accordance with all relevant gasket standards to suit flange designations: ASME B 16.20, ASME B 16.5, BS1560, ASME B 16.47 A (B), BS EN 1092, DIN, JIS, and NF, etc.

2.Color cord as ASME B 16.20 on request.

Product Standards:

Our production is in compliance with the standards of ASME B 16.20, MSS SP-44, API 605, DIN, JIS, JPI, BS 1560, JG / T, GB / T, HG, SH, etc. Or products can be customized according to the costumer requirements. Please provide the specific drawings if the gasket is used in the heat exchanger with ribs.

TYPE OF SPIRAL WOUND GASKET:

spiral wound gasekest,have 4 types:

SW - Basic Type

SWI - Inner Ring Type

SWC - Outer Ring Type

SWCI - Inner & Outer Rings Type

Structure :

1.Metal strip: the processed metal strip has good elasticity and recovery. It provides the filler enough tensile strength.

2.Filler: this part is the main body of the gasket and different material is used in different conditions

3.Centering ring:the centering ring does not come into direct contact with contained fluid. It is normally made of carbon steel and electro plate or painted to avoid corrosion. Other materials are available on request.

4.Inner ring:inner ring is used to avoid excessive compression due to high seating stress in high pressure service and it is also used to reduce turbulence in the flange area. It is normally made of the same material as the gasket metallic strip.

Material:

Materials of Steel		Fillers			General Thickness (mm)
Name	Code	Name	Code	Applicable Temperature℃	V-shaped Gasket/Ring	W-shaped Gasket/Ring
Carbon Steel	CS	Asbestos	ASB	500	3.2/2.0 4.5/3.0 5.5/3.0	4.8/3.0 7.2/4.0
Stainless Steel	304(L),316(L)	Graphite	FG	650
Monel	Mon	Teflon	PTEF	260
Nickel, Titanium	Ni, Ti	Mica	MICA	850
Inconel	Inc	Ceramics	CER	1300
Hastelloy Alloy	HAST	Non Asbestos	NAF	500
