Home > Products > Water pump > 2 inch small petrol gasoline/petrol water pump WP20, 5.5hp engine

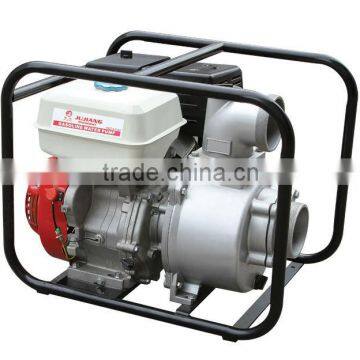

2 inch small petrol gasoline/petrol water pump WP20, 5.5hp engine

FOB Price

US$ 59 - 69 / Carton

10 Cartons(Min. Order)

Port Ningbo
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China	Brand Name	Zton
Model Number	WP20CX	Usage	Water
Power	Other, Engine power	Standard or Nonstandard	Standard
Fuel	Gasoline

Product Description

Specifications

1. Light-weight petrol water pump
2. Cast iron volute and impeller
3. factory price
4.OEM is offered
5. CE,Soncap, ISO9001

2 inch small petrol gasoline/petrol water pump WP20, 5.5hp engine

Product Description

Technical Data:

Model	WP10	WP15	WP20	WP30	WP40
Outlet Size(mm)	25	40	50	80	100
Inlet Size(mm)	25	40	50	80	100
Speed (rpm)	6800	3600	3600	3600	3600
Lift Head. max (m)	22	20	30	30	25
Flow. max(m3/h)	7	21	27	60	80
Suction(m)	7	7	7	7	8
Maximum Power Output (HP)	2.2	2.5	5.5	6.5	13
Engine Model	1E40-6F	JJ154	JJ168F	JJ168-1	JJ188
Bore x Stroke (mm)		52x38	68x45	68x54	88x64
Displacement (cc)	50.2	87	163	196	389
Compresslon Ratio	7.7: 1	7.7: 1	8.5: 1	8.5: 1	8.0: 1
Maximum Power Output	1.7kw/4000rpm	1.7kw/4000rpm	4.0kw/3600rpm	4.8kw/3600rpm	9.5kw/3600rpm
Recommended Power Using	1.65kw/3600rpm	1.65kw/3600rpm	3.4kw/3600rpm	4.0kw/3600rpm	8.0kw/3600rpm
Maximum Torque	4.2N. M/3200RPM	4.2N. M/3200RPM	10N. M/2500RPM	11N. M/2500RPM	21N. M/2500RPM
Ignition System	Non-contact transistorized(TCL)
Engine type	2 stroke	Single cylinder, Air-cooled, 4-stroke, 25 inclined
Starting System	Recoil and hand-operated		Recoil and hand-operated/Eletric start
Air Cleaner	semi-dry oil bath type
Fuel tank Capacity (L)	1	1.6	3.6	3.6	6.5
Fuel Consumption(L)	≤ 450g/kw/h	≤ 450g/kw/h	≤ 395g/kw/h	≤ 395g/kw/h	≤ 395g/kw/h
oil Capacity (L)	/	0.4	0.6	0.6	1.1
run time per tankful @3/4 load	1h	1.5h	2.6h	2.6h	2.6h
Net Weight(kg)	9/10	15/16	25/27	28/30	45/47
Dimensions LxWxH(mm)	310x295x315	470x365x375	475x375x380	500x375x405	630x455x500

Features

1. Economical, reliable and durable
2. Easy to strt, durable OHV, high quality
3. Oil alert to shut down engine automatically when low oil is detected
4. Pump body made of light-weight but strong aluminum alloy
5. Cast iron volute and impeller
6. High-quality ceramic mechanical sealling
7. Max. pump lift of 26m, Max. suction of 7m
8. CE, CSA, EPA, ISO9001:2000 certification approved
9. One year or 500 hours warranty
