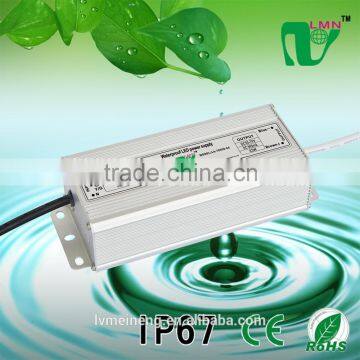

Output 50-70V 900mA 63W Waterproof LED driver IP67
- Shenzhen
- T/T Credit Card PayPal
You May Like
-
China 600mA low power IP67 waterproof 30W constant current led driver supply
-
Good quality IP67 waterproof 10W constant current led power supply
-
Low power IP67 waterproof 800mA 24V 20W constant current led universal power supply
-
300mA 36W 100-120V Constant Current waterproof LED driver
-
50V300mA low power IP67 waterproof 15W constant current led driver supply
-
low power IP67 waterproof 330mA 21W constant current led driver supply
Product Details
| Place of Origin | Guangdong, China | Brand Name | Lvmeineng | |
| Model Number | LA-70900-04 | Output Power | 51 - 100W | |
| Output Type | Single | Input Voltage | 110V | |
| Output Voltage | 50-70V | Output Frequency | 47-63Hz | |
| Output Current | 900mA |
Product Description
Output 50-70V 900mA 63W Waterproof LED driver IP67
Product advantage:
1. OEM/ODM Customized product is available, please kindly contact us for more
2. Epoxy Resin/Silicone Gel potting on request, IP67-68 waterproof for outdoor lighting
3. Universal AC input/ Full range options provided.
4. Low price and high reliability
5. High efficiency up to 90% with low working temp
6. With low and stable input and output ripple 100-150mVPP
7. Long life electrolytic capacitors band as Rubycon, Beryl or customized band.
8. Well-known band new IC: Fairchild, Silergy, NSC etc.
9. All parts are new and checked by QC
10. 100% full load burn-in test before delivery.
11. Shot circuit/over current/over voltage/overload/over heating protection
12. Aluminum housing, good for heat dissipation, cooling by free air convection
Product feature:
Constant Current Driver Model: | LA-70900-04 | ||||
AC Input | Voltage | 90~130V | 170~265V | 85~265V | 100~277V |
Current | ≤0.5A | ||||
Frequency | 47~63Hz | ||||
Efficiency | ≥90% | ||||
Power factor | ≥0.95 | ||||
DC Output | Voltage | 50-70V | |||
Current | 900mA | ||||
Rated Power | 63W | ||||
Protection | Short circuit | Hiccup mode, recover after fault condition is removed | |||
Overload | 110-130% Shut down O/P voltage, repower on to recover | ||||
Over Temperature | ≥85°C Shut down O/P voltage, repower when cool down | ||||
Over Current/Voltage | 110-130% Shut down, repower on to recover | ||||
Protection Rating | IP67 | ||||
SELV | Yes | ||||
Environment | Isolation Resistance | I/P-O/P:>100M Ohms / 500VDC / 25°C / 70% RH | |||
Working Temperature | -30℃~+55℃ | ||||
Store Temperature | -40℃~+85℃ | ||||
Heat dissipation | Air Convection(Aluminum housing) | ||||
Input Cable | VDE H03VV-F 3G×0.75 mm2 | ||||
Output Cable | VDE H03VV-F 2×0.75 mm2 | ||||
Dimension/Net Weight | L180*W72*H42 mm/930g | ||||
Certificate | CE(EMC+LVD) RoHS IP67 | ||||
