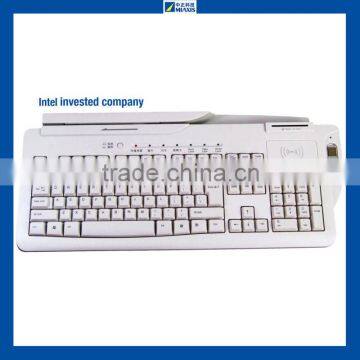

MR-600D Portable Finger Reader Integrated Full Function Keyboard for portable smart card reader

Introduciton

MR-600D biometric fingerprint integrated full function keyboard can be integrated with the functionalities: fingerprint module, magnetic card reader module, contact IC card reading and writing module, contactless IC card reading and writing module, serial expansion port and standard keyboard. The minimum configuration is with fingerprint module, magnetic card reader module and standard keyboard.

fingerprint module description

- obtain the certification from China Financial Certification Authority and the Ministry of public security

- sensor support: capacity sensor or inductance sensor

- function:  fingerprint image acquisition, image processing, feature extraction, feature storage and fingerprint matching

- fingerprint module SDK can be based on Unix,Linux or Windows platforms

descriptions of contactless IC card reader and writer module

-  fit the standard of  Chinese financial industrial and  PBOC2.0 from Bank of China.

-  communication distance: 0-10cm

-  read/write time <= 0.1s

descriptions of contact IC card reader and writer module

- Integrate two types of contact IC card: IC card and SAM card

- support serial interface and USB interface

- fit the standard of  ISO7816,   EMV,  PBOC2.0 from Bank of China

- lifetime of IC card base: >= 200k times plug in and out

descriptions of magnetic stripe card reader and writer module

- accord with bank card of magnetic stripe data format and the use standard

- support high and low density magnetic stripe card and read/ write passbook

- fit the standard of  IBM, ISO, ANSI

- lifetime of magnetic head: >= 500k times

specification of serial port expansion module

- fit the standard of  Auxiliary port expansion box (BP Box)

- support functions of  serial strobe instructions, download and customization

- support power with serial interface

- support baud rate: 1200 ~ 115200bps

Features

- Single hardware interface with serial port

- Strong functionality,  fingerprint module, contact/contactless IC card reader writer and magnetic swipe integrated in the keyboard

- Easy to use, the device can be adapt itself and used as plug-in machine.
