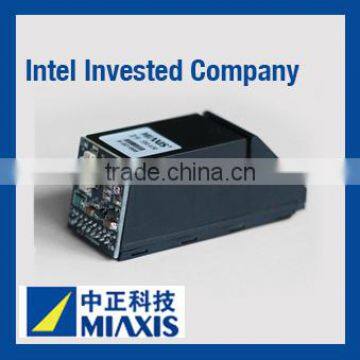

SM-630A Optical Fingerprint Scanner Module for electric lock with remote control
- 50 Set / Sets per Month
- Shanghai
- T/T
You May Like
-
SM-621A Optical Fingerprint verification Module for access control system, door-lock/time attendance system, safety box,
-
MR-600D Portable Finger Reader Integrated Full Function Keyboard for portable smart card reader
-
MR-300D USB Smart Card Reader and Finger Reader Device bluetooth smart card reader android
-
MR-300D USB Cheap Smart Card Reader and Finger Reader Device
-
MR-300D Contact(less) Card Reader and Finger Reader Device with RS232/USB1.0,2.0
-
MR-300D USB Smart Card Reader Writer and Finger Reader Writer Device
Product Details
| Place of Origin | Zhejiang, China | Brand Name | MIAXIS | |
| Model Number | SM-630A |
Product Description
Introduciton
SM630A integrated fingerprint verification module is the latest release of Miaxis Biometrics Co., Ltd. It consists of optical fingerprint sensor, high performance DSP processor and Flash. It boasts of functions such as fingerprint enrollment, fingerprint deletion, fingerprint verification, fingerprint upload, fingerprint download, etc.
Features
- Self-proprietary Intellectual Property .
- High Adaptation to Fingerprints .
- Algorithm with Excellent Performance .
- Perfect Technical Support.
Parameters
| Item | SM-630A |
| Fingerprint Capacity | 768 templates |
| Image resolution | 500DPI |
| Image enrollment time | <200ms |
| Search Time | <1.5s(average value for 200 fingerprints) |
| Verification Mode | 1:1 or 1:N |
| FRR | <0.01% |
| FAR | <0.00001% |
| Sensor | Optical sensor |
| Communication | 57600bps |
| Interface | Windows98/2000/XP/Vista, DirectX8 or above |
| Power Supply | DC 4.3V~6V |
| Operating Temperature | -10~50°c |
| Operating Humidity | 40%~85%(RH) |
| Allowable Rotation | ±45° |
| Product Size (mm) | 60 (W)*21(H) *25 (D) |
| Package Size (mm) | 260 (W)*197 (H) *55 (D) |
| Language | Multi-language |
Parameters
- fingerprint door lock
- fingerprint safe box
- ingerprint time attendance and access control
| Service We will keep in touch with our custormers' business and offer good suggestions. Any questions and problems can be transfered to us, and the solutions should be offered within 24 hours. Products operations training and new product news are also available to our customers. | | Payment We accept the following method for the payment: T/T, L/C. The trade term can be EXW and CIF, while the payment term is 50% of total payment in advance, 50% balance must be paid before shipment.
|
| Shipment
Sample shipment we usually recommend to send by express. Goods can be sent by sea and air. Neutral package is also available.
| | Warranty
All the products we sell have 1 year warranty for FREE. If it has some faulty in manufacturing process, we will exchange it or fix it for FREE. If customers make a mistake on the product and it has some fault, we will try to fix it at the lowest price.
|
