Woodworking Sander Machine for pvc Board Sanding for Sale Jinguan
US$ 8,500 - 9,600
/ Set
1 Set(Min. Order)
- Qingdao
- T/T D/P D/A Credit Card PayPal
You May Like
-
Woodworking Sander Machine for Thicknessing Type
-
Woodworking Sander Machine for Eight Type Inclined SR2A1300
-
Sandermachine type sandingface veneer for plywood
-
Auto Core Veneer Splicing Machine
-
China supply veneer composed machine / Automatic 1 worker core veneer splicing machine / Log veneer building machine
-
Core Veneer Composer Machine / 2015 new plywood Core Veneer Composer / Building Machine / Veneer splicer with best price
Product Details
| Condition | New | Type | CNC Router | |
| Place of Origin | Shandong, China | Brand Name | JINGUAN | |
| Model Number | JG | Voltage | 380V | |
| Power(W) | 40kw | Dimension(L*W*H) | 2800x2000x1250 Mm | |
| Weight | 2000kg | Certification | ISO9001-2000 | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

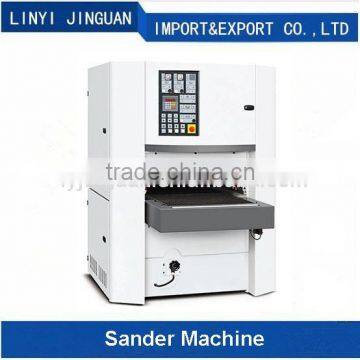

Woodworking Sander Machine
| Technical Data | ||||
| Type | R-RP1300-1 | R-P1300-2 | R-R1300-3 | RP-P1300-4 |
| Working Width | 40`1300mm | 40`1300mm | 40`1300mm | 40`1300mm |
| Working Thickness | 2.5`100mm | 2.5`100mm | 2.5`100mm | 2.5`100mm |
| Working Length | ≥640mm | ≥530mm | ≥470mm | ≥600mm |
| No.1 Sand Belt Speed | 19m/s | 19m/s | 19m/s | 18m/s |
| No.2 Sand Belt Speed | 18m/s | 12m/s | 18m/s | 12m/s |
| Feed Speed | 6`30m/min | 6`30m/min | 6`30m/min | 6`30m/min |
| Size of Sand Belt(W*P) | 1330*2200mm | 1330*2200mm | 1330*2200mm | 1330*2200mm |
| Total Motor Power | 56.74KW(63.74KW) | 49.74KW | 63.74KW | 37.74KW |
| Main Motor Power | 37KW,22KW | 30KW,15KW | 37KW,22KW | 22KW,15KW |
| Working Air Pressure | 0.55MPa | 0.55MPa | 0.55MPa | 0.55MPa |
| Consumption of Compressed Air | 0.1m³/min | 0.1m³/min | 0.1m³/min | 0.1m³/min |
| Volume of Sucked Air | 9500m³/h | 9000m³/h | 9500m³/h | 9000m³/h |
| Speed of Sucked Air | 25`30m/s | 25`30m/s | 25`30m/s | 25`30m/s |
| Overall Dimension(L*W*H) | 2360*2030*2220mm | 2360*2030*2220mm | 2360*2030*2220mm | 2360*2030*2220mm |
| Net Weigh | 3700kg | 3500kg | 3700kg | 3300kg |
| Characteristics |
*R-RP1300-1 is powerful rough sanding machine, is mainly used for sanding and polishing integrated timber, solid board, composite flooring, artificial board, plywood etc. |
*R-P1300-2 is mainly used for sanding and polishing solid board, composite flooring, artificial board, plywood etc. Air bag polishing pad is optional |
| *R-R1300-3 is mainly used for rough sanding solid wood composite flooring sills, multi-layer board etc . |
| *RP-P1300-4 is mainly used for fine sanding of artificial board, plywood , solid board , laminated board etc. |
*Adopting foundry frame, the sanding units can not be distorted easily and have good effect of vibration & absorption. |
*Fault display makes maintenance and repair easy, when fault happens, the machine will be powered off, brake, the table fall and protect workpieces from being damaged. |
*PLC is used to control the sanding belt swing and thickness display, which guarantees the anti-jamming function of the machine. |
| FAQ |
| 1. All kinds of mold can be made by customer's requirements |
| 2. All price are based on FOB, QINGDAO, China Wood Sanding Machine |
| 3. Payment: by T/T 30% down payment, 70% upon machinery completion. |
| 4. Delivery: After finishing all the payment |
| 5. All the parameters above just for reference, for they are updating all the time |
| 6. Package: Standard packing Wood Sanding Machine |
| 7. Warranty: All the machine enjoys one year’s warranty, in this period. |
| Any problems of machine, please feel free to contact us. We will try our best to make it. |
