Wide Belt Chipboard Sander Machine/Four Heads Sanding Machine for Plywood
- Qingdao
- T/T D/P D/A Credit Card PayPal
You May Like
-
Woodworking Sander Machine for pvc Board Sanding for Sale
-
Woodworking Sander Machine for pvc Board Sanding for Sale Jinguan
-
Woodworking Sander Machine for Thicknessing Type
-
Woodworking Sander Machine for Eight Type Inclined SR2A1300
-
Sandermachine type sandingface veneer for plywood
-
Auto Core Veneer Splicing Machine
Product Details
| Condition | New | Type | CNC Router | |
| Place of Origin | Shandong, China | Brand Name | JINGUAN | |
| Model Number | JG | Voltage | 380V | |
| Power(W) | 40kw | Dimension(L*W*H) | 2800x2000x1250 Mm | |
| Weight | 2000kg | Certification | ISO9001-2000 | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

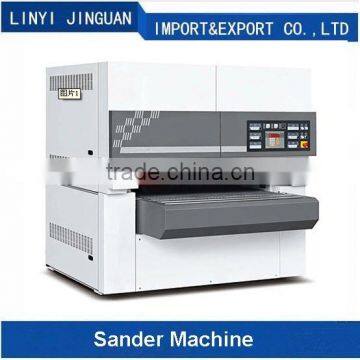

Sander machine
1.Specification
Model | JG |
Working width | 40~1300mm |
Working thickness | 3~100mm |
Working length | 500mm |
Abrasive Belt Speed | 20m/s |
Feeding speed | 6~30 m/min |
Size of abrasive belt | 1330 x 2200mm |
Total motor power | 41.74 kw |
Main motor power | 37 kw |
Working air pressure | 0.55 Mpa |
Consumption of compressed air | 0.1 m 3 /min |
Volume of sucked air | 7500 m 3 /h |
Speed of sucked air | 25~30 m/s |
Overall size | 1800x2690x2010 mm |
Net weight | 2500kg |
2. Feature
1.The machine using abrasive brush to sand the wood door, furniture door, window frame, and uneven surface wood pieces.
2.Using front two groups of brush plate and behind three groups of brush wheel to fine grinding the uneven surfaces front plate with two groups of brush, brush wheel with three groups behind on uneven surfaces fine grinding, brush wheel plate and all the variable frequency speed, adjusted for different work order to achieve the best effort.
3.Using advanced touch-screen and make the operation simple and quickly.
3.Detailed Pictures
4. Our Company
5.Contact Me
