Gas Fired Hot Water Boiler
- Qingdao China
- T/T
You May Like
-
200kg 300kg Steam Evaporation Oil and Gas Fired Steam Boiler for Cooking
-
8 Ton Fully Automatic Diesel and Natural Gas Fired Steam Boiler
-
Industrial Fully Automatic Gas Steam Boiler With 91% Thermal Efficiency
-
Oil and Gas Fired Superheated Steam Boiler With 91% Thermal Efficiency
-
0.2, 0.3 Ton Fully Automatic Oil& Gas Fired Steam Boiler for Industrial Food
-
Industrial Full-automatic Gas Fired Superheated Steam Boiler With 91% Thermal Efficiency
Product Details
| Condition | New | Type | Other, Natural circulation | |
| Usage | Industrial | Structure | Other, Fire tube | |
| Pressure | Other, Low pressure | Style | Other, Horizontal & Vertical | |
| Fuel | Other, Gas fired | Place of Origin | Shandong, China | |
| Brand Name | Xingfu | Model Number | WNS,CWNS | |
| Output | Hot Water | Dimension(L*W*H) | 2.8MW:5300x2700x2400mm | |
| Weight | 9.6t | Certification | ISO9001:2008 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

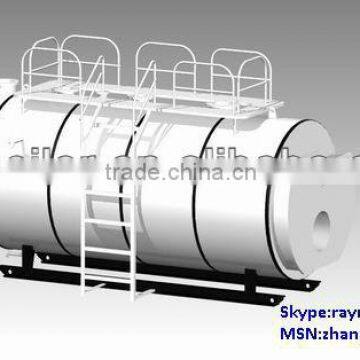

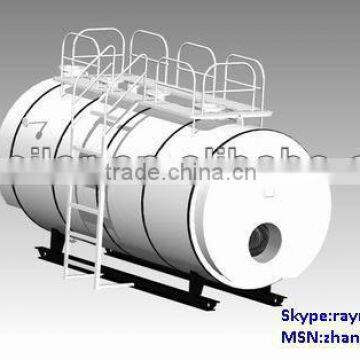

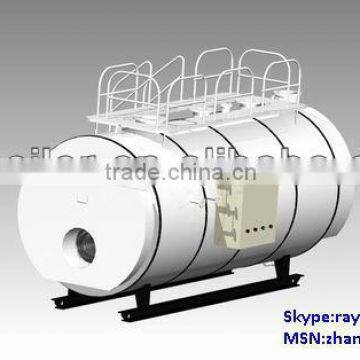

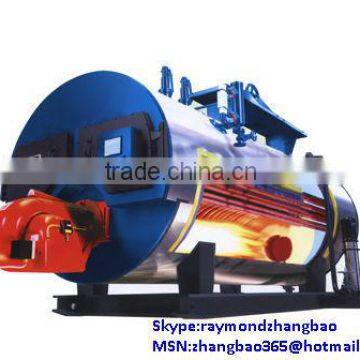

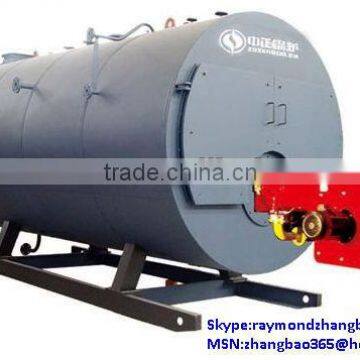

Gas fired hot water boiler
Product features
1. Automatic operation, safety, and reliability shall characterize the boiler provided with various control, protection device, and automatic control of steam pressure, water level and combustion system. The hot water boiler shall use programe control, and temperature and time control featuring the following advantages: easy to use, simple to maintain, as well as saving the manpower and material resources.
2. abundantly, obvious effect of energy-saving, and meeting the environmental requirements.
3. The application of totally enclosed combustion shall make the boiler room to be tasteless, noiseless, unpolluted, beautifull, and clean.
4. Compact structure, small floor area, and simple installation shall characterize the boiler.
Model/Parameter/Item | CWNS 0.14-90/65 -Y(Q) | CWNS 0.21-90/65 -Y(Q) | CWNS 0.35-90/65 -Y(Q) | CWNS 0.45-90/65 -Y(Q) | CWNS 0.7-90/65 -Y(Q) | CWNS 0.9-90/65 -Y(Q) | CWNS 1.05-90/65 -Y(Q) | CWNS 1.2-90/65 -Y(Q) | CWNS 1.4-90/65 -Y(Q) | CWNS 1.6-90/65 -Y(Q) | CWNS 2.1-90/65 -Y(Q) | CWNS 2.8-90/65 -Y(Q) | ||
Rated thermal Power | MW | 0.14 | 0.21 | 0.35 | 0.45 | 0.7 | 0.9 | 1.05 | 1.2 | 1.4 | 1.6 | 2.1 | 2.8 | |
Rated pressure | Mpa | Atmospheric pressure | ||||||||||||
Feed water temperature | C | 90 | ||||||||||||
Return water temperature | C | 65 | ||||||||||||
Heating efficiency | % | 89 | 89 | 89 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
Diameter of Let-off pipe | mm | DN40 | DN40 | DN50 | DN50 | DN80 | DN100 | DN100 | DN100 | DN100 | DN100 | DN125 | DN125 | |
Diamter of Backwater pipe | mm | DN40 | DN40 | DN50 | DN50 | DN80 | DN100 | DN100 | DN100 | DN100 | DN100 | DN125 | DN125 | |
Diameter of Sewer pipe | mm | DN40 | DN40 | DN40 | DN40 | DN40 | DN40 | DN40 | DN40 | DN40 | DN40 | DN40 | DN40 | |
Boiler water Capacity | kg | 450 | 640 | 890 | 944 | 1340 | 1483 | 1800 | 2100 | 2405 | 2796 | 3055 | 4068 | |
Circulating Water capacity | t/h | 4.8 | 7.2 | 12 | 15 | 24 | 30 | 36 | 40 | 48 | 54 | 72 | 96 | |
Power distribution | Kw | 0.55 | 0.55 | 0.55 | 0.55 | 1.1 | 1.1 | 2.2 | 2.2 | 2.2 | 2.2 | 7.5 | 7.5 | |
Fuel | Naphtha | Kg/h | 12 | 18 | 32 | 42 | 60 | 77 | 94 | 107 | 127 | 146 | 188 | 246 |
Heavy oil | Kg/h | 15 | 20 | 34 | 45 | 64 | 82 | 101 | 115 | 136 | 156 | 202 | 249 | |
Town gas | Nm3/h | 29 | 43 | 76 | 99 | 142 | 182 | 221 | 252 | 302 | 346 | 442 | 572 | |
Natural gas | Nm3/h | 15 | 22 | 38 | 50 | 71 | 91 | 111 | 126 | 151 | 173 | 221 | 287 | |
Diameter of chimney | mm | Ø150 | Ø200 | Ø250 | Ø250 | Ø300 | Ø300 | Ø350 | Ø350 | Ø350 | Ø350 | Ø400 | Ø500 | |
Dimension for shipment(mm) | L | 1515 | 1815 | 2250 | 2250 | 2570 | 2570 | 2850 | 2850 | 3090 | 3050 | 3285 | 3664 | |
W | 1220 | 1220 | 1400 | 1470 | 1680 | 1700 | 1700 | 1760 | 1790 | 1920 | 1990 | 2230 | ||
H | 1376 | 1376 | 1521 | 1596 | 1716 | 1796 | 1836 | 1936 | 1893 | 2128 | 1993 | 2427 | ||
Maximum weight for shipment | kg | 800 | 900 | 1200 | 1350 | 2500 | 2700 | 2900 | 3100 | 3500 | 4000 | 4500 | 5813 | |
