Home > Products > Gas fired boiler > Industrial LPG Fired Steam Boiler Caldera de Vapor Ketel Uap

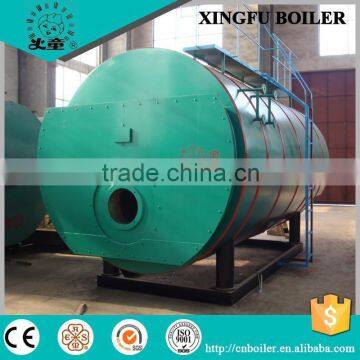

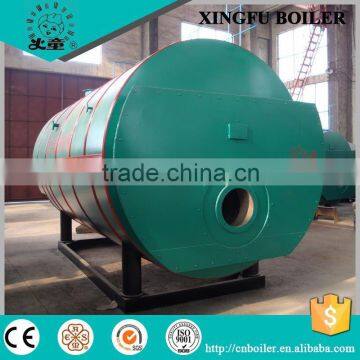

Industrial LPG Fired Steam Boiler Caldera de Vapor Ketel Uap
- Qingdao Port China
- T/T
You May Like
Product Details
| Condition | New | Type | Natural Circulation | |
| Usage | Industrial | Structure | Fire Tube | |
| Pressure | Low Pressure | Style | Horizontal | |
| Fuel | Other, LPG | Place of Origin | Shandong, China | |
| Brand Name | Xingfu | Model Number | WNS | |
| Output | Steam | Dimension(L*W*H) | Depends | |
| Weight | 1-40T | Certification | ISO, CE, ASME | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

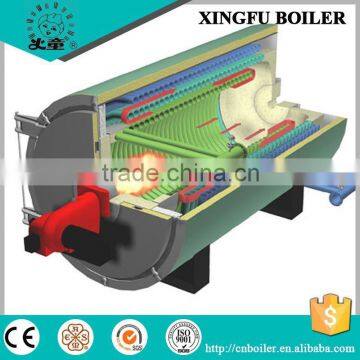

Industrial chain grate LPG fired steam boiler
Product Features
1. Automatic operation, safety, and reliability shall characterize the boiler provided with various control, protection device, and automatic control of steam pressure, water level and combustion system. The hot water boiler shall use programe control, and temperature and time control featuring the following advantages: easy to use, simple to maintain, as well as saving the manpower and material resources.
2. abundantly, obvious effect of energy-saving, and meeting the environmental requirements.
3. The application of totally enclosed combustion shall make the boiler room to be tasteless, noiseless, unpolluted, beautifull, and clean.
4. Compact structure, small floor area, and simple installation shall characterize the boiler.

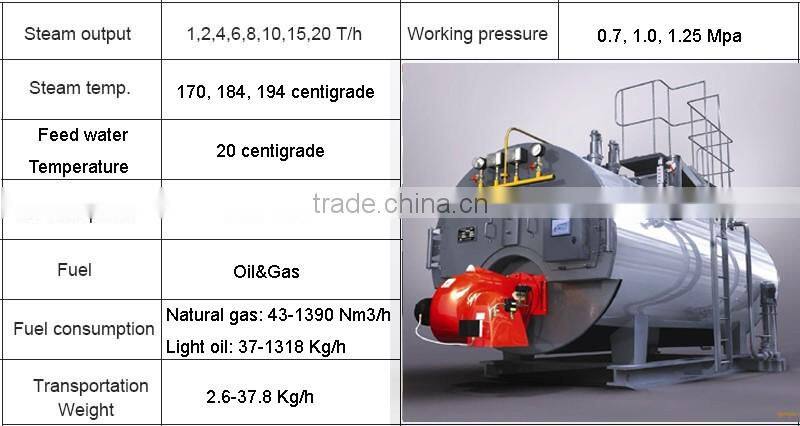

boilertype/ Item | LNS0.2 -0.4-Y(Q) | LNS0.3 -0.7-Y(Q) | WNS 0.5-1.0 -Y(Q) | WNS1 -1.0-Y(Q) | WNS2 -1.25-Y(Q) | WNS3 -1.25-Y(Q) | WNS4 -1.25-Y(Q) | WNS6 -1.25-Y(Q) | WNS8 -1.25-Y(Q) | WNS10 -1.25 -Y(Q) | WNS15 -1.25 -Y(Q) | WNS20 -1.25-Y(Q) | ||||
Rated Evaporation Capacity | t/h | 0.2 | 0.3 | 0.5 | 1 | 2 | 3 | 4 | 6 | 8 | 10 | 15 | 20 | |||
Rated Steam Pressure | Mpa | 0.4 | 0.7 | 1.0 | 1.0 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | |||
Rated Steam Tempreture | ℃ | 151 | 169 | 184 | 184 | 194 | 194 | 194 | 194 | 194 | 194 | 194 | 194 | |||
Feed Water Tempreture | ℃ | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | |||
| Thermal Efficiency | % | 85 | 86 | 86 | 86 | 86 | 88.1 | 87 | 89 | 89 | 89 | 91 | 91 | |||
Steam Valve Diameter | mm | DN25 | DN40 | DN40 | DN65 | DN65 | DN80 | DN100 | DN150 | DN150 | DN150 | DN200 | DN200 | |||
Feed Water Valve Diameter | mm | DN25 | DN25 | DN25 | DN25 | DN40 | DN40 | DN40 | DN50 | DN50 | DN50 | DN65 | DN80 | |||
| Power Distribution | Kw | 0.25 | 0.25 | 0.55 | 1.11 | 2.2 | 7.5 | 7.5 | 12 | 37 | 37 | 45 | 55 | |||
| Fuel(natual gas) | Nm³/h | 15 | 23 | 43 | 85 | 169 | 251 | 334 | 485 | 633 | 827 | 1043 | 1390 | |||
| Coal Gas | Nm³/h | 30 | 46 | 88 | 170 | 350 | 496 | 675 | 1006 | 1266 | 1654 | 2288 | 3050 | |||
| Light Oil | Kg/h | 13 | 20 | 37 | 73 | 145 | 198 | 270 | 392 | 535 | 700 | 989 | 1318 | |||
Mazout | Kg/h | 14 | 22 | 40 | 76 | 157 | 220 | 304 | 425 | 570 | 744 | 1002 | 1336 | |||
Maximum Transportation Size | T | 0.75 | 0.9 | 2.6 | 3.9 | 6.7 | 8.5 | 10 | 15 | 21 | 22.3 | 32.6 | 37.8 |
