high temperature full ceramic ball bearing 6805

Specifications

Good quality full ceramic ball bearing 6805

1.Feature of Good quality 6805 full ceramic ball bearings

(1)High speed bearing

(2)High temperature-resistant bearing

(3)Corrosion-resistant bearing

(4)Antimagnetic bearings

(5)Electric-insulated bearing

• Deep groove ceramic ball bearing
  Bearing No.	Boundary dimensions(mm)			Mass(kg)	(refer)
  	d	D	B	ZrO2	Si3N4
  688CE	8	16	4	0.0025	0.0014
  689CE	9	17	4	0.0027	0.0015
  6800CE	10	19	5	0.004	0.0021
  6801CE	12	21	5	0.005	0.0025
  6802CE	15	24	5	0.005	0.0029
  6803CE	17	26	5	0.005	0.0029
  6804CE	20	32	7	0.013	0.007
  6805CE	25	37	7	0.016	0.009
  6806CE	30	42	7	0.018	0.01
  6807CE	35	47	7	0.021	0.011
  6907CE		55	10	0.058	0.031
  6808CE	40	52	7	0.02	0.013
  6809CE	45	58	7	0.029	0.016
  6810CE	50	65	7	0.038	0.021
  6811CE	55	72	9	0.06	0.03
  6812CE	60	78	10	0.08	0.04
  6813CE	65	85	10	0.1	0.05
  6814CE	70	90	10	0.1	0.056
  6314CE		150	35	1.98	1.07
  6815CE	75	95	10	0.11	0.06
  6816CE	80	100	10	0.12	0.063
  6817CE	85	110	13	0.2	0.11
  6818CE	90	115	13	0.21	0.12
  6819CE	95	120	13	0.23	0.12
  6820CE	100	125	13	0.24	0.13
  6821CE	105	130	13	0.25	0.14
  6822CE	110	140	16	0.38	0.21
  6824CE	120	150	16	0.41	0.22




  2. Description of  ceramic bearings

Ceramic ball especially Si3N4 have the following performance as low density, high strength, low friction coefficient, electrical and magnetism resistance, wear resistance, well rigidity, lubrication and maintenance free when working, it's the best choice for rollers (inner ring and outer ring are made by metal) of the hybrid construction which are used in high-speed, high accuracy and long life environments. Normally, GCr15 or (AISI440C,316 304) makes inner ring and outer ring; The ceramic ball can adopt ZrO2, Si3N4 or Sic.

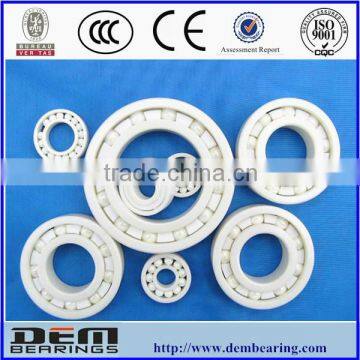

3. Photos of  full ceramic ball bearing
