Home > Products > LED Wall Washer Lamp > CE RoHs Indoor 12W IP65 Dmx Led Wall Washer

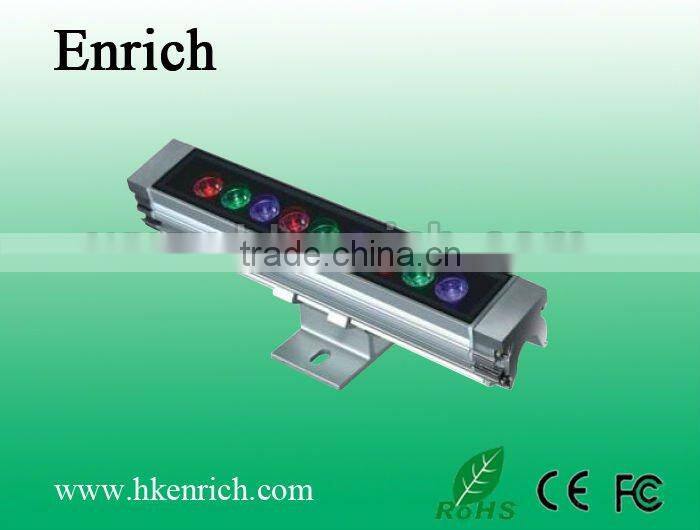

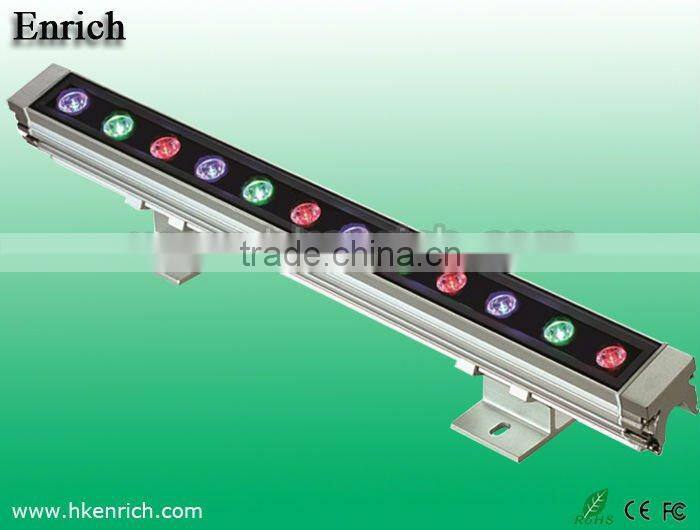

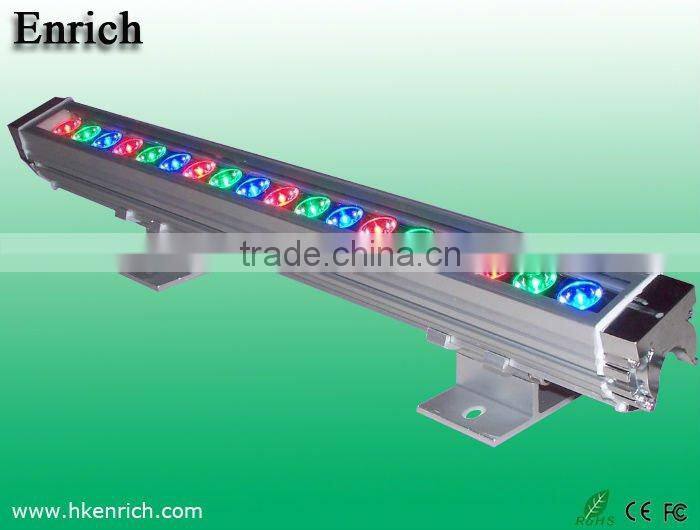

CE RoHs Indoor 12W IP65 Dmx Led Wall Washer
- shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Input Voltage(V) | AC100~260 | Lamp Power(W) | 12 | |
| Working Lifetime(Hour) | 50000 | IP Rating | IP65 | |
| Certification | CE, FCC | Place of Origin | Guangdong, China | |
| Brand Name | Enrich | Model Number | EN-310-HW12-RGB |
Product Description
Specifications
dmx led wall washer1. IP65
2. High Power LED
3. AC100V~AC260V(50/60Hz)
Led wall washer light: 1. beautiful shape, small volume and light weight. 2. 0.5m and 1m are available.
led wall washer light , led wall washer, colorful power led wall washer wall washer, colorful power led wall washer,wall washer ,led lighting ,led wall light ,led dmx wall washer, led outdoor spot lamp ,led high power wall washer ,high power led light, led light fixture,led spotlight ,led color changer
Application:

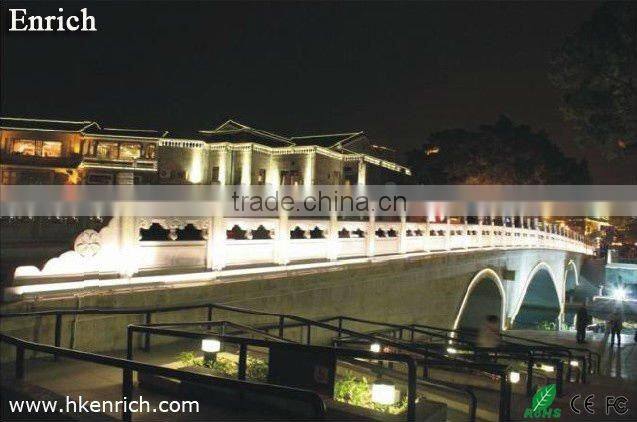

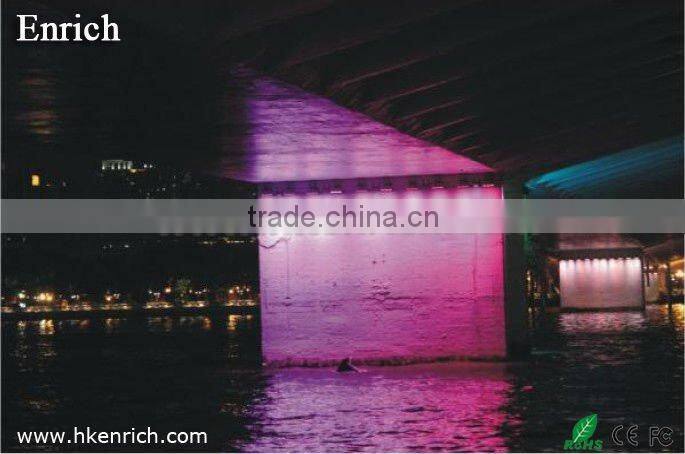

The wall washer can be widely used for indoor or outdoor of commercial buildings, meeting room,
showroom, stage lighting, etc.
Parameter:
Product Name: | 310 Mini wall washer | Light source | High power LED |
Input voltage | AC100V~AC260V(50/60Hz) | R4,G4,B4 | |
Max Power | 12Watts | Viewing angle | 10°~ 120°(routine:50°) |
LED spur track current | 350 mA | Project distance | 20~50m |
Signal standard | DMX512(RS485) | Kinds of colors | 16777216 |
Controlling way | DMX controller, DMX console | Environment temperature | 0°C ~ +45°C |
Weight | 1.45KG | IP Rating | IP65 |
Connection Port:

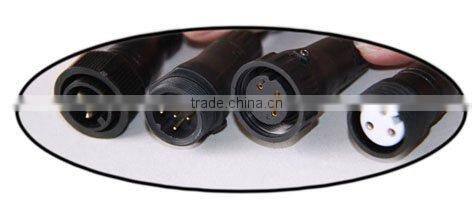

(in the following picture, the wire connector is 3-pin waterproof male connector, 5-pin waterproof male connector, 5-pin waterproof female connector and 3-pin waterproof female connector. )
- 1pc Input connector for power supply, 3 pins male connector
- 1pc Output connector for power supply, 3 pins female connector
- 1pc standard input connector for DMX signal, 5pins male connector
- 1pc standard output connector for DMX signal, 5pins female connector
Coder and Controller
310 mini wall washer is compatible to normal DMX 512 console and adjust DMX channels automatically. Every light has three channels and each channel has 255 degrees to control the brightness. For example, the DMX channels of the first downlight is 1, 2, 3, then the second is 4, 5, 6, …till 512. The biggest of the number of the wall washer should be less than 510. Therefore, a normal DMX 512 console can control 32pcs wallwashers,if you want to control more,an amplifier added,another 32pcs wall washer connecting,and so on (Elaborate on DMX512 Controller box I).
