4 Poles Connector M8 Electrical Metal Connector (L102-M8-T0406)
US$ 3 - 5
/ Piece
10 Pieces(Min. Order)
- Shenzhen
- Credit Card
You May Like
Product Details
| Place of Origin | China | Brand Name | SZCNT | |
| Model Number | L102-M8-T0406 | Type | Other | |
| Application | Other, Audio & Video | Gender | Male |
Product Description
Specifications
4 poles connector M8 electrical metal connector (L102-M8-T0406)rated current:4A
degree of protection: IP67
ternimation:screw
| number of contacts | 4 |
| connector locking system | screw |
| termination | screw, solder |
| wire guage | screw 0.14-0.5mm2 (AWG26-20), solder 0.25mm2 (AWG24) |
| Cahie outlet | 3.5-5mm |
| degree of protection | IP67 |
| mechnical endurance | biatec>50 mating cycles, screw>100 mating cycles |
| working temperature | -40°C~+85°C |
| rated voltage | 30V |
| rated impulse voltage | 800V |
| pollution degree | III |
| over votage catalogorie | II |
| material group | III |
| rated current (40°C) | 4A |
| contact resistance | ≤3MΩ |
| material of contact | CuSn (bronze) CuZn(brass) |
| contact plating | Au (gold) |
| material of contact body | PA (UL 94 HB) |
| material of housing | PBT/PA/CuZn (brass) |

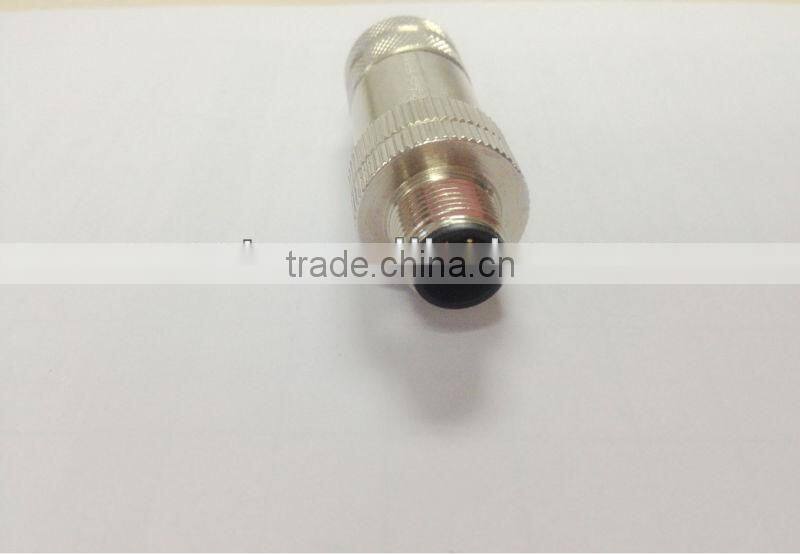

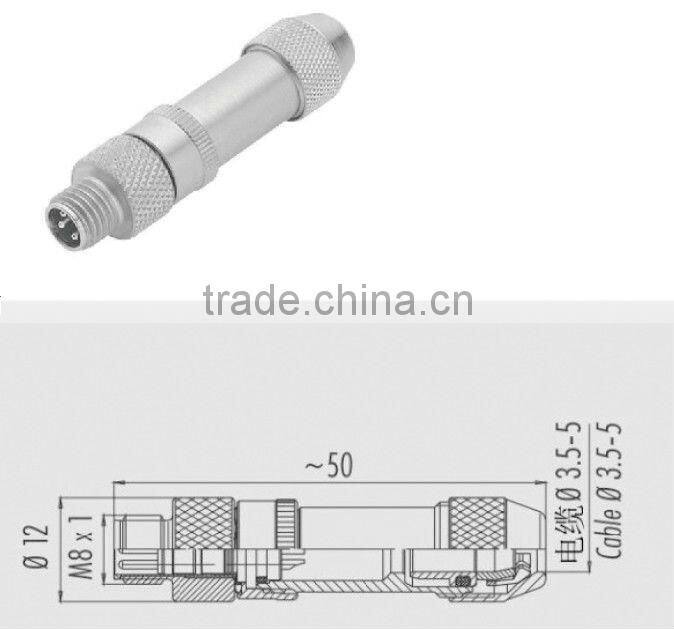

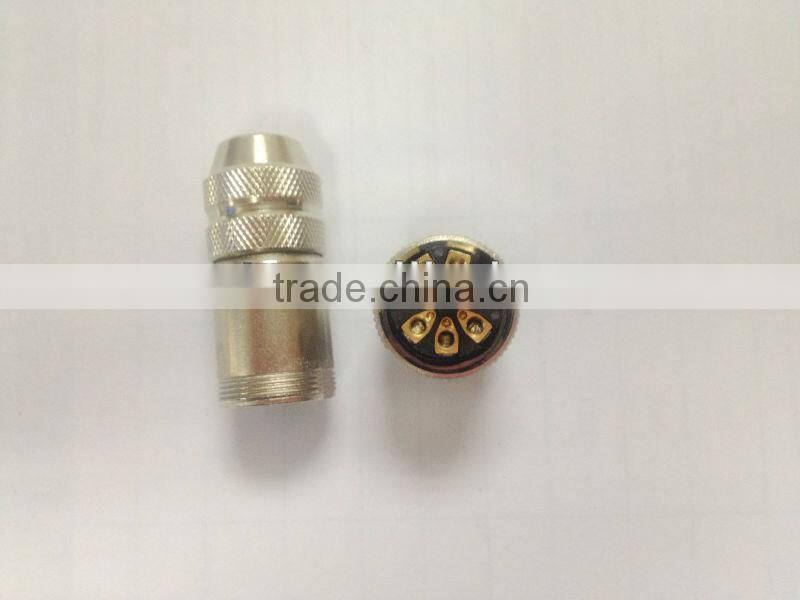

4 poles connector M8 electrical metal connector
