6 pin electric circular connector

Specifications

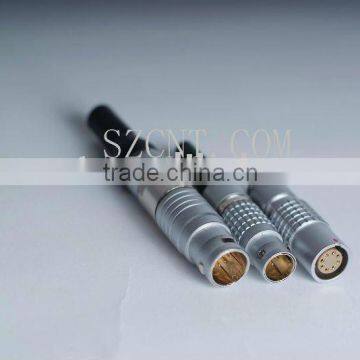

CNT07 6 pin electric circular connector , metal push-pull electrical connector

6 pin electric connector, connector socket, cable plug connector, quick disconnect connector.

Detailed Product Description

They are multi-pith, small-sized, push-pull connection and screened electrical connector.

The screened electrical connector can be used safely and conveniently, and can connect and separate quickly.

The types of the metal electrical connector: solder and PCB.
Socket assemble female. Plug assemble male.

According to the surroundings it is divided into general (B) and hermetic (K) type.

Metal electrical connector, with nicety in appearance, can be used for some industrial fields, such as communication, electronics and medical equipments and it is specially suited for electrical connectors in some instruments and equipments which should be screened and be connected and separated frequently.

General Technical Characteristics
Environmental Temperature Range           -50°C~+125°C
Insulation Resistance           >5000MΩ
Mechanical Endurance           >5000times(Connection and separation)

Straight Plug with cable

CNT07-FGG.1B.306.CLAD62=straight plug,fixing pin(G),with wire clamp,1B serises,Multi pin type,6Pin,brass plated outshell,PEEK insulator,solder male pin,suitable for external diameter 6.0mm cable D type wire clamp.

Float Receptacle

CNT07- PHG.1B.306.CLLD62Z=float receptacle,fixing pin(G), with wire clamp,1B serises,multi pin type,6pin,brass plated outshell,PEEK insulator,solder female pin, suitable for external diameter 6.0mm cable D type wire clamp. With strain relief tail nut.

Fixed Receptacle

CNT07- EGG.1B.306.CYM=Fixed Receptacle,fixed nut,fixing pin(G),1B serises,multi pin type,6 pin,brass plated outshell,PEEK insulator,clamp female pin,

Fixed bi-pass

CNT07- RJG.1B.306.CLA=Straight fixed bi-pass,fixed nut,flange with fixing pin(J),other with fixing pin(G),1B serises,multi pin type,6pin,brass plated outshell,PEEK insulator,male or female pin.
