Home > Products > Audio & Instrumental Tools > Alctron DI2100N Active Direct Box

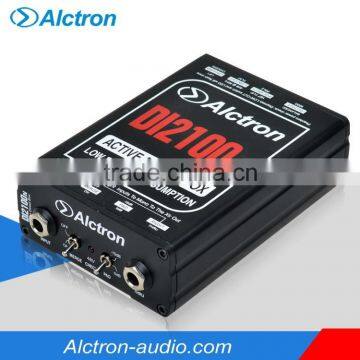

Alctron DI2100N Active Direct Box
- Ningbo
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Alctron | |
| Model Number | DI2100N |
Product Description
Introduction
DI2100N is a great sounding active direct box that has been optimized to produce maximum headroom while working within the limited current available from
standard 48V phantom power. By employing a unique switching power supply, the DI2000 is capable of peak transients to 9 volts without choking. The result is
lower harmonic distortion, half the inter-modulation distortion and significantly improved dynamics over other DIs. It features attenuation, 180.polarity reverse and
ground lift function. Because it is adopted an advanced power interchange circuit design, it can be applied for various occasion requiring phantom power. Perfect
for acoustic guitar and bass.
Specifications
* Dynamic range: 130dB
* Signal to noise: 119dB@100Hz
* Maximum input: 10V
* Frequency range: 10Hz to 40kHz
* Linearity 20Hz to 20kHz: 0.1dB
* Phase coherence: 10 degrees at 20 Hz 0 degrees at 1kHz
* Distortion at 20Hz: < 0.5%
* Input impedance: 220k ohms
* Output impedance: 600 ohms
* Construction: Welded steel
* Input connectors: Two 1/4 in. phone
* Output connectors: XLR male
