Home > Products > Carbide strips/plates > Good Wear Resistance Tungsten Cemented Carbide Strips
Good Wear Resistance Tungsten Cemented Carbide Strips
- Shenzhen Shanghai Ningbo Qingdao etc
- T/T D/P D/A Money Gram Credit Card PayPal
You May Like
-
Good Wear Resistance K20 Tungsten Cemented Carbide Wear Plate
-
Factory Directly Supply 330mm Length K20 Tungsten Carbide Square Bars
-
Factory Directly Supply C2 Tungsten Carbide Flat Bars
-
100% Virgin Material Tungsten Carbide Rectangular Bars
-
Factory Supply Cemented Carbide Square Bars
-
ZZJG Factory Supply Cemented Carbide Blanks
Product Details
| Place of Origin | Hunan, China | Brand Name | ZZJG or OEM | |
| Model Number | Available | Dimensions | L from 20 to 320 mm |
Product Description
Good Wear Resistance Tungsten Cemented Carbide Strips:
Good Wear Resistance Tungsten Cemented Carbide Strips:
A,The guide of the tolerance of Good Wear Resistance Tungsten Cemented Carbide Strips:
Dimension (mm)
| from 1.0 to 2.5 | from 2.5 to 5.0 | from 5.0 to 11.0mm | from 11.0 to 18.0 | from 18.0 to 25.0 | from 25.0 to 35.0 |
| Tolerance | +0.20 | +0.25 | +0.30 | +0.40 | +0.50 |
+0.60
|
Dimension(mm)
| from 35.0 to 45.0 | from 45.0 to 55.0 | from 55.0 to 70.0 | from 70.0 to 90.0 | from 90.0 to 110.0 | over 110 |
+0.70
| +0.80 | 0.90 | +1.00 | +1.10 | +2.00 | +2.50 |
B,Good Wear Resistance Tungsten Cemented Carbide Strips,Grade Details for your reference:
If you can't find the right one bellow,just email us for details requirements.
| ISO Code | Grade | Density | HRA | TRS |
| K05 | JGR05 | 15.15 | 94.00 | 2000 |
| K10UF | 14.90 | 93.00 | 2600 | |
| K20 | YG6 | 14.90 | 91.00 | 2450 |
| YG8 | 14.70 | 90.00 | 2000 | |
| JG08 | 14.65 | 90.00 | 3000 | |
| K30UF | 14.45 | 91.20 | 2600 | |
| K30S | 14.50 | 89.50 | 3100 | |
| K40S | 14.30 | 86.50 | 3100 | |
| K30 | YG11 | 14.45 | 88.50 | 2600 |
| K50S | 14.00 | 86.50 | 3100 | |
| K40 | YG15 | 14.10 | 87.00 | 2600 |
| JG15A | 14.00 | 87.50 | 3000 | |
| K50 | YG20 | 13.60 | 85.00 | 2600 |
| JG20 | 13.65 | 85.00 | 3200 | |
| YG20C | 13.60 | 83.00 | 2600 | |
| YL40B | 13.20 | 81.00 | 3000 |

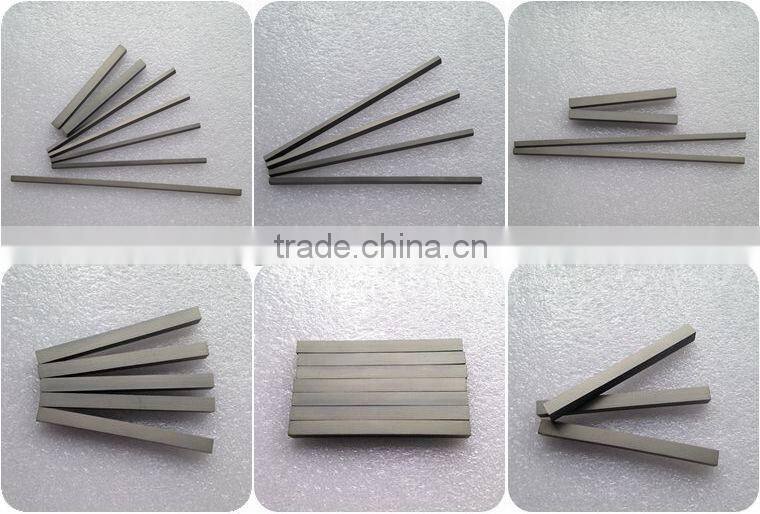

C,Good Wear Resistance Tungsten Cemented Carbide Strips,the product's pictures for your reference:
(Also we can make the carbide strips according to your drawings and samples)
D,Good Wear Resistance Tungsten Cemented Carbide Strips,Some types and sizes for your reference:
If you don't find the sizes you wanted,just contact us,we will suppy our cataloug to you.
| TYPE | L(mm) | W(mm) | H(mm) |
| CTA50*34 | 50 | 34 | 1.5 - 50 |
| CTA75*37 | 75 | 37 | 1.5 - 50 |
| CTA85*85 | 85 | 85 | 1.5 - 50 |
| CTA100*100 | 100 | 100 | 1.5 - 60 |
| CTA105*105 | 105 | 105 | 1.5 - 70 |
| CTA110*110 | 110 | 110 | 1.5 - 70 |
| CTA120*120 | 120 | 120 | 1.5 - 70 |
| CTA150*80 | 150 | 80 | 1.5 - 70 |
| CTA180*180 | 180 | 180 | 1.5 - 70 |
| CTA200*200 | 200 | 200 | 1.5 - 70 |
| CTA250*250 | 250 | 250 | 1.5 - 70 |
E,Except for Good Wear Resistance Tungsten Cemented Carbide Strips,the other produts you might be interested in:
![]() | ![]() | ![]() |
| Carbide Dies | CNC Inserts | Carbide Saw Tips |
| Good Wear Resistance Tungsten Cemented Carbide Strips | ||||||||
A,Factory Info:
----As to the detailed introduce of our factory,pls check "COMPANY Profile" and "Certificates Display" pages,also you can get a quick idea by CLICKING the following pictures.

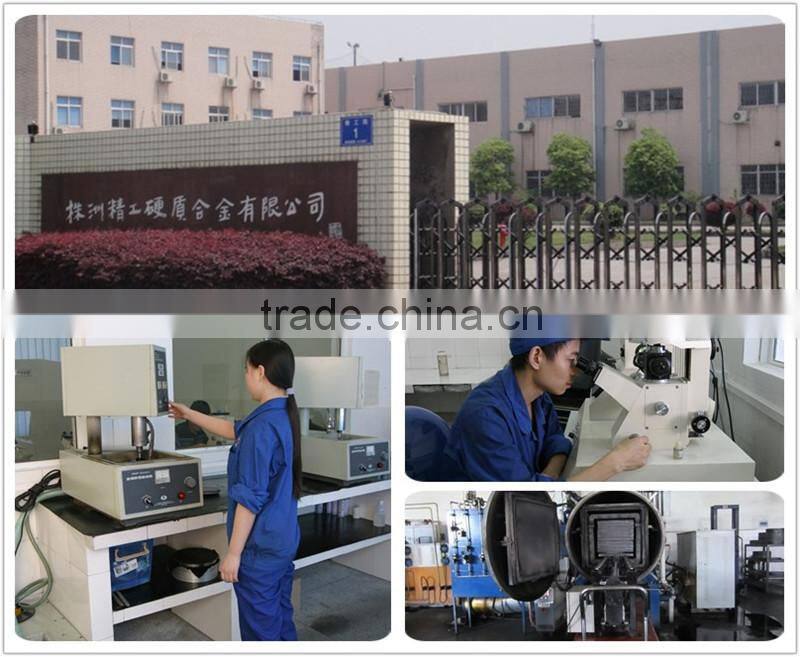

B,Factory View:
----CLICKING the following picture to check our certificates.
Good Wear Resistance Tungsten Cemented Carbide Strips | |||||||
A,Packing:
Regarding to the packing of Tungsten Cemented Carbide Strips
we often use:
Inner by neutral plastic box with bubble bag,Outter by Carton Box,or as request by customer.
Also pls see the details of some packing styles from our Factory.
B,Shipping:
As to Carbide Strips:
| Why Choose Us? | ||||||||
As to Carbide Strips,why choose us?
1 We are a REAL factory located in Zhuzhou,which is the tungsten carbide base in China,manufacturingTungsten Carbide Tool Parts with best production capability,best quality control, Best Service with about 200 employees here for over 10 years.
2. We are Alibaba Assessed 4 years Gold Supplier.
3.Our output is over 50 tons per month,fast delviery with competitve price.
4.Certificated by RoHS,ISO 9001:2008,ISO 14001:2004.
5.100% QC inspection Before Shippment
6,Our products are produced by 100% Virgin material.
7,We can produce the non-standard items according to your samples or drawings.
| Zhuzhou Factory Directly Supply Tungsten Carbide Strips | ||||||||
Q1:Are you the real reliable factory or just a trader company?
A1: We are the REAL factory located in Zhuzhou,China with over 200 employees here,and now explanded our factory to 46690 square meters.also welcome to visit our factory!
Q2:Can you make the goods according to our drawings or samples?
A2: YES,we have our own mould systems and teams,and most of our technicals were graduated from Universtity,also our technical manager is the Doctor of Powder Metallurgy.
Q3:Can we get support if we have our own market position?
A3: Please inform us your detailed mind on your market demand, we will discuss and propose helpful suggestion for you, to find the best solution for you.
| How to Contact Us? | ||||||||
Whether you are looking for the right tool parts or need help with one you already own, we,
ZHUZHOU JINGGONG CEMENTED CARBIDE CO.,LTD. are here to help:
Order Support Product Support
Contact:Ms. Ada Linn Contact:Mrs.He
Tel:0086-731-22896758 0086-731-22896708
Mob / What's APP : 0086-18973371417
Wechat ID: adalinn
Skype : ada_linn
Send your Inquiry Details of Carbide strips in the Below, just click "Send"Now! Free samples are waiting for you.
