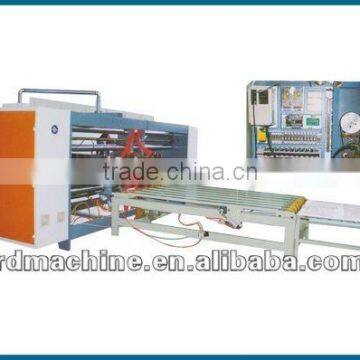

[RD-SDJ2400]Semi automatic twin piece corrugated carton stitching machine
Negotiable
/ Set
1 Set(Min. Order)
- Shanghai or Ningbo
- T/T
You May Like
-
[RD-SDJ2700]Semi automatic twin piece corrugated carton stitching machine
-
[RD-BDJ2400A]Semi automatic single piece corrugated carton stitcher machine
-
[RD-BDJ2700A]Semi automatic single piece corrugated carton box stitching machine
-
[RD-BDJ3000A]Semi automatic single piece stitching machine
-
[RD-BDJ2400B]Semi automatic single piece corrugated carton stitching machine
-
[RD-BDJ2700B]Semi automatic corrugtaed carton stitching machine
Product Details
| Condition | New | Application | Other, Machinery & Hardware | |
| Packaging Type | Cartons | Packaging Material | Plastic | |
| Automatic Grade | Semi-Automatic | Driven Type | Electric | |
| Power | 3KW | Place of Origin | Zhejiang, China | |
| Brand Name | RuiDa | Model Number | RD-SDJ2400 |
Product Description
Specifications
- Semi auto twin piece stitcher- High quality and best service
- Competitive price
- Easy operation and maintenance
Features:
- The dual- purpose stitcher machine is able to nail monolithic carton, twin piece forming carton, and irregular carton.
- Available for large carton stitching, the nail-feeding is convenient and quick with high efficiency.
- The size adjustment is fully electric controlled, it could be changed within 2-3mins.
- The strengthened nail, single nail, and double nail can be accomplished in a lump.
- Equipped with auto counting function in the feeding unit, which is dedicated to the strapping of finished product.
- Nail pitch is free adjusted and set by the screen between 30-120mm.
- It's available to stitching the special carton without cover.
- It's available to display the machine fault and fault cause on the screen.
Specification:
| Model | Unit | RD-SDJ2400 | RD-SDJ2700 | RD-SDJ3000 | |
| Paper size(A+B)*2 | Max | mm | 4800 | 5400 | 6000 |
| Min | mm | 1060 | 1060 | 1060 | |
| Paper Length(A) | Max | mm | 2250 | 2550 | 2850 |
| Min | mm | 350 | 350 | 350 | |
| Paper width(B) | Max | mm | 1200 | 1350 | 1500 |
| Min | mm | 180 | 180 | 180 | |
| Paper height(C+D+C) | Max | mm | 1800 | 1800 | 1800 |
| Min | mm | 400 | 400 | 400 | |
| Min first stitching pitch(D) | mm | 25 | 25 | 25 | |
| Max TS width(E) | mm | 40 | 40 | 40 | |
| Stitching pitch | mm | 30-120 | 30-120 | 30-120 | |
| Qty. of stitching | pcs | 1-99 | 1-99 | 1-99 | |
| Speed | stitch/min | 350 | 350 | 350 | |
| Horsepower | HP | 18 | 18 | 18 | |
| Weight | T | 4 | 4 | 4.2 | |
| Overall dimension(L*W*H) | mm | 6000*3550*1800 | 6000*3550*1800 | 6000*4150*1800 | |
