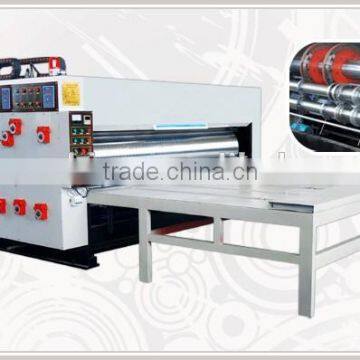

[RD-SB1500-3000-3] Semi-automatic chain feeding cardboard flexo ink printer slotter machine with 3 color

Specifications

Specifications:

Features:

• Semi-automatic chain feeding cardboard flexo ink printer slotter machine with 3 color.
• It's very convenient to control the printing slotting units, with the characteristics of order storage ,quick order changing and convenient operation.
• All the transmission gears use 45# chrome steel after high-frequency quenching and grinding in accordance with national standard.
• All the transmission rolls are made of high quality steel with the chrome plated and grinding surface.
• Motorized detachment and combination, pneumatic locking and loosening of each unit, along with alarm ring and light when the machine unit moving to improve the operation safety.
• Different alarm ring will along with the machine launching and stopping.
• The machine is launched by pressing the start button with two hands, which ensure the operator's safety.
• Each unit equips with emergency stop button.
• Electrical components, transmission bearings and gears, pneumatic control components etc. are all in accordance with the national standard.
• Equipped with automatic lubrication system.
• The machine has single-color,double-color,three-color,four-color and five-color available for option

Chain feeding unit:

• Semi auto chain feeding, side plate is adjustable to adapt the different size of cardboard.
• Equipped with 5 feeding chains, and 3 feeding push plates for each chain.
• The chain rail is made of high strength engineering plastic, which is low noise, and long life time.
• The height of the workbench is adjustable.
• Automatic counter for recording the cardboard supply quantity to show the output.

Printing unit:

• All the rolls and shafts are made of high quality steel, with the treatment of dynamic balance correction, grinding and chrome plated.
• The phase position could be adjusted CW or CCW easily with 360 degree because of the equipping planetary gearing  mechanism.
• The printing plate is hanged by the hanging plate device, the printing roll is able to clockwise rotate and counter clockwise rotate which controlled by the foot switch, it's very convenient for installation and dismounting of printing plate.
• The inker automatically breaks away from surface to protect printing plate from damage in case of mechanical shut down.
• Gear transmission uses circulating lubrication oil supply system to minimize noise and extend service life and improve the precision of chromatic printing.
• Manual gap adjustment via worm reducer with graduated dial indication such as gap between rubber roll and anilox roll, gap between anilox roll and printing roll etc.
• Equipped with electromagnetic clutch break system to fix the printing phase, when separate the printing unit for adjusting the printing phase, the break system will prevent the gear move, keep the original position.
• Phase clear memory and reset after printing plate cleaning.
• The distributing rubber roll is covered by wear proof rubber, it's good at ink transmission.

• The inker automatically get empty to rotate device,prevent ink from being dried.

• Steel anilox roll with the treatment of grinding, pressing overlapping curve and chrome plated.

Slotting unit:

• The slotting phase position could be adjusted CW or CCW easily with 360 degree because of the equipping of planetary gearing mechanism.
• Double slotting configuration, after pressing of prepressing wheel and pressing wheel, the carton box will reach better forming effect.
• Precision linear guide horizontal displacement systems is equipped with slotting unit, the slotting knife seat, pressing wheel, trimming knife will moving precisely.
• Grooving synchronism adjust the height of carton.(Manually operation)
• The slotting knives are made of high quality alloy steel, with heat treatment and grinding which ensure a long life.
• Manual gap adjustment of prepressing wheel, pressing wheel, slotting knife seat.
• Punching hole device is optional.

Our company is specialized in cardboard flexo ink printer slotter machine . We have exported our products to many countries in Europe,Africa,Middle East and South-east Asia. The quality of the product and our good service have won us good reputation among our customers,thus establishing a long term business relationship with them .

If you have any other questions , pls feel free to contact me .

Looking forward to beginning our cooperation in the near future.
