Product Details
Place of Origin | Hunan, China | Brand Name | ZZJG | |
Model Number | YG6,YG8, YG11, YG13, YG15, BK8,VK8 etc | Type | Power Tool Parts |
Product Description
100 Brand New ZZJG Tungsten Carbide Valve Ball and Valve Seats:
The Basic details of Tungsten carbide valve ball and valve seats: |
- Diameter Range:0.6mm--70mm, Undertake order of non-standard size work. - The size tolerance can be reached 0.001mm, and the grinding accuracy is between G3-G50 as your required. |

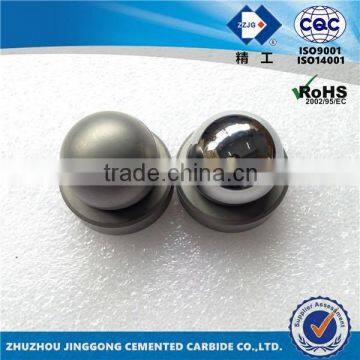

The Pictures of Tungsten carbide valve ball and valve seats: |
Specifications of Tungsten carbide valve ball and valve seats: |
Item API Code | V11-106 | V11-125 | V11-150 | V11-175 | V11-200 | V11-225 | V11-250 | V11-375 |
SD±0.025 | 15.88 | 19.05 | 23.83 | 28.58 | 31.75 | 34.93 | 42.88 | 57.15 |
H +0.51-0.25 | 12.70 | 12.70 | 12.70 | 12.70 | 12.70 | 12.70 | 12.70 | 19.05 |
OD0-0.13 | 20.14 | 23.32 | 29.67 | 35.26 | 37.54 | 43.69 | 51.05 | 78.03 |
ID±1.27 | 11.68 | 13.97 | 17.02 | 20.96 | 24.38 | 26.92 | 33.27 | 43.18 |
API No. | Seat Size | Ball Size |
V11-106 | 1-1/16" | 5/8" |
V11-125 | 1-1/4" | 3/4" |
V11-150 | 1-1/2" | 15/16" |
V11-175 | 1-3/4" | 1-1/8" |
V11-200 | 2" | 1-1/4" |
V11-225 | 2-1/4" | 1-3/8" |
V11-250 | 2-3/4" | 1-1/16" |
V11-375 | 3-3/4" | 2-1/4" |
It's workable to show the mould for bove ball and seat when you visit our factory
Grade | Sphericity | Diameter Tolerance | Max. Surface Roughness |
G3 | 0.000003" | +/- 0.00003" | 0.5 |
G5 | 0.000005" | +/- 0.00005" | 0.8 |
G10 | 0.000010" | +/- 0.0001" | 1 |
G25 | 0.000025" | +/- 0.0001" | 2 |
G50 | 0.000050" | +/- 0.0002" | 3 |
G100 | 0.0001" | +/- 0.0005" | 5 |
G200 | 0.0002" | +/- 0.0010" | 8 |
G500 | 0.0005" | +/- 0.002" | |
G1000 | 0.001" | +/- 0.005" |
Application: |
Mainly used for the sealing of valves of oil pumps in petroleum industry's sand containing wells, viscous oil wells, sea oil wells and high pressure sulfur resistant oil wells,etc. We can manufacture depends on customers' requirement. |
CNC Inserts | Carbide Mill Roller | Carbide Plate |
Are you looking for the right cooperative factory for Tungsten Carbide ball ? |
Just pls send your Inquiry Details as the Below:
1. Are you the real reliable factory or just a trader company? Re: We are the REAL factory located in Zhuzhou,China, we currently have over than 200 employees,
2. There have many companies called they are 'factory', how can I identified the truth? |
