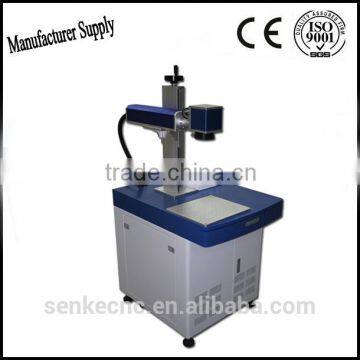

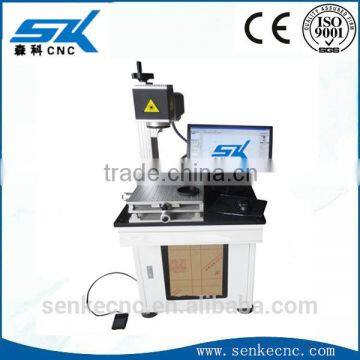

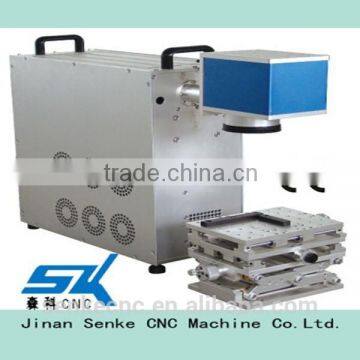

Metal Jewellery Fiber Laser Marker on Key Board Metal Business Card Plastic Glass Cup Steel Box in High Precission
- Qingdao/Shanghai/Tianjin
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
20W 30W 50W Fiber Laser Marking Machine on Key Board Metal Business Card Plastic Glass Cup Steel Box in High Precission Supplier's Choice
-
Optical Fiber Laser Marking Machine on Key Board Metal Business Card Plastic Glass Cup Steel Box in High Precission Supplier's Choice
-
Egg Marking Machine on Key Board Metal Business Card Plastic Glass Cup Steel Box in High Precission
-
Clothes Marking Machine on Key Board Metal Business Card Plastic Glass Cup Steel Box in High Precission
-
Marking Machine for Metal Parts on Key Board Metal Business Card Plastic Glass Cup Steel Box in High Precission
-
Portable Marking Machine for Steel on Key Board Metal Business Card Plastic Glass Cup Steel Box in High Precission
Product Details
| Condition | New | Laser Type | Fiber Laser | |
| CNC or Not | Yes | Cooling Mode | Air Cooling | |
| Control Software | EZCAD | Graphic Format Supported | AI, BMP, DST, DWG, DXF, DXP, LAS, PLT | |
| Working Accuracy | ±0.001mm | Place of Origin | Shandong, China | |
| Brand Name | Senke | Model Number | SKD | |
| Power(W) | 10W/20W/30w | Certification | CCC, CE, GS, ISO, SGS, UL, CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
metal jewellery fiber laser marker on key board metal Business Card plastic glass cup steel box in high precission
Please visit this fiber machine working video: http://youtu.be/O5OA55Wg0Uc
http://youtu.be/tRDmoyYAS_g
Accessories of laser marking machine
Samples of laser marking machine
Color marking:
Features of laser marking machine
1.power controlled by software can be adjusted.
2.Impored RF metal tube, with whole life use.
3.Large marking scope, the mark is clear and not easily destroyed.
4.fast working speed and consistent performance.
Technical Parameter:
Model | SKD-10FD | SKD-20FD | SKD-30FD |
Laser Power | 10W | 20W | 30W |
Laser Wavelength | 1064nm | ||
Q-frequency | 20KHz~30KHz | ||
Divergence | 0.3mard | ||
Marking Range | 100*100mm | ||
Minimum Line Width | 0.02mm | ||
Minimum Character | 0.15mm | ||
Marking Depth | 0 ~0.5mm | ||
Engraving Line Speed | ≤7000mm/s | ||
Repeatability Accuracy | ±0.001mm | ||
computer | can choose or not |
|
|
Beam Quality | M2:1.2~1.8 | ||
Marking Format | Graphics, Text, Bar Codes, Two-dimensional Code, Automatically Marking the Date,Batch Number, Serial Number,Frequency,etc. | ||
Graphic Format Supported | bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc. | ||
Working Voltage | 220V±10%/50Hz/4A | ||
Unit Power | <0.5kw | ||
Working Condition:Humidity | 0%-75%,Free of Condensed Water | ||
Applicable industry:
clothing materials, medicine packages, wine packages, building ceramics, beverage packages, cut fabrics, rubber products, nameplates, crafts and gifts, electronics and leather products , all kinds of metal ect .
Applicable materials:
All kinds of nonmetals and metal materials. The machine supports a wide range of marking types including different patterns and graphics, logos, enclosure numbers, serial numbers, and text - for example, the information of producers and target regions, enabling effective prevention of disorderly competition caused by counterfeit products.
Advantages of laser marking machine
1.Operation CD,Users manual ,Software and proper accessories will be offered along with machine.
2.24 hours technical support bu phone,email,skype,whatsapp,or computer remote.
3.the warranty time is 2 years. If any problems of machine parts under “normal use”,new machine parts will be
sent to you sooner.
4.Engineers available to service machinery overseas,fees discussed by both sides.
Thanks for your time reading our machine,hope what we supplied can help your work,anything more needed,just let us know,SenKe always here :-)
If any further details you need, please contact us with "contact" buttom.
