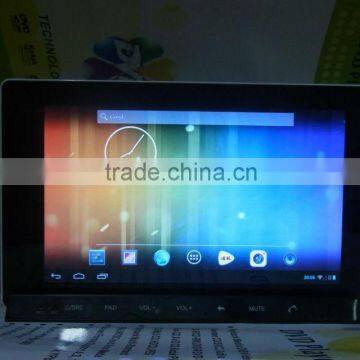

Android 4.2 Car Tablet Capacitive car Multimedia DVD Player with high resolution 1024*600 DM7841C

Specifications

7841 Capacitive Android 4.0 Car Stereos WIFI GPS radio tv  transmitter 3g radio player

 Key Features for Android PAD

-7inch 1024*600 TFT touch screen
- Google Android 4.2 OS

- Built in the latest Capacitive Touch Screen technology, support Multi-touch, also it has better display against sunlight
- Support external 3G (EVDO, WCDMA, TDSCDMA), you can connect a 3G USB Dongle to fit 3G Card
- Support Google Maps online Navigating, you can use GPS Navigating when you online/Android Maps Navigation
- Internal GPS Antenna in PAD, so you can receive Navi signal and navigate after separation still
- Support A2DP Bluetooth on the PAD
- Support BT Transfer on the PAD
- Support Official Software, WORD/EXCEL/POWERPOINT/PDF/TXT
- Support Google Play Store
- 3D Games, Support HD Video Formats, Built-in Speaker and MIC
- Portable, we provide one white leather Case as gift, after separation, one is Car Audio Player, one is Car PAD
Key Features for Car Multimedia System
- ISO 2 Din Size , 7 Inch (16:9) wide Capacitive Touch Screen Monitor
- HD Digital LCD Screen, Resolution: 1024*RGB*600
- Compatible with MP4 AVI WMA DVD VCD MP3 JPG… - 2 Button LED Light Color: Orange and Blue
- 10 Wallpapers and 50 Open Unit Logos for your Choice
- One Button for Blank Screen on main menu
- Multi-language Menu: English/German/Russian/Spanish/Italian/French/Portuguese
- Support A2DP Bluetooth Function, can play stereo music through Bluetooth
- Built-In Bluetooth Function, hands-free operation, built-in Microphone and external MIC Jack
- Radio Tuner, 30 Preset Radio Stations, with RDS function
- Built in VHF/UHF TV Tuner, 95 Preset TV Stations
- USB Port and SD Slot, Support USB Stick and SD Card up to 32GB
- Touch Music Title to play directly, Select Title with small Keypad
- Support Steering Wheel Control, support Subwoofer Audio Output
- Support Car DVR input + Power on + Touch screen
- Hand Brake Control, Remote Control
- Electronic Anti-Shock, Last Position Memory

Description of Detachable Panel -- Car PAD/MID
General
-Operation System: Google Android 4.2
-CPU: A31S Quad-core processors
-RAM: DDR III 2GB
-ROM FLASH: 16GB
-LCD: 1024*RGB*600 HD Capacitive Screen
-Extended memory card: Up to 32GB SD/TF card
-G-SENSOR: 3 axis acceleration sensor and 3D IC hardware acceleration, could realize dynamic 3D game and 3D interface
-WiFi: Built-in High performance, low power consumption, WiFi:802.11 b/g
-3G: 3G Universal Drive,just plug and play, support 3G format: WCDMA/EVDO/TD-SCDMA.
-Camera: Built-in 2MP Camera in front and 5MP Camera in back with flash, DV Recorder,support Panoramic Photograph
-Speaker: 1pc 1W,80hm
-Battery: 3000mA / 3.7V Li-Battery
-Microphone: High sensitivity input, right&left channel
-Size: 190*117*10mm
-Weight: 430g
-Languages: Chinese, English, French, German, Italian, Japanese, Dansk, Russian, Spanish, Portuguese and more customized languages

Slot
-HDMI: Standard, Mini Port, Support DMI1.3; Support screen output
-OTG: Directly play HD movie in Hard disk, digital camera, mobile phone, U Disk and Card reader; Transfer data freely, connect with Printer and other OTG functions
-USB: USB2.0 High Speed
-HOST: HOST 1.1, could connect with mouse, keyboard, U Disk and other peripheral equipment
-SD/TF: Support multimedia Card or Maps Card
-Earphone: 3.5mm Earphone Jack + CVBS Output
-Charge: Micro charger slot, DC 5V input

Internet
-Explorer: Opera, UCWeb, SkyFile, Dolphin and more Exploer for your selection
-Online Entertainment: Online video, TV, Movie, Music, Radio, Video chat
-Online Navigation: Online Google Maps Navigating
-Game: Built-in SD accelerated, perfectly support 3D game
-Expansion Card: Could download more than 20,000 excellent software via Android E-market
-Online Communication, keep connected via Wechat,Twitter,Facebook,Gtalk,Gmail and other google Service
Audio
-Format: MP3, WMA, MP2.OGG.AAC.M4A.MA4.FLAC.APE.3GP.WAV etc. can play from song list directly
-Record: Format: MP3.WMA
-Other: LRC synchronized display; ID3 search; Search by files; Album pictures; User-defined audio effect
-Audio IC: Top Global Cirrus IC, independent audio decoding
-SNR: Noise ration: ≥90dB
Video
-Format: Support AVI(H.264.DIVX.DIVX.XVID).rm.rmvb.MKV(H.264.DIVX.DIVX.XVID).WMV.MOV.MP4(H.264.MPEG.DIVX.XVID).DAT(VCD format).VOB(DVD format).PMP.MPEG..MPG..FLV(H.263.H.264).ASF.TS.TP.3GP.MPG etc, ≥30 formats, playing internet video directly (while downloading)
-Play: Up to 1920*1080 pixels. 30Mb. Fluent play without light spot
-Video output: HDMI 720P to 1080P, full HD output and common video output (AV)

Description of Car Multimedia System

General
Power Supply: DC 12V (Allowable range: 10.8-14.5)
Max Current: 10A
Install Size: 180mm*160mm*100mm
Package Size: 300mm*300mm*160mm
Gross Weight: 3.5kg
Net Weight: 3.1kg
Display
-Screen type: 7 inch Capacitive touch screen
-Resolution: 1024* RGB * 600
-Built-in Accelerator: Yes, very fast response
-One Button for Black Screen: yes, you can shut off display and enjoy music
-Digital or Analog: Digital Touchscreen, very vivid
-Display Clock/Week/Date: yes
Setup
-Wallpaper: 10
-Open Unit Logo: 50
-Button Light choice: Orange/Blue
-Car DVD Part Menu Language: English/German/Russian/Spanish/Italian/French/Portuguese
-EQ: Rock/Pop/Class/Country/Jazz
-DBAS/MBP/LOUD: on/off
-FM Area Setup: Europe/USA1/USA2/Japan/Russia
-RDS Setup: on/off
-Time Setup: Yes, Clock/Week/Date
-Steering Wheel Control: yes

Features
-Built in Counter: yes
-Support Car DVR: yes, can connect our Car DVR to achieve Touch Operation
DVD
-Compatible Format: MP4, AVI, DIVX, DVD, VCD, MP3, CD, WMA, JPEG
-OSD/Audio/Subtitle Language: English/Italian/French/Spanish/Portuguese/German/Latin
-Position of Disc Slot: Behind the detachable Panel
-Auto-Save Function: Yes, expediently watch all kinds of disc continuously
Bluetooth
-Dial/Answer a Call on this unit: yes
-A2DP (Bluetooth Stereo Music): Yes, can play stereo music through Bluetooth
-Built-in microphone: Yes
-Call Records: Dialed Call, Received Call, Missed Call
-External Microphone Jack: yes, on the back
TV
-Digital or Analog: Analog TV Tuner,ATSC/ISDB/DVB-T MPEG2/MPEG4 for option
-TV System: SECAM/NTSC/PAL
-Preset Stations: 95
-TV Antenna Jack: Yes, on the back

Radio
-AM Frequency Range: 522-1620KHz
-AM Increment: 9KHz(EU)/10KHz(USA)
-FM Tuning Range: 87.5-108MHz
-FM Increment: 0.05MHz(EU)/0.1MHz(USA)
-FM Area: Europe/USA1/USA2/Japan/Russia
-RDS: Yes
-Preset Stations: 30 (FM 3*6, AM 2*6)
USB
-Position: On the Back
-Capacity: 32GB
-Show Album/Artist/Time: yes
-Select Title with small Keypad: Yes
-Touch music title to play directly: Yes
SD
-Position: Behind the Detachable Panel
-Capacity: 32GB
-Show Album/Artist/Time: yes
-Select Title with small Keypad: Yes
-Touch music title to play directly: Yes

iPod/iPhone
-Compatible with iPhone/iPad: yes
-Charger iPhone: yes
-Show Playlist on Screen: yes
-Control iPhone on the Touchscreen: yes
-iPhone Audio Input: yes, one iPod cable included
Input
-AUX Video In: Two
-Rear-Camera Video In : One
-iPod Audio In: One
-AUX Audio In: R/L
-Car DVR Input: One
-External Microphone Input: One
-TV Antenna Input: One
-Radio Antenna Input: One
-GPS Antenna Input: One
Output
-Video Out: Two
-Audio Out: R/L
-Surround Stereo Output: 4 x 50w
-Subwoofer Out: One

Control
-Remote Control: Yes
-Back Sight Control: Yes
-Amplifier Control: yes
-Car DVR Control: Yes
-Hand brake Control: Yes
-Steering Wheel Control: Yes
-iPod Control: Yes
-Button Backlight Control: Yes
-Auto Mute Control: Yes
