3/5 Ply Automatic Corrugated Board Plant

No.

Machine name

Specification

Qty

1

RS-1500HA

Hydraulic mill roll stand

Adopt expand clamp type, single side max load weight: 3000kg, diameter of paper reel: 1500mm

5sets

2

Railing and pulley

Each Mill roll stand install two railing and pulley, railing length: 6m

10set

3

SF-320S Single facer

Fingerless type, corrugating roll: Φ320mm, made in Beijing package group, the largest corrugating roll manufacturer in north of China. Digital adjust gluing thickness, corrugating roll and pressing roll’s bearing adopt NSK, Japan, Motorized control gluing width,  transducer adopt Delta brand, Taiwan.

2 sets

4

SD-900 Pre-heater

Pre-heating roll cylinder diameter: 900mm, Electro motion angle wrapping, wrapping angle: 60—220 degree

2 sets

5

SH-900 Pre-conditioner

Pre-heating roll cylinder diameter: 900mm, Electro motion angle wrapping, wrapping angle: 60—220 degree

2 set

6

SH-900 Triplex-

pre-heater

Pre-heating roll cylinder diameter: 900mm, Electro motion angle wrapping, wrapping angle: 60—220 degree

1 set

7

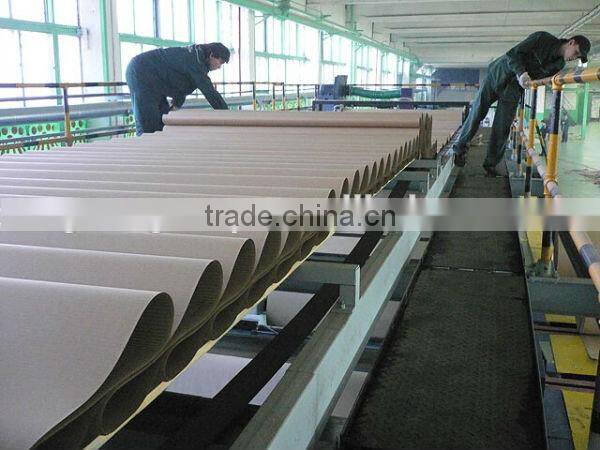

BS-T Bridge Conveyor

Adopt adsorption type, high pressure suction motor automatic correct error running position.

1 set

8

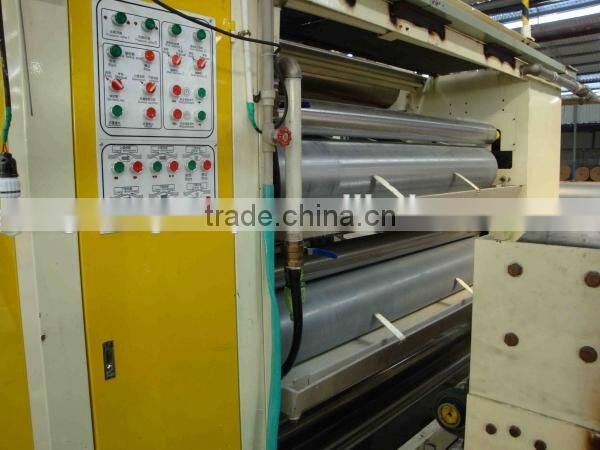

GA-288D Double Layer Gluing machine

Pressing rolls type, gluing roll diameter: 288mm, independent frequency control

1 set

9

DF-768 Double Facer

Adopt round worm gear box type, heating shoes: 12pcs, heating plants surface grinding type, heating plants: 520mm x 18pcs, cotton belt made in Shenyang Fuli

1 set

10

Main drive

Main drive two sides wall plate adopt heavy duty cast wallboard, could be see inner details, oblique gears, long work life. Easy to add lubricate, main drive roll adopt steel type, cast high quality V type rubber, diameter 745mm, low noisy in high speed work.

1set

11

Glue making system

Automatic circle supply glue, save glue. Include main, carrier, storage pot each 1 set, 1set glue station pump and 3 single facer pump, 1 gluing machine pump,  Pipeline provided by buyer

1 set

12

Electric system

Whole production line electric part adopt imported product, brand include Simons or Schneider or Omron. Whole line electric voltage: 380V, 50Hz.

1 set

13

Pneumatic system

Made in Airtac, Taiwan

1 set

14

Steam system

Drain valves made in China. Buyer supply pipelines from boiler to main machine.

1 set

15

SJBDY-1600 Slitter scorer

Adopt 5 blades 8 scorers, whole machine could be do 90mm left-right move, 1mm tungsten carbide alloy steel, long work life,

1 set

16

NC-180N Cutoff

Helix blade type, cut blade made in Jeefeng, Taiwan, computer system could storage many different cutting orders, computer system made in Taiwan. Main bearing made in NSK, Japan, whole machine cutting length: 500-9999mm, cutting precision ±1mm in steady speed, Germany design AC servo motor, Germany Kobe driver, inner spry lubricate oil for gears, low noisy in high speed, two sides with windows could see inner running.

1 set

17

CF-150 Sheet delivery

Single layer type, two section transport carton sheets. Max speed 150m/min type

1 set
