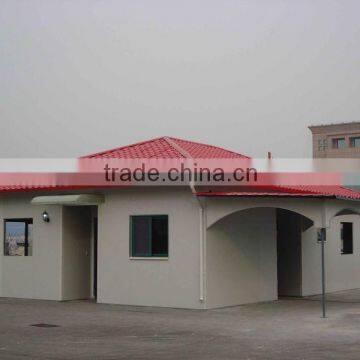

sandwich panel steel structure movable prefab house

No.

Sort

Name

Specification

1

Specification

length

According to clients' requirement.

2

Width

According to clients' requirement.

3

Ridge height

According to clients' requirement.

4

Inside height

According to clients' requirement.

5

Standard accessory

Wall Panel

75mm EPS sandwich panel, 0.42mm color steel sheet ,density of polystyrene foam (EPS sandwich panel) is 12kg/m3, Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.663w/.k.

6

Roof Panel

50mm EPS sandwich panel, 0.35mm -0.42mm color steel sheet, density of polystyrene foam is 12kg/m3 . Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.553w/·k.

7

Door(D-1)

Steel security door with dimensions of 840x1950mm, furnished with a cylinder lock with 3keys. Doorframe is made of Stainless steel, 50mm thickness

8

Door(D-2)

EPS sandwich panel door with dimensions of 750x2000mm, furnished with a cylinder lock with 3keys. Doorframe is made of aluminum, 50mm thick EPS insulation foam.

9

Window(W-1)

Color steel sliding window with dimension of 1100mmx800mm, vertically sliding window or horizontally sliding window

10

Window(W-2)

Color steel sliding window with dimension of 1100mmx400mm, vertically sliding window or horizontally sliding window ,

13

Channel beams

material:Q235. Painted

14

Column

material:Q235, Galvanized

15

Roof beam

The trusses are composed of Q235 steel , Galvanized

17

Option

Elevated ceiling

Ceiling of mineral wool acoustic panel, or

Ceiling of aluminium panel

18

Elevated floor

Steel structure with 14mm plywood

19

Decorative floor

PVC, laminated or ceramic tile

20

Drainage system

Provided plan, design and construction

21

Electric system

Provided plan, design and construction

22

Technical parameter

Bearing load

50kg/m²

23

Wind pressure:

0.5KN/M2

24

Fire proof

B2 grade

25

Temperature

resistant

-15--50

26

Earthquake resistant

8 magnitude earthquake
