High Speed Fully Automatic Cardboard Box Folder Gluer With Automatic Strapping Machine

Specifications

  G&Z COMPANY

 High speed fully automatic cardboard box folder gluer with automatic strapping machine

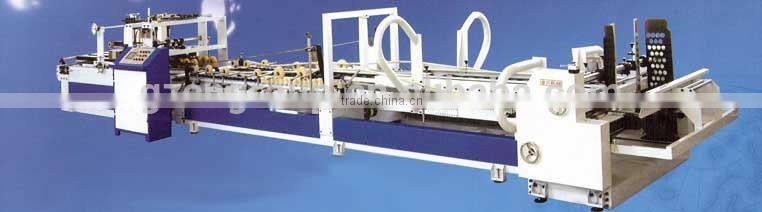

Machine picture

Machine introduce

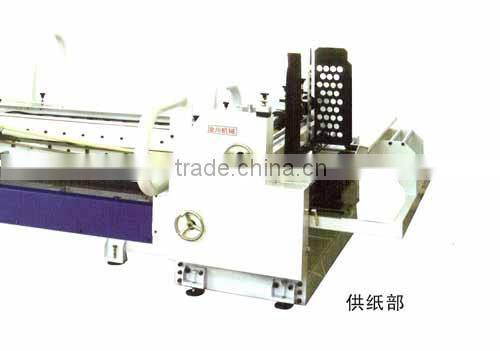

AG series automatic stitching machine consists of automatic feeding section, gluing folding and stitching section and counting and stacking section. Touch screen input.

Compamy

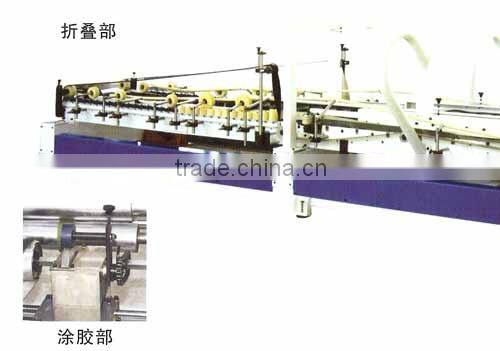

B.Gluing and folding section

1. the main motor is VFD speed adjustment; without noise, flexible speed adjustment, stability;

2. imported transportation belts;

3. stainless steel glue wheel;

4. there are paperboard and creasing correction devices;

5. paperboard specification: max. 1200X2400mm, min. 300X800mm;

6. high advanced edge alignment device, servo motor drive, PLC control, having patent right;

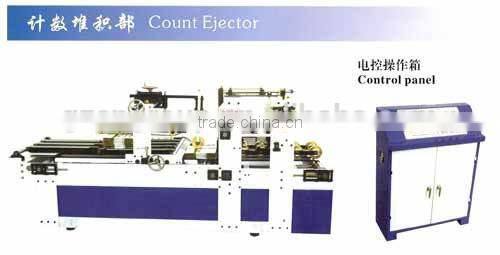

C.Count and ejector

1. PLC and touch screen digital control, can input parameters without stopping the machine; automatic counting and stacking;

2. having stacking ordering function;

3. pneumatic counting and stacking;

4. carton delivered by bottom belt and top synchronous pressing belt; pile height: 8-25 pcs of carton sheets;

5. separate VFD stacking speed adjusting 0-140m/min

D. Other parameters

1. dimension: 11500X3200X1800mm;

2. all the electric components are worldwide famous brands like Schneider, Omron, etc

3. all the belts are imported.

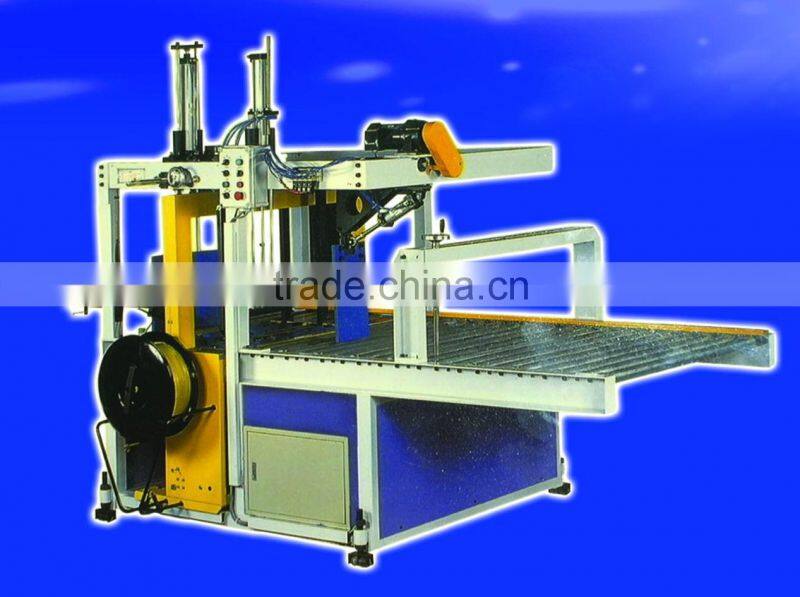

Automatic strapping machine

1. Size: L: 2600mm, W: 1950mm, H: 2200mm
2. Working table height:850mm
3. Strapping speed:5bundles/min (two bundling), 9bundles/min (one bundling)
4. PP belt: 5mm (Germany technology)
5. Paperboard size: min. 300X800mm, max. 1400X2800mm
6. Powder: 380V/50Hz ,2KW
7. Air pressure: 0.5MPa*0.3m²/min

Installation, commissioning and training:

the manufacturer can dispatch one of his engineers to do these; and the buyer should bear all his costs like int’l flight tickets, hotel, food, traffic, etc.
